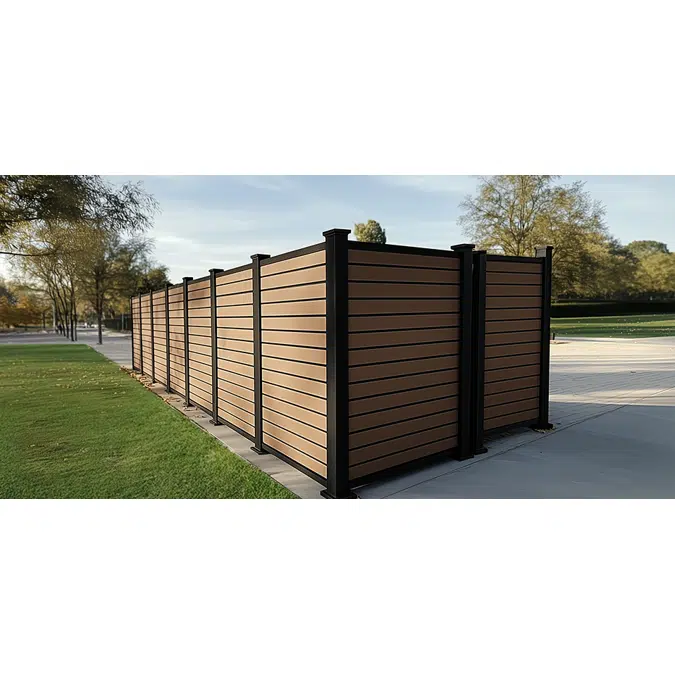

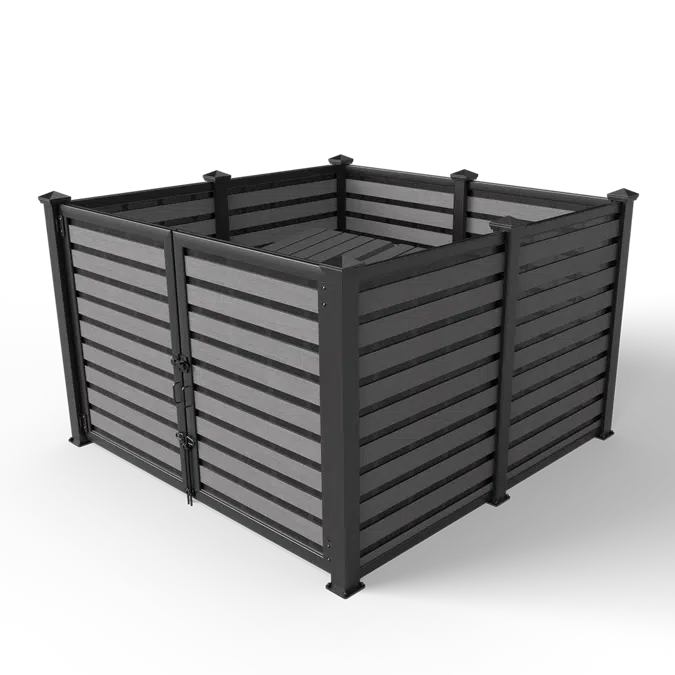

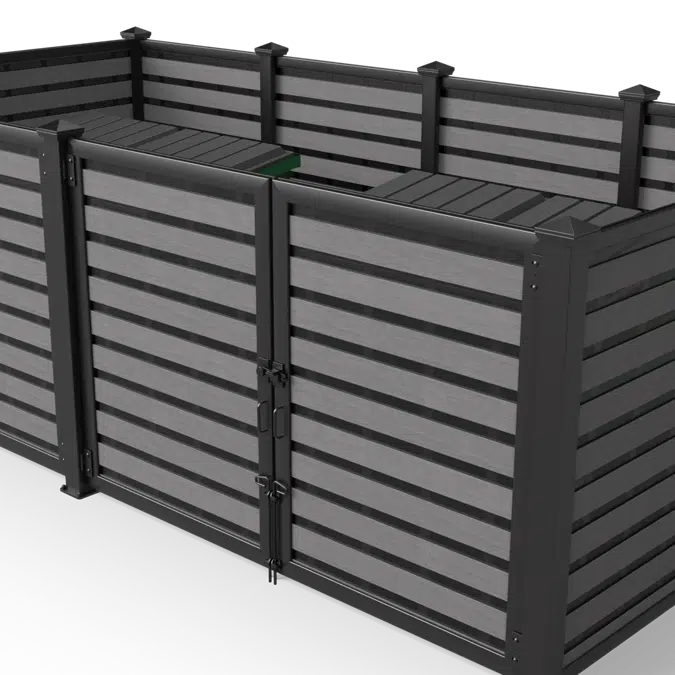

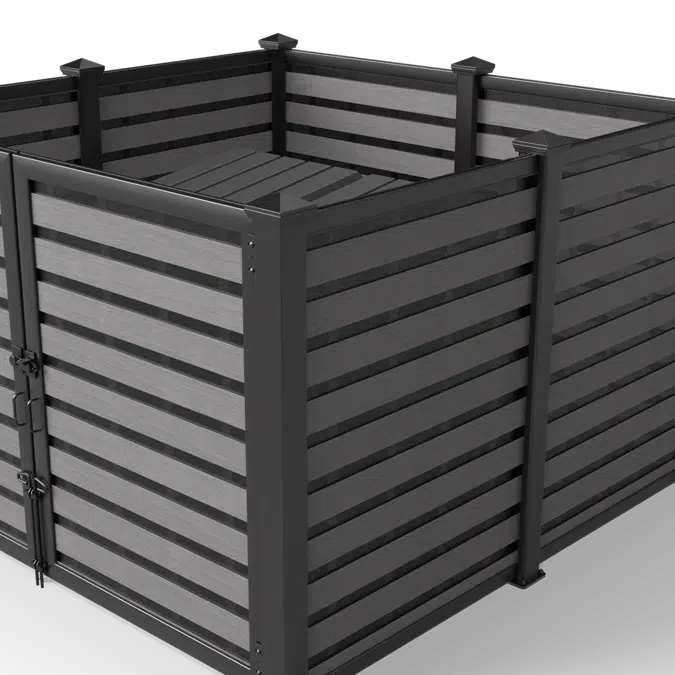

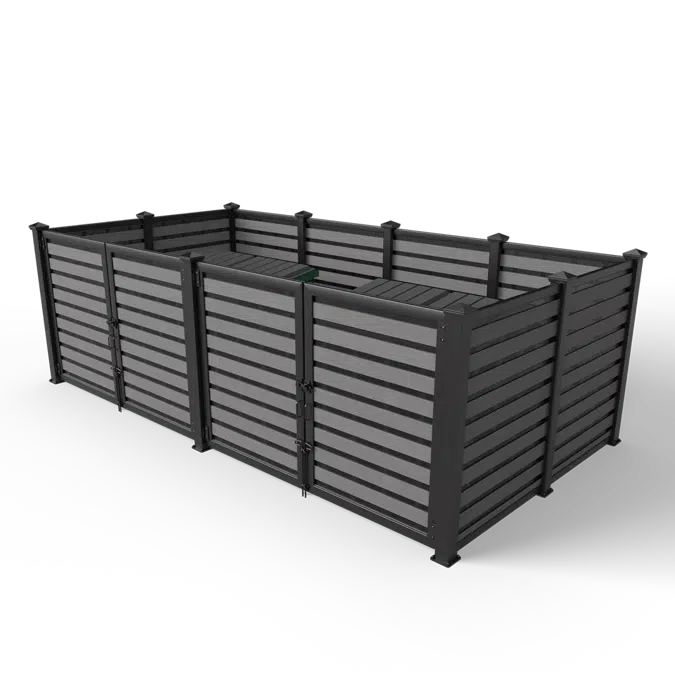

Ventilated Plankwall Open Top Enclosure

Covrit® Ventilated PVC PlankWall Waste & Dumpster Enclosure

Designed for site applications requiring airflow, heat dissipation, and odor control, the Covrit® Ventilated PVC PlankWall Enclosure by CityScapes combines continuous visual screening with pre-engineered ventilation.

Featuring 1" thick 100% cellular PVC planks perforated with a precision 1/8" hole pattern (23% open visual area) and structurally reinforced with 2 1/2" extruded aluminum wide stiffeners, this heavy-duty enclosure allows natural air movement while completely obscuring commercial dumpsters, compactors, and utility equipment from view.

Key Performance & Architectural Features

• Engineered Ventilation & Odor Control: Features 1/8” diameter perforations on 1/4” staggered centers yielding a 23% open area, providing essential airflow for heat dissipation, gas evacuation, and passive odor reduction without sacrificing visual privacy.
• Reduced Wind Loads: Perforated plank geometry permits airflow through the wall assembly, reducing wind pressure and overturning force on post footings and site foundations.
• Enhanced Structural Rigidity: Heavy-duty 2 1/2" extruded aluminum wide stiffeners deliver exceptional flexural strength and panel stability across large spans and high-wind exposures.
• Maintenance-Free Woodgrain Infill: Embossed single- or double-sided woodgrain textures provide the warm appearance of real timber without the warping, rotting, sealing, or painting associated with natural wood.
• Impervious Cellular PVC: Solid 1" thick cellular PVC construction is non-porous, highly resistant to stains, mold, mildew, and harsh cleaning chemicals during dumpster pad washdowns.
• Heights Up to 14 Feet: Scalable wall heights up to 14' easily meet strict municipal screening codes for commercial waste enclosures, utility yards, and mechanical equipment screens.
