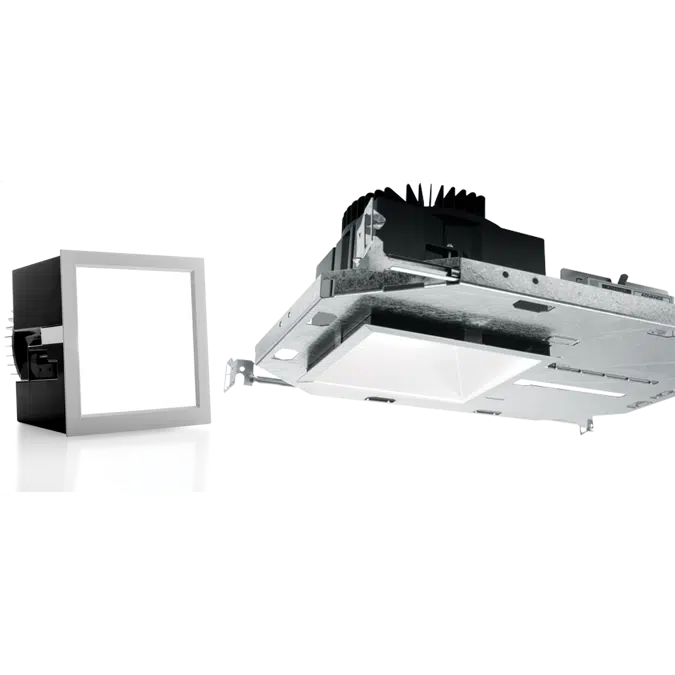

6DS 6″ DOWNLIGHT – SQUARE

FEATURES

Wide range of lumen options for general illumination
Beam angles ranging from 25º narrow to 65º wide for tailored performance
Square shape accentuates architectural styles
New construction mounting pan, IC-rated, or pan-less remodel kit available
Open reflector with seven finishes complements any interior style
Die-cast trim choices include flush, regressed or angled lens
Contemporary design provides glare-free illumination for a soft ceiling appearance
Fully room-side accessible
Title 24 | JA8 compliant
Spring clip retention system eliminates trim sag
Easily adjust mounting arms below ceiling to adapt to a range of ceiling thicknesses
Low UGR meets LEED and WELL requirements
Support human-centric design with adaptive, individualized lighting using tunable white light
Mimic the comfortable, welcoming glow of incandescent with warm-dimming technology
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Voce di capitolato

Housing	Die-cast aluminum trim housing with forged aluminum heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
Open Reflector	Low-iridescent anodized aluminum with top diffuser.
Lensed Trim	Die-cast aluminum frame with micro-prismatic, acrylic lens.
Electrical	High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
Mounting	Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L50 - L100 lumen packages.
Listings	• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation. • Suitable for wet location under covered ceiling when specified with WET/CC option. • IP65 rated trim when specified with IP option. • IC-rated for direct contact with insulation when specified with I Mounting Type. • City of Chicago Environmental Air approved when specified with CP option. • Complies with ASTM-E283 when specified with ATH option. • RoHS compliant. • Title 24 (JA8) compliant in select configurations, see www.cacertappliances.energy.ca.gov. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american.
Warranty	5-year limited warranty, see details

Specifiche tecniche

Rif. Unico6ds-downlight-square
Famiglia di prodottoIndoor Luminaires
Gruppo di famigliaDownlights
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-01-03
Numero di versione1

Links

Link al Prodottohttps://hew.com/products/6DS
Istruzioni di installazionehttps://hew.com/instruction/4-6-inch-downlight_instructions.pdf
Certificazione di Prodottohttps://hew.com/specifications/6DS_led.pdf

Relativo a

Materiale principaleMetallo
Materiale secondarioVetro
Progettato inStati Uniti
Prodotto inStati Uniti

Classificazioni

Categoria BIMobjectIlluminazione - Illuminazione - Soffitto
Clasificazione IFCApparecchio a luce
Codice Uniclass 2015EF_70_80
Descrizione Uniclass 2015Lighting
Codice CSI MasterFormat 201426 51 13
Titolo CSI MasterFormat 2014Interior Lighting Fixtures, Lamps, And Ballasts
Numero OmniClass23-35 47 11
Titolo OmniClassLighting Fixtures
