Large Gated Cableway up to 30 m | Playground Equipment | Riding Equipment

Technical information

Equipment made of natural mountain larch

Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced

Pendulum seat
Pendulum seat with a large rubber surface. Soft, protective edge and steel insert

Swing joint
Drop-forged, hot-dip galvanised swing joint with sintered bush and integrated swivel

Interlocking
Interlocking connection, with milled metal rings or serrated disc dowels, to reinforce the bolt connection under high loads transverse to the grain direction of the wood

Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary

Large gated cableway
The large gated cableway covers the required safety distances. The cableway carriage comes to a smooth stop due to the difference in height of the gates and the cable slack

Tensioning device
Tensioning device enables one person to release and re-tension. Large winch radius and anti-kink function protect the rope

Cableway carriage
Our cableway carriage is designed as a sandwich construction. The encapsulated running mechanism ensures quiet operation. The installation of the carriage is possible without dismantling the rope

Special steel cable
High density steel cable made of high-strength and hot-dip galvanized wire. Stable in length, durable and allows a smooth ride of the cableway carriage

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel

Chains
Chains made of hot-dip galvanized steel (1.4301 / 1.4571 at extra charge) welded before galvanising, short-linked, without eyelets on the connecting parts, easy to exchange and shorten

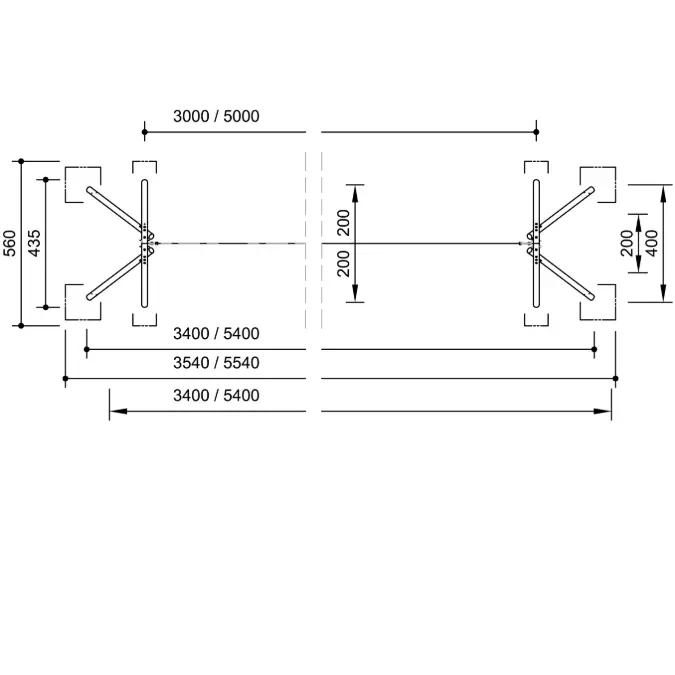

Dimensions
(small deviations possible)

Height: 3.55 m
Length: 34 / 54 m
Width: 4.35 m
Cable height: 2.75 m
Cable length: 30 / 50 m
Weight: 720 kg

Installation information

Surfacing requirements
Corresponding to a fall height of ≤ 1.00 m

Foundations
4 items 120 x 120 x 50 cm
Excavation depth 70 cm
4 items 80 x 80 x 50 cm
Excavation depth 70 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.
