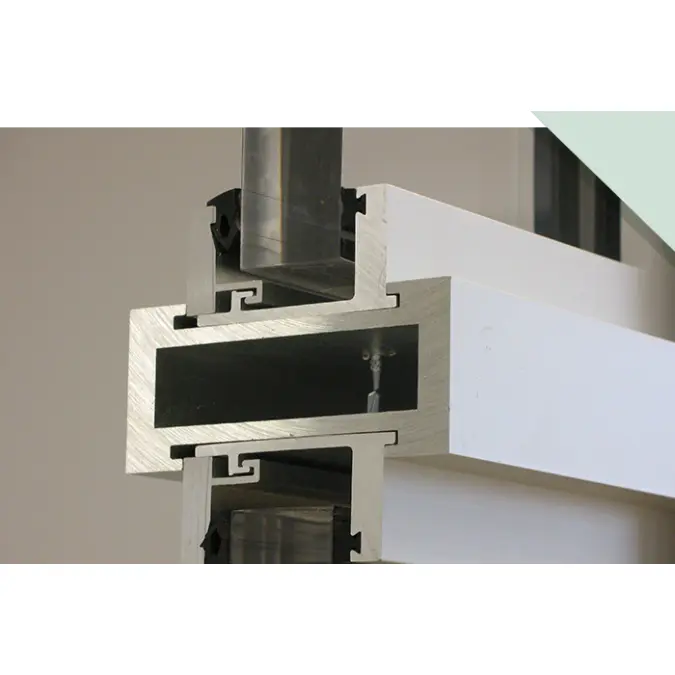

Rated Tube & Two-Piece U-Channel (Level 3)

The BL 1.75 Framing System can house a wide range of thicknesses when it comes to BR Glazing. The framing has a wall thickness of 3/4" thick 6061-T6 aluminum alloy, which gives this framing and channel a UL Testing Rating of Level 3. This framing system can be used in interior or exterior applications.

OPTIONS

• Glazing 3/4" to 1 9/16" thick
• Clear anodized finish
• Dark bronze anodized finish
• Tube is 4" wide x 3 1/4" tall
• Channel is 2 1/2" wide x 3 1/4" tall
• Other custom coating options are available upon inquiry.

RATINGS

• U.L. Level 3 - .44 Mag (3 shots)

STANDARDS

• UL 752 Standard for Bullet Resistant Materials
• ASTM B209 Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate
• ASTM B221 Standard Specification for Aluminum and Aluminum Alloy Extruded Bars, Rods, Wires, Profiles, and Tubes.
