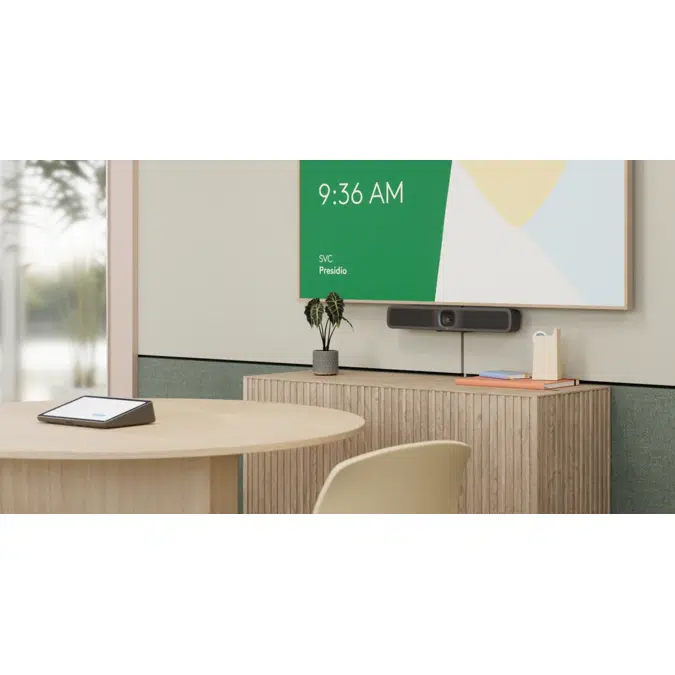

MeetUp 2 - Small‑Room Video Conferencing Bar

Upgrade your small meeting rooms with MeetUp 2, a USB conference camera for small spaces powered by AI features that simplify the meeting experience for both employees and IT.

Voce di capitolato

Part Number
- Graphite : 960-001691
- TAA Compliant : 960-001885
DimensionsHeight: 73.3 mmWidth: 469.2 mmDepth: 73 mmWeight: 1.8 kgTechnical SpecificationsOverview
- Built-in Components
- 6 DMIC microphone array
- Digital PTZ camera
- 1 full range ported speaker
- Cable management & retention system
- Multi-mount
- Logitech CollabOS platform
- Logitech RightSight 2
- Logitech RightSound 2
General Specifications
- Enclosure: All-in-one enclosure
- Device Management: Logitech Sync
- Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
- Display Resolution: 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
- RoomMate Compatibility: Not compatible with Logitech RoomMate, MeetUp 2 can be deployed in PC and BYOD mode only.
Camera
- Digital pan: ±48° at 4x zoom
- Digital Tilt: ±32° at 4x zoom
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80°
- Resolution: 4K
Speakers
- Driver: 55 mm with bass reflex enclosure and patented suspension design
- Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
- Rated Power: 8W THD at 1W, 1kHz : <2%
- Speaker Sampling Rate: 48KHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: -36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48 kHz
- Pickup Range: Up to 7m
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
Interfaces
- HDMI Out: 1
- HDMI In: 1
- USB: 1 x Type C USB 3.1
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac/ax
- Bluetooth: Bluetooth® Low Energy
Power and Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 2.1A
- Power Supply Dimensions: 114 x 47 mm x 32.3 mm
- DC Cable: 3 m
- USB C to USB C 2.0 Cable: 3 m
Environmental
- Operating temperature: 0 to 40°C
- Storage temperature: -25-70°C
- Humidity: 10 to 90%
Security
- File Based Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
- Physical Security: Kensington security slot
Warranty Information2-Year Limited Hardware Warranty
1-Year and 3-Year Extended Warranty available for purchase
