Logitech Tap - Touch Control Panel

Part Number

• 939-001950

Dimensions

Height: 2.28 in (58 mm)

Width: 9.6 in (244 mm)

Depth: 7.0 in (179 mm)

Weight: 2.76 lbs (1.25 kg)

Touch Screen

• 10.1” diagonal screen with 14° display angle
• Oleophobic and anti-glare coating
• 1280 x 800 resolution

Technical Specifications

General Specifications

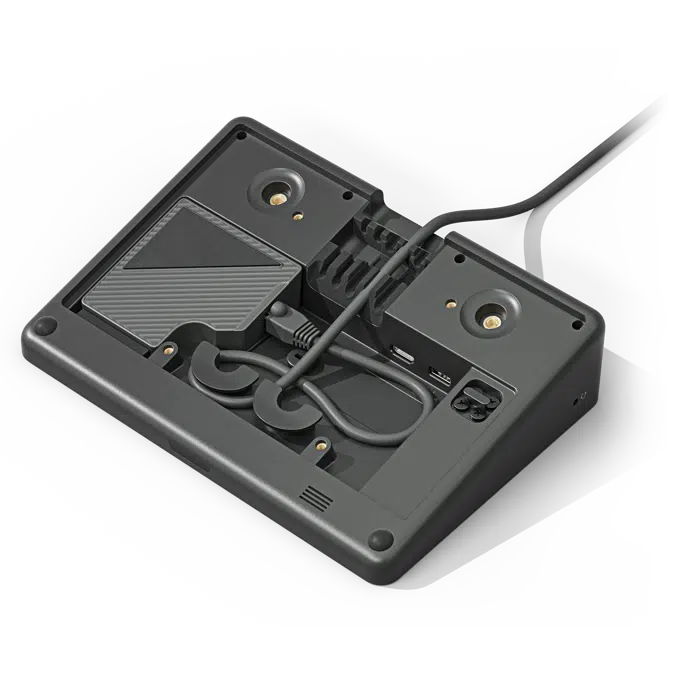

• Internal cable retention and strain relief system
• Integrated ultrasonic speaker
• Integrated PIR Motion Sensor
• 3.94 in x 3.94 in (100mm x 100mm) VESA FDMI (Flat Display Mounting Interface)
• Kensington Lock slots (2)
• Cat5e or higher cables, combined maximum length: 131 ft (40 m)

COMPATIBILITY AND CERTIFICATIONS

• Logitech Tap is certified or compatible as a touch controller for video conferencing room solutions
  • Google Meet
  • Microsoft Teams Rooms on Windows
  • Zoom Rooms
• For the latest compatibility information, see logitech.com/support/tap-compatibility

DisplayLink Plug and Display™

• Tap connects via USB as an additional display for supported operating systems, including Windows 10 and ChromeOS

Optional Accessories

• Table Mount
• Riser Mount
• Wall Mount

Warranty Information

Standard: 2-year limited hardware warranty included.

Extended: Additional one-year extended warranty available at the time of hardware purchase.

Contact your reseller for availability.

California Warnings

• WARNING: Proposition 65 Warning
