Hurricane Louver - 9" Deep - 37 Degree J-Blade with Vertical Blade Rear Section - Extruded Aluminum - EFJ-937

Extruded Aluminum Louver
9" Deep - 37 Degree J-Blade with Vertical Blade Rear Section

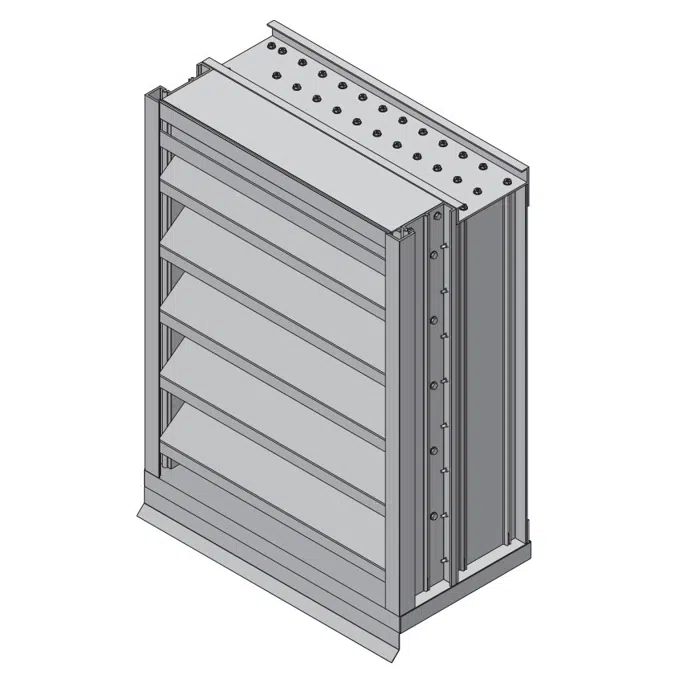

The EFJ-937 dual-module louver is engineered and tested to withstand extreme loads, debris impact, and cyclic fatigue associated with the severe weather effects of hurricanes. The front (exterior) side of the louver features horizontal J-style blades for a pleasing architectural appearance. The interior side features vertical chevron blades which provide superior resistance to wind-driven rain.

Voce di capitolato

Standard Construction
Material: Mill finish extruded aluminum.
Frames: 9" deep x 0.125" thick (232 x 3) channel.
Blades:
Front: 37^o x 0.081" (2.1) thick horizontal J-style.
Back: 0.060" (1.5) thick vertical chevron style.
Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.
Mullion: Visible.
Minimum Size: 12" x 12" (305 x 305)
Maximum Size:
Single Section: 60" x 120" (1524 x 3048)
Multiple Section: Unlimited width x 120" (3048)

Ratings
Free Area: 8.6 ft² (0.80 m²)
Performance @ Beginning Point of Water Penetration
Free Area Velocity: 1250 fpm (6.35 m/s)
Air Volume Delivered: 10755 cfm (5.09 m³/s)
Pressure Loss: 0.48 in. wg. (121 Pa)
Velocity @ 0.15 in. wg. Pressure Loss: 705 fpm (3.58 m/s)
Design Load: 130 psf
AMCA 540 and 550 Listed
AMCA Certified for Water Penetration, Air Performance and Wind-Driven Rain

Specifiche tecniche

Rif. UnicoHurricane-Louver-9-Deep-37-Degree-J-Blade-with-Vertical-Blade-Rear-Section-Extruded-Aluminum-EFJ-937
Famiglia di prodottoHVAC
Gruppo di famigliaLouvers and Penthouses
TipoOggetto (oggetto singolo)
Data di pubblicazione2024-07-16
Numero di versione1

Links

Link al Prodottohttps://www.pottorff.com/product/details/371

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Canalizzazione
Codice Uniclass 2015Pr_30_59_48
Descrizione Uniclass 2015Louvres and components
Codice CSI MasterFormat 201408 91 00
Titolo CSI MasterFormat 2014Louvers
Numero OmniClass23-33 29 31
Titolo OmniClassLouvre Dampers
