Pergolas & AAS Patio roofs
| Unique ref.: | PS_414P-Bio |
|---|---|
| Produttore: | Profils Systèmes |
| Famiglia prodotto: | Pergola&Roof |
| Gruppo prodotto: | Pergola Bioclimatic |
| Data di pubblicazione: | 2018-02-13 |
| Numero edizione: | 1 |
| Tipo: | Oggetto (oggetto singolo) |
Downloads

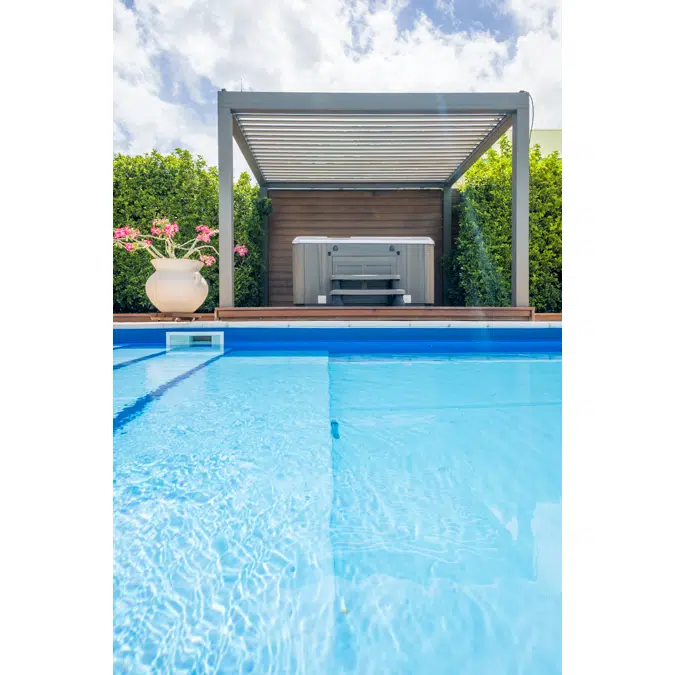

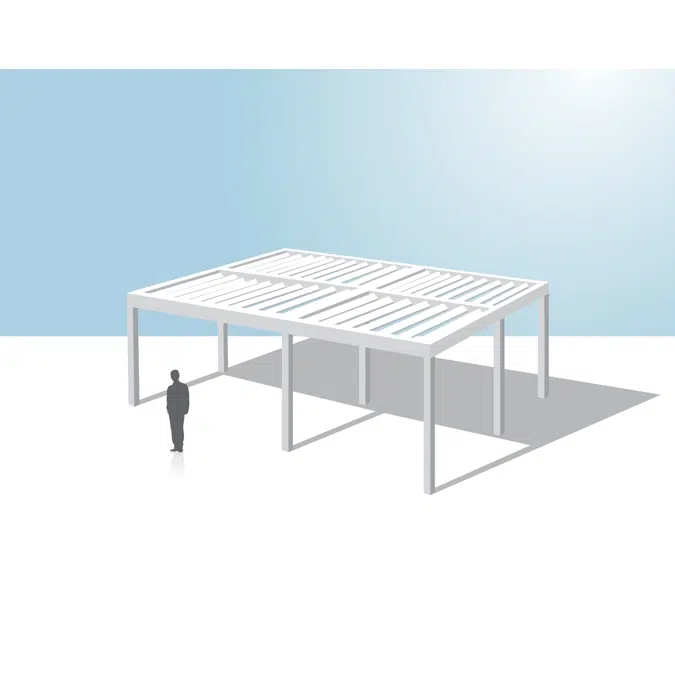

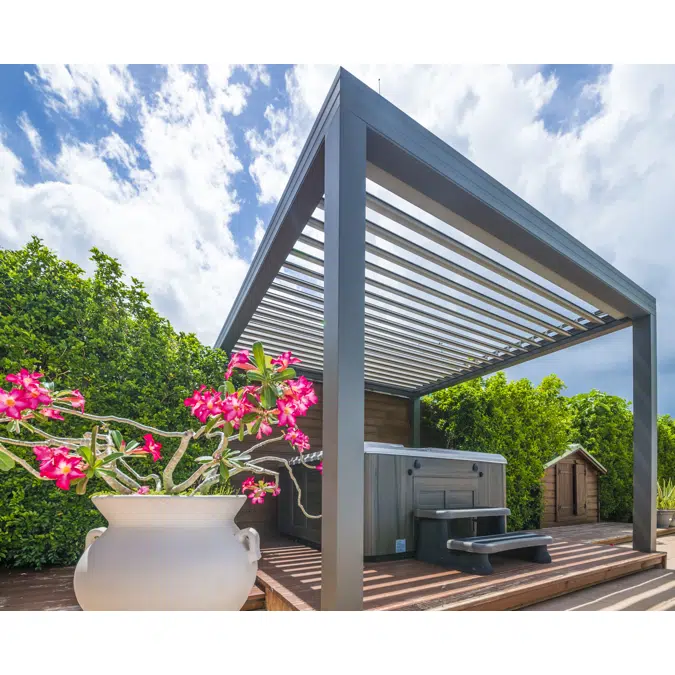

Profils Systèmes has developed a new system of profiles for the creation of design spaces of type Pergolas & AAS Patio roofs.
The rotation of its slats ensures sun protection and natural ventilation, the solar gains are thus
optimized. High mechanical strength and perfectly waterproof WALLIS & OUTDOOR® offers a optimum thermal comfort and use.
Its range up to 7 meters allows large dimensions and many configurations thanks to its corner modules, offsets posts.
Large sizes :
• Up to 7000x4500mm self-standing with concealed fastening
• Up to 5000x5000mm with tubular slats
• Max height 3000mm
• Trapezoid shapes
Many possible configurations :
• Wall fixing
• Self standing
• Between walls
Posts :
• 135x135mm Aluminium posts invisible fixtures

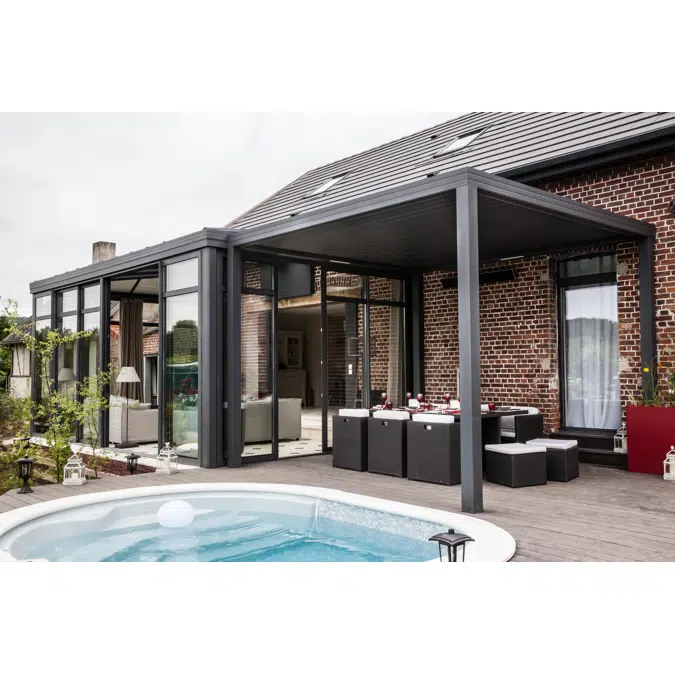

• 105x105mm aluminium posts (AAS and patio roofs of lean-to)
• Offset posts
Blades :
• Extruded aluminium rotating blades, 100% recyclable 6060 alloy
• 135° slat adjustment for modulating the sun’s rays and the ventilation fow
Weather Proofing :
• Totally weatherproof in closed position
• Water run-off via edge gutter with rainwater downpipe in any chosen corner
• Maximum snow load : 90 kg/m2
• Floor plate or embedded fastenin
Options :
• Blinds : glazed or opaque doors, fixed or sliding ; blinds ; ZipSCREEN solar protection
• Climate rain detector ; wind sensor for anti-lift-off in strong winds ; temperature sensor in the central control unit to protect against snow and ice
• Heating
• Mist cooler
• LED Lighting
| Prodotto url: | https://www.profils-systemes.com/menuiserie-aluminium/pergolas-alu-toiture... |
|---|---|
| Istruzioni di installazione: | |
| COBie Product Data Sheet: | |
| Certificazione di prodotto: | |
| Descrizione tecnica: | https://www.profils-systemes.com/menuiserie-aluminium/pergolas-alu-toiture... |
| Video di istruzioni: | |
| Codice EAN: |
Il QR code include il link sottostante e potrà essere scannerizzato sia da smartphone o tablet Android che Apple
https://www.bimobject.com/it/profils-systemes/product/ps_414p-bio
| Materiale principale: | Aluminium |
|---|---|
| Materiale secondario: | |
| Progettato in: | France |
| Prodotto in: | France |
| Categoria BIMobject: | Landscaping - Outdoor Furniture |
|---|---|
| Classificazione IFC: | Object |
| Uniclass 1.4 Codice: | L4211 |
| Uniclass 1.4 Descrizione: | Canopies |
| Uniclass 2.0 Codice: | SS-25-50-45-10 |
| Uniclass 2.0 Descrizione: | Canopy Systems |
| Uniclass 2015 Codice: | Ss_25_50_45_10 |
| Uniclass 2015 Descrizione: | Canopy systems |
| NBS Reference Codice: | 25-50-45-10 |
| NBS Reference Descrizione: | Canopy Systems |
| CSI MasterFormat 2014 Code: | 10 73 16 |
| CSI MasterFormat 2014 Title: | Canopies |
| Numero OmniClass: | 23-17 21 11 11 13 |
| Titolo OmniClass: | Louvered Canopies |
| CSI UniFormat II Code: | B1020 |
| CSI UniFormat II Title: | Roof Construction |
Questo prodotto è disponibile in:
Europe
- France
BIMobject SEEK Properties
Landscaping - Outdoor Furniture
| Nome | Valore |
|---|---|
| Application | Outdoor |
| Depth | 4500 mm — 5000 mm |
| Height | 1 mm — 3000 mm |
| Length | 5000 mm — 7000 mm |
| Material | Aluminium |
