Deck Mounted Chrome Plated Gas Valve

Deck Mounted Gas Valve

Ideal for any school or professional laboratory. Deliver a steady and reliable gas supply for up to 4 stations or instruments.

Standard sizes
Widths: 5 1/8", 8 3/8"
Depths: 2", 5 1/8", 8 3/8"
Heights: 3 1/2"

Ideal for use in any educational, or professional lab setting

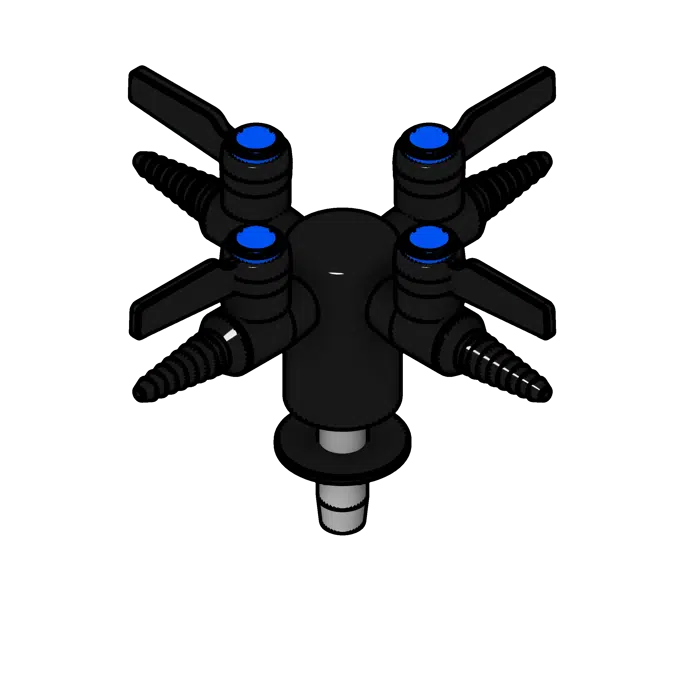

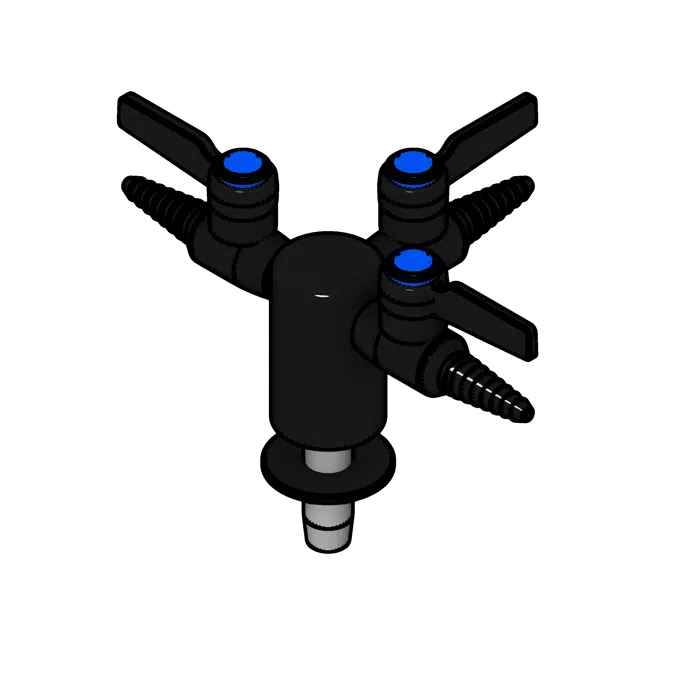

Choose between 2, 3, or 4 outlets
90° and 180° options available for 2 outlet configuration
Easily mounts to countertop with 3/8" IPS female inlet

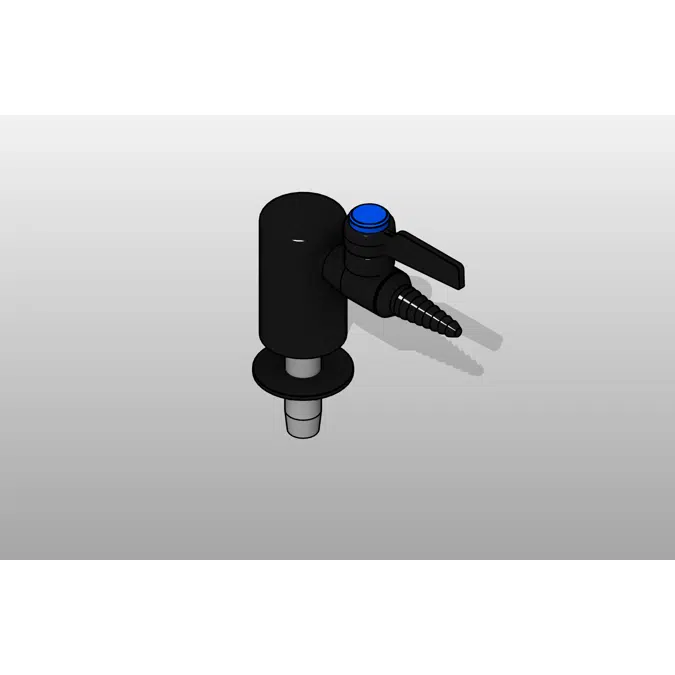

This versatile gas valve family is able to add or subtract gas outlets based on your needs. Select a type to choose between 1 outlet, 2 outputs at 90° and 180°, 3, or even 4 outlet units. This family is face-based and can be applied directly to your desired counter top. Integral, straight, serrated hose attachment is fully modeled for render-ready projects.

Voce di capitolato

Construction
- Deck mounted turret base with laboratory ball valve(s)
- Non-removable straight seven serrated hose end
- Center of hose end stands 2-1/16" off mounted surface
- Forged brass, chrome plated body and lever handle
- Interior of ball valve made with molded teflon seals
- Convenient colored plastic index disk on handle
Connections
- 3/8" IPS female gas inlet
- Includes 3/8" IPS mounting shank with locknut and washer

Specifiche tecniche

Rif. UnicoSSG_Valve_Gas_Deck_Mounted_CHR
Famiglia di prodottoEducation
Gruppo di famigliaFlex Space, Classroom, Lockers, Casework
TipoOggetto (oggetto singolo)
Data di pubblicazione2021-09-11
Numero di versione1

Links

Link al Prodottohttps://fetchbim.com/product/1249/ssg-valve-gas-deck-mounted-chr
Descrizione Tecnicahttps://app.fetchbim.com/Family/a856fc0a-a2dd-40ba-933b-e0518f9f8024/File/PDF-SpecManual

Relativo a

Materiale principaleCromato

Classificazioni

Categoria BIMobjectImpianto idraulico - Valvole
Clasificazione IFCValvola
Codice CSI MasterFormat 201422 63 00
Titolo CSI MasterFormat 2014Gas Systems for Laboratory and Healthcare Facilities
