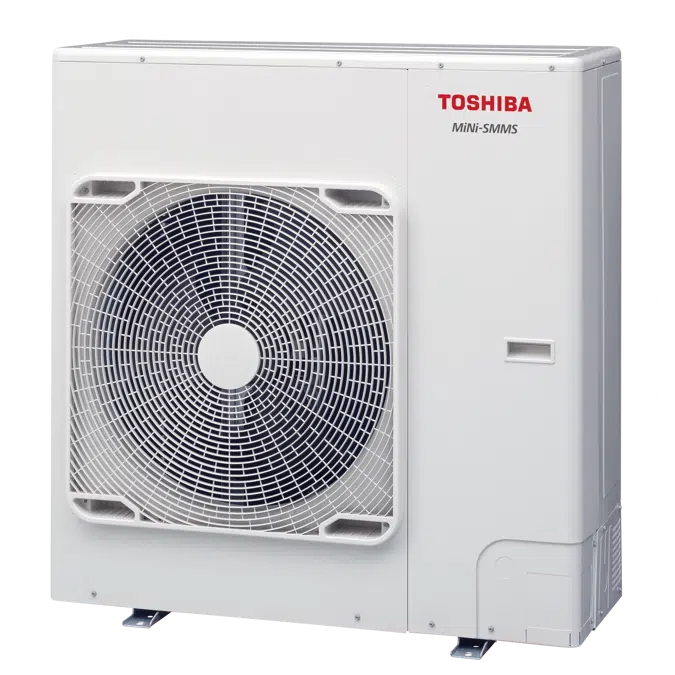

Mini SMMSe monofase mini VRF (outdoor unit) MCY-MHP 04 05 06 04HS-E

MINI VRF SYSTEM IN SINGLE-PHASE HEAT PUMP - The Mini SMMSe is the latest expression of Toshiba technology, appertenent as SMMSe to the e-line of new units with VRF technology for both commercial applications and in applications such as shops, offices and large apartments, where quiet operation and compact size are important features. The result of the extreme attention to customer needs is the high energy efficiency with a COP up to 4.86 for a limited consumption, and the pipes up to 180 m for easy application in any type of application. The absolute flexibility of the system is completed by the wide range of indoor units that can be connected: 13 families for more than 100 models. The Mini SMMSe can be easily installed even in small spaces.

Voce di capitolato

Technical characteristics: - Available from 4, 5 and 6 HP (from 12.5 kW to 18 kW) with single phase power supply - Applications in heating and cooling - High COP to ensure maximum energy savings. - Possibility to connect up to 13 units on the same circuit - Twin-Rotary DC compressors for high efficiency and complete reliability. - Easy to install: compact and lightweight unit

Specifiche tecniche

Rif. UnicoMiniSMMSe1ph-minivrf1-04-05-06
Famiglia di prodottoHVAC - Business VRF
Gruppo di famigliaOutdoor unit
TipoOggetto (oggetto singolo)
Data di pubblicazione2023-03-02
Numero di versione1
Altezza (mm)1235
Larghezza (mm)990
Profondità (mm)390

Links

Link al Prodottohttps://www.toshibaclima.it/prodotti/business-VRF/unita-esterne/smmse
Istruzioni di installazionehttps://www.toshibaclima.it/prodotti/business-VRF/unita-esterne/smmse
Descrizione Tecnicahttps://www.toshibaclima.it/prodotti/business-VRF/unita-esterne/smmse

Relativo a

Materiale principaleMetallo
Materiale secondarioPlastica
Progettato inItalia
Prodotto inItalia
Peso Netto (Kg)127

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Climatizzazione
Clasificazione IFCBocchettone
Nome UNSPSCAir conditioners
Codice UNSPSC40101701
Codice Uniclass 2015EF_65_80
Descrizione Uniclass 2015Air conditioning
Numero OmniClass23-33 39 00
Titolo OmniClassAir Conditioning Equipment
Codice CSI UniFormat IID30
Titolo CSI UniFormat IIHVAC
