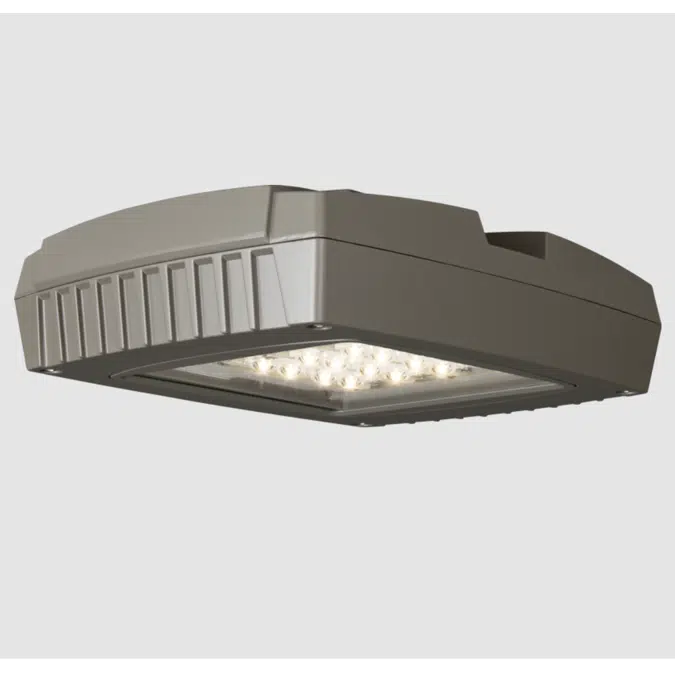

VG1 VOLTAIRE ARCHITECTURAL SURFACE/GARAGE LIGHT

FEATURES

Rugged and durable housing with IP66 rating
Provides security light levels and reduced glare
Quick and easy installation with the hinged two-piece enclosure
Effectively illuminates any garage, canopy and exterior surface or pendant mount application
Achieve multi-level control with optional motion and daylight sensors
Optional wireguard provides added protection
Precise light control with three distributions
Seven standard finish options and a wide selection of custom colors complement the architectural elements of any outdoor environment
IDA Dark-Sky approved to minimize glare, reduce light trespass and help protect night sky
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

사양

Housing	Two-piece hinged die-cast aluminum enclosure.
Thermal Management	Integral die-cast aluminum heat sink and LED module provide passive thermal management. Rated ambient operating temperature -30ºC to 50ºC (L30), -30ºC to 40ºC (L65, L100).
Optical System	Precision, injection- molded, refractive optics available in standard IES distributions. Clear tempered glass lens.
LED Module	ANSI 3000K, 4000K, or 5000K CCT, minimum 70 CRI LEDs.
LED Driver	Class 1 constant-current driver, 0-10V dimming.
Electrical	120-277, 347, and 480 VAC input range; 50-60Hz; power factor >.90; THD <20% at full load. FCC Class A compliant. 10kA/10kV surge protection standard. Quick-disconnect wiring provided. L70 >60,000 hours per IES TM-21. Conduit/ power entry must be sealed to prevent moisture or water intrusion.
Finish	Super durable polyester powder coat bonded to phosphate-free, multi-stage pretreated metal, meets and exceeds AAMA 2604 specifications for outdoor durability.
Mounting	Surface or pendant mount. Maximum weight: 25 lbs.
Listings	• cCSAus certified as luminaire suitable for wet locations. Suitable for dry or damp locations when specified with PM mounting configuration. • IP66 rated. • Meets the American National Standard for Roadway Lighting Equipment – Luminaire Vibration (ANSI C136.31-2001), CT direct surface mounting configuration only. • IDA Dark-Sky approved. • RoHS compliant. • BUG classified per IES TM-15-11. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details

기술 사양

특징 참조vg1-voltairearchitectural-surfacegaragelight
제품군Outdoor Luminaires
제품분류Garage and Canopy
유형개체 (단일 개체)
게시일2026-02-27
에디션 넘버1

링크

제품 URLhttps://hew.com/products/VG1
설치 안내https://hew.com/instruction/vg_instructions.pdf
제품 인증https://hew.com/specifications/VG1_led.pdf
기술 설명https://hew.com/custom-color/cc0036.pdf

관련성

주 재료금속
부 재료유리
설계국가미국
제조국가미국

분류

BIMobject 카테고리조명 - 천장 설치
IFC 분류조명 기구
Uniclass 2015 코드EF_70_80
Uniclass 2015 설명Lighting
CSI 마스터 형식 2014 코드26 56 16
CSI 마스터 형식 2014 제목Parking Lighting
OmniClass 번호23-35 47 11
OmniClass 제목Lighting Fixtures
