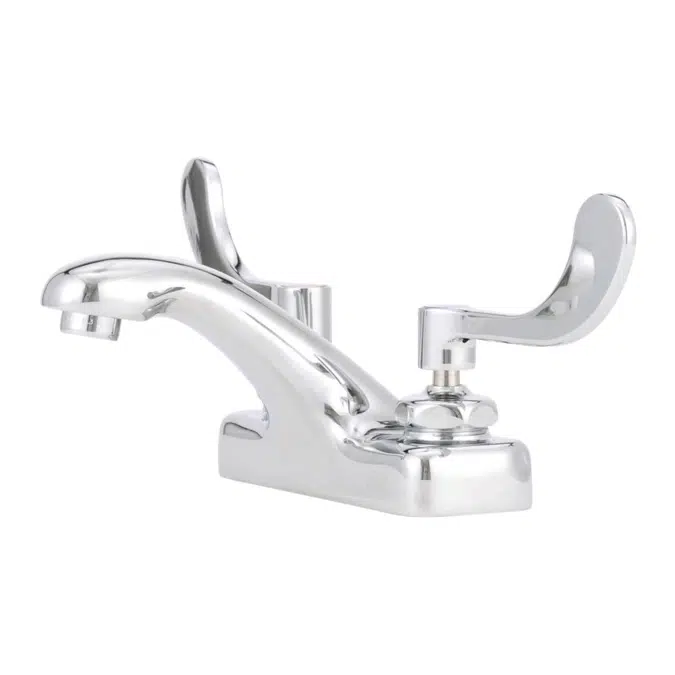

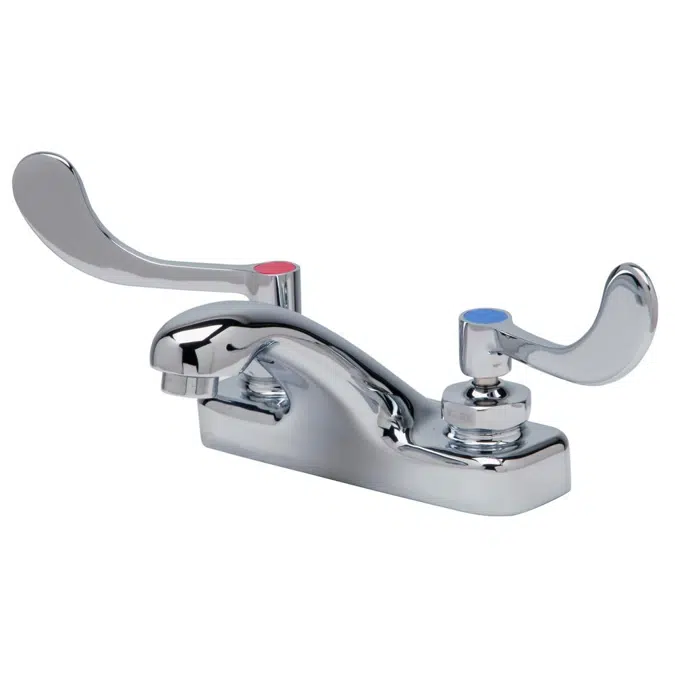

Z81104-XL AquaSpec® 4" Centerset Deck-Mount Lavatory Faucet with 4" Wrist Blade Handles
Z81104-XL AquaSpec® 4" Centerset Deck-Mount Lavatory Faucet with 4" Wrist Blade Handles
Z81104-XL AquaSpec® 4" Centerset Deck-Mount Lavatory Faucet with 4" Wrist Blade Handles
Z81104-XL AquaSpec® 4" Centerset Deck-Mount Lavatory Faucet with 4" Wrist Blade Handles
Z81104-XL AquaSpec® 4" Centerset Deck-Mount Lavatory Faucet with 4" Wrist Blade Handles
    Zurn

    Z81104-XL AquaSpec® 4" Centerset Deck-Mount Lavatory Faucet with 4" Wrist Blade Handles

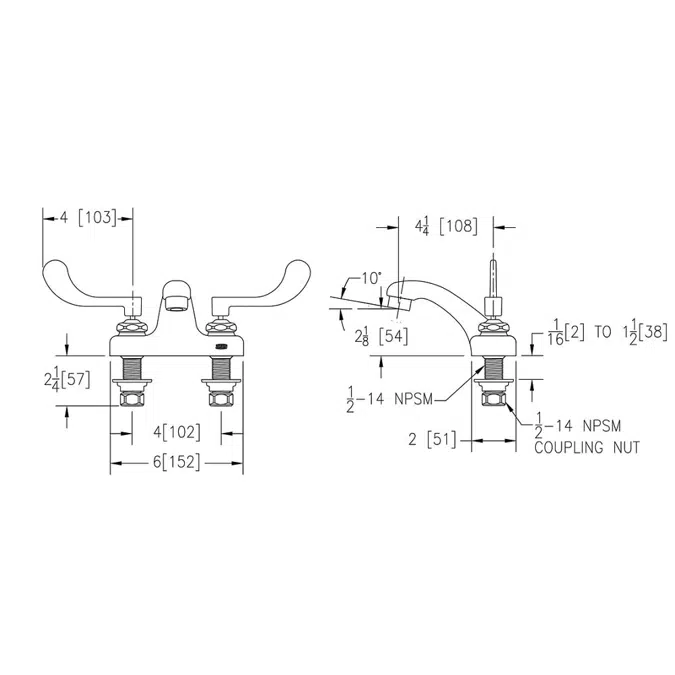

    Polished chrome-plated cast brass faucet body with integral shanks, quarter turn ceramic disc cartridges and a 4” [102mm] long integral cast spout. Unit is furnished with a 2.2 GPM [8.3 L] pressure compensating aerator (complying with ANSI A112.18.1 Standard for flow), 4”[102mm] vandal-resistant color-coded metal wrist blade handles, mounting hardware and 1/2” NPSM coupling nuts for standard lavatory risers. Zurn Lead Free products (-XL) is the line of durable, high quality brass faucets and fixtures that are designed and manufactured to comply with Section 1417 of the Safe Drinking Water Act (SDWA) which mandates the weighted average lead content of no more than 0.25% of the wetted surface.

    Compliance:

    • Massachusetts MA approved
    • ASME A112.18.1/ CSA B125.1
    • NSFStandard372
    • CSA B125.1
    • cUPC
    • IPC listed
    • NPCC listed
    • CEC listed

    Features:

    • Heavy-duty Quarter Turn Ceramic Disc Cartridge
    • Chrome-plated Cast Brass Body With Integral Shank
    • 2-1/2” Vandal-resistant Color-Coded Metal Handles
    Keywords: Lavatory Faucet, Manual Faucet, Auqa Spec, Zurn Aqua Spec, Zurn Manual Faucet

      기술 사양
      • 특징 참조zurn-z81104-xl
      • 제품군AquaSpec Faucet - Manual
      • 제품분류Deck Mount
      • 유형개체 (단일 개체)
      • 게시일2018-04-10
      • 에디션 넘버1
      관련성
      • 주 재료놋쇠
      • 설계국가미국
      분류
      • BIMobject 카테고리위생 - 수도꼭지
      • UNSPSC 이름Table lamp fixture
      • UNSPSC 코드39111510
      • Uniclass 2015 코드Pr_40_20_87
      • Uniclass 2015 설명Taps and water supply outlet fittings
      • CSI 마스터 형식 2014 코드22 42 39
      • CSI 마스터 형식 2014 제목Commercial Faucets, Supplies, and Trim
      • OmniClass 번호23-31 11 00
      • OmniClass 제목Faucets
