AXORVolg

AXOR 3-hole bath mixer basic set rim sBox

Specificatie

Specificatie

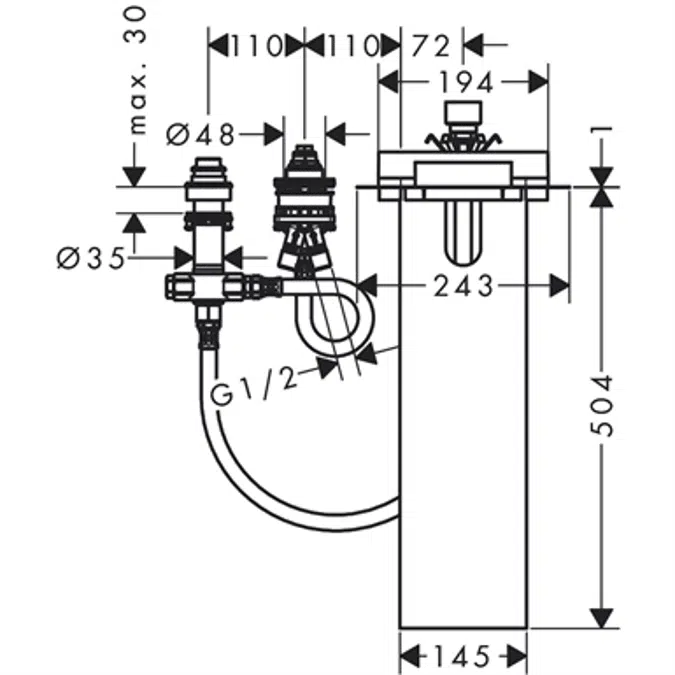

• Surfaces: - 15487180 n.a. Specification: • sBox for quiet, smooth and protected hose guidance • drilling diameter: 35 mm, 50 mm • clamping range: 0 - 30 mm • maximum pull-out length of hand shower: 1,45 m • suitable for suitable for installation on bath rim • connection thread: G ½ • connection hose length: 600 mm • connection dimension: DN15 • bath rim width at least 100 mm • drilling diameter on bath tub: two drilled holes Ø 50/51 mm and connection by sawing out required (consider template)

Technische specificatie

Technische specificatie

• Unieke ref.15487180
• ProductfamilieAXOR
• ProductgroepConcealed Basic set 3-/4- hole bath mixers
• TypeObject (enkelvoudig object)
• Publicatiedatum2019-01-01
• Editienummer1
• Hoogte (mm)626
• Breedte (mm)463
• Diepte (mm)100

Links

Links

• Product-urlhttps://www.axor-design.com/articledetail--15487180
• Technische beschrijvinghttps://www.axor-design.com/de-de/articledetail--15487180.html

Gerelateerd

Gerelateerd

• Ontworpen inDuitsland
• Gefabriceerd inDuitsland
• Nettogewicht (kg)2.8

Classificatie

Classificatie

• Categorie BIMobjectSanitair - Badkamerinstallatie systeem
• IFC-classificatieSanitairaansluiting
• UNSPSC-naamSanitary ware
• UNSPSC-code301815
• Uniclass 2015-codePr_40_20_87_09
• Uniclass 2015-beschrijvingBath taps
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitelResidential Faucets, Supplies, and Trim
• OmniClass-nummer23-31 11 00
• OmniClass-titelFaucets
• CSI UniFormat II-codeD2010
• CSI UniFormat II-titelPlumbing Fixtures
