Ceiling Hatch (Deluxe Type) – CDZ

Deluxe ceiling hatch available in a wide range of variations.

The trim-type frame minimizes gaps, helping to prevent dust and debris from falling through.

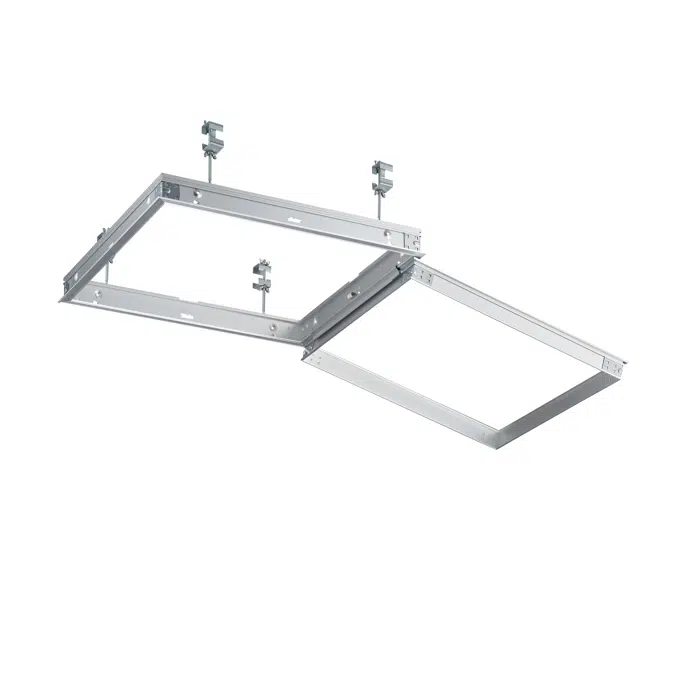

The double-hinge structure provides a large opening area and opening angle.

The inner frame can be mounted on any of the four sides of the outer frame, except for lockable models.

Certified by the Public Buildings Association.

For indoor ceiling use only.

Specificatie

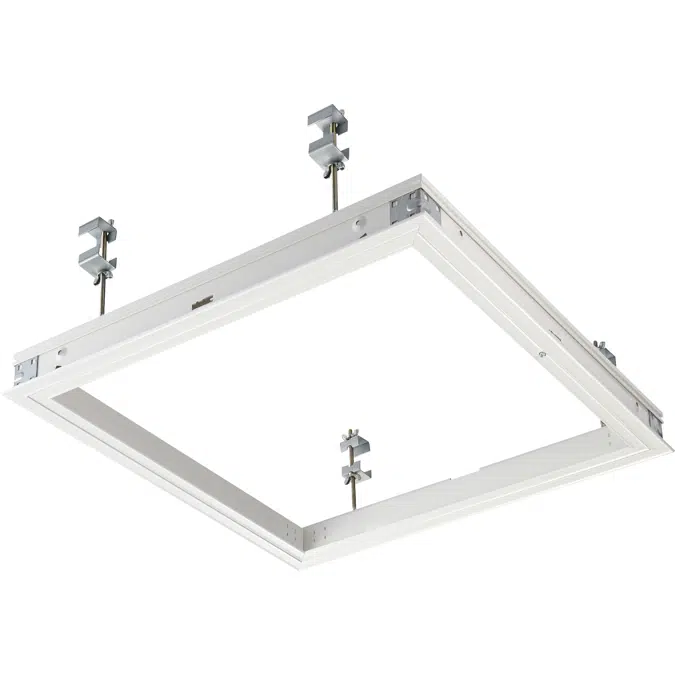

■CDZW30 / CDZW45 / CDZW60
Color: White
Standard Size (Opening Dimensions): 303 × 303 mm / 454 × 454 mm / 606 × 606 mm
　
■CDZW30K / CDZW45K / CDZW60K
Color: White
Type: Lockable
Standard Size (Opening Dimensions): 303 × 303 mm / 454 × 454 mm / 606 × 606 mm
　

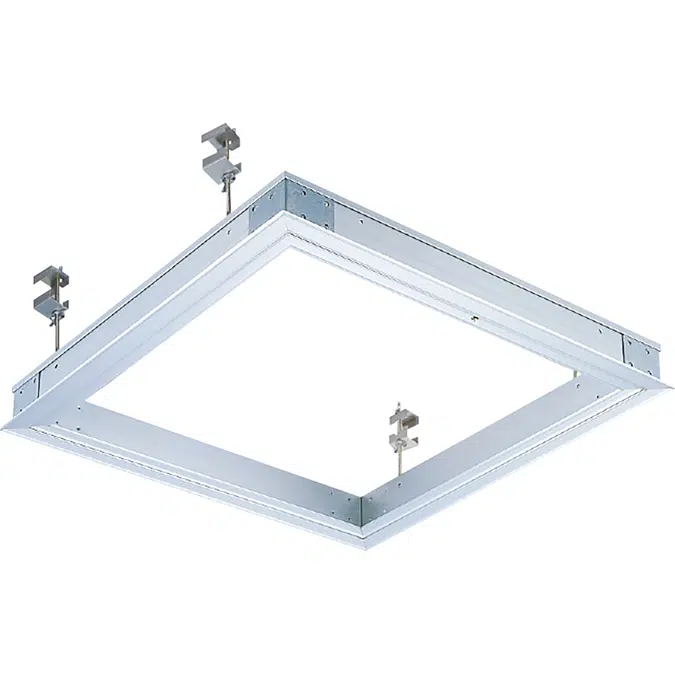

■CDZ20 / CDZ30 / CDZ45 / CDZ60 / CDZ3060
Color: Silver
Standard Size (Opening Dimensions): 203 × 203 mm / 303 × 303 mm / 454 × 454 mm / 606 × 606 mm / 303 × 606 mm
　
■CDZ30K / CDZ45K / CDZ60K / CDZ3060K
Color: Silver
Type: Lockable
Standard Size (Opening Dimensions): 303 × 303 mm / 454 × 454 mm / 606 × 606 mm / 303 × 606 mm
　

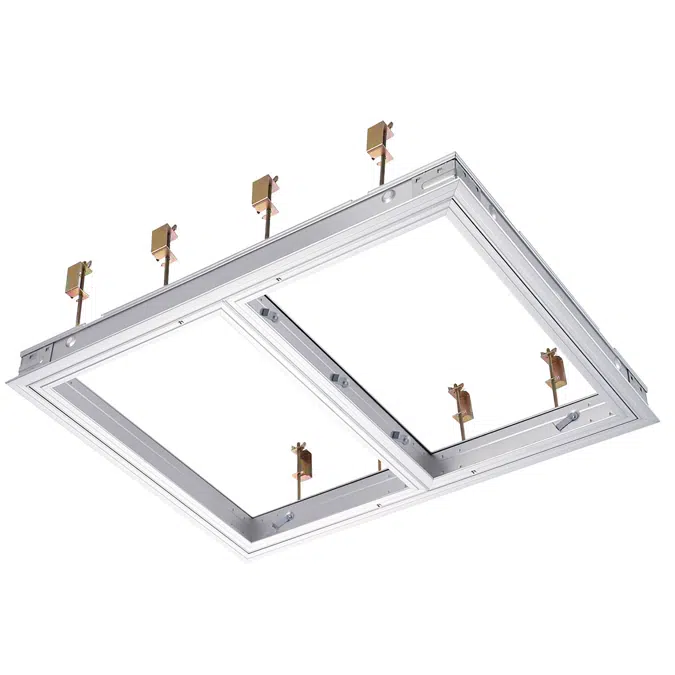

■CDZ90A
Color: Silver
Type: Double Door
Standard Size (Opening Dimensions): 903 × 903 mm
　

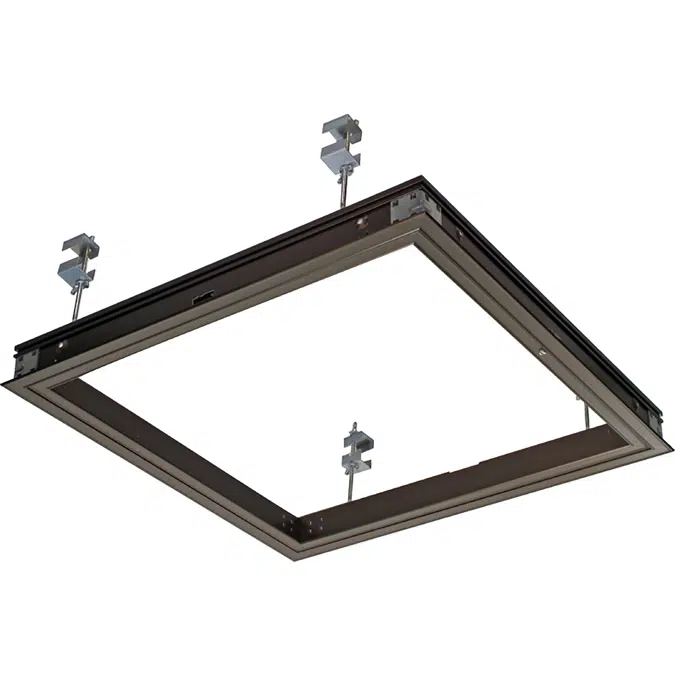

■CDZB30 / CDZB45 / CDZB60
Color: Bronze
Standard Size (Opening Dimensions): 303 × 303 mm / 454 × 454 mm / 606 × 606 mm
　

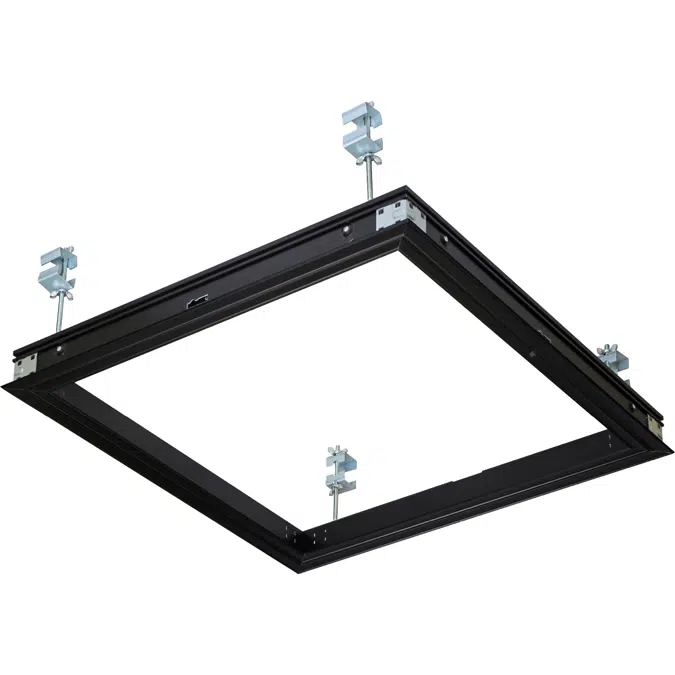

■CDZZ45 / CDZZ60
Color: Black
Standard Size (Opening Dimensions): 454 × 454 mm / 606 × 606 mm
　

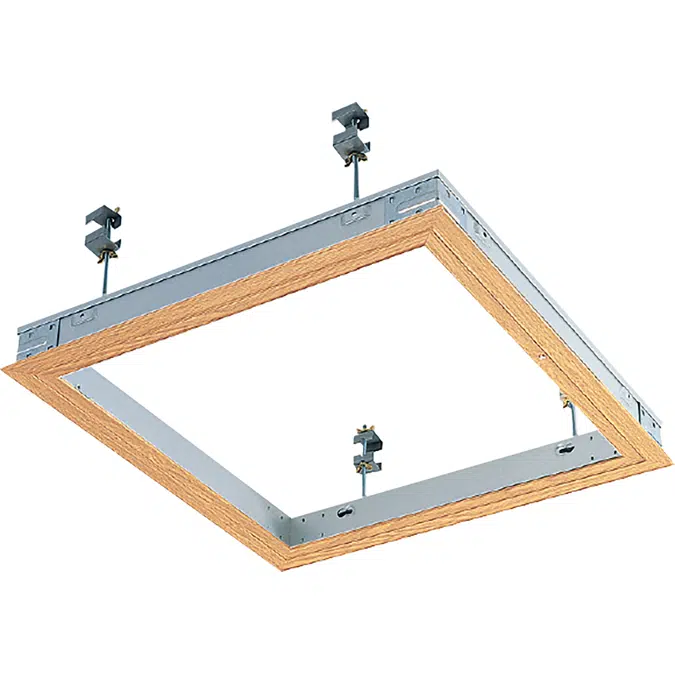

■CDZP45
Finish: Wood Grain
Standard Size (Opening Dimensions): 454 × 454 mm
　

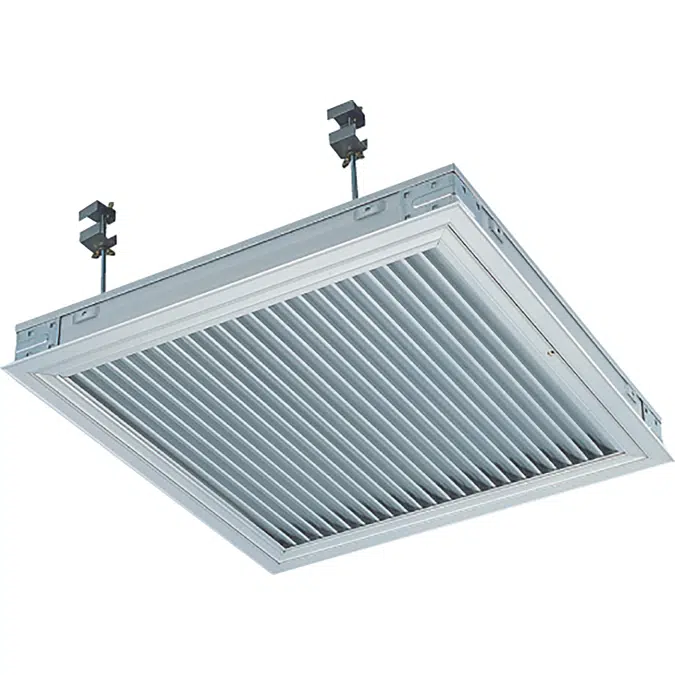

■CDZG45A / CDZG60A
Color: Silver
Type: Ventilation Louver
Standard Size (Opening Dimensions): 454 × 454 mm / 606 × 606 mm
