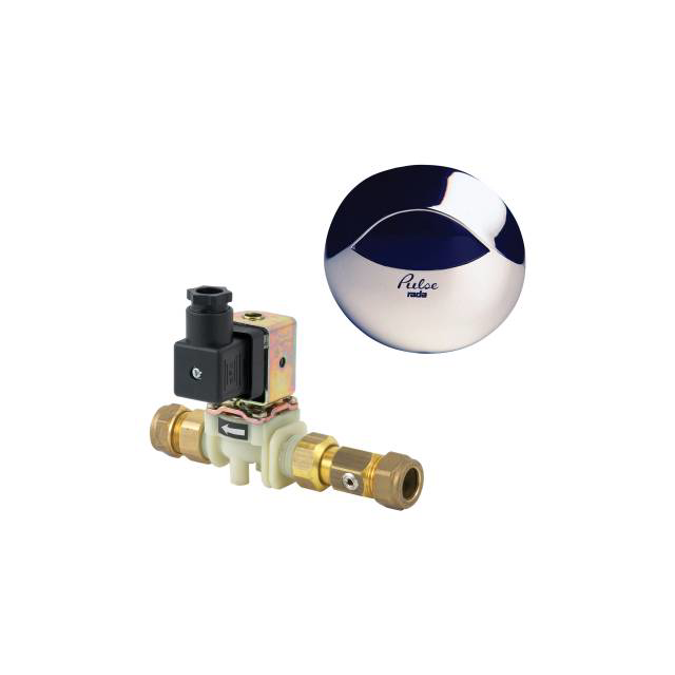

Rada Pulse 122 Operating System

Operating system for individual urinal flushing for use with Rada Pulse Control Box System, featuring non-touch sensor and solenoid valve. Pulse 122 is an operating system for the control of water to a single urinal bowl, incorporating a 'no-touch' sensor and a solenoid valve. The system is designed for use with the Pulse control box and hand held programmer.

Specificatie

Product Reference
Rada Pulse 122 Operating System (1.1495.064)
Accessories
Rada Pulse control box
Rada Pulse hand held programmer
Standard product features
Operation:
• When the sensor is activated, a signal is sent to the Rada Pulse control box, which may provide a pre-flush (where required).
• The control box then waits for a period of inactivity before operating the solenoid valve, allowing water to flow to the outlet.
• The duration of the flow for each outlet can be individually pre-set, via the control box and programmer.
• The solenoid valve is supplied complete with an integral isolator and filter.
Sensor range:
0 - 550 mm.
Materials:
• Wall mounted sensor: Chrome plated durable engineering plastic with shatterproof plastic sensing window.
• Solenoid valve: Fibreglass polyamide body.
Pressure:
Solenoid valve: 0.20 - 10 bar.
Electrical:
• Sensor protection class: IP65.
• Supply voltage: 12V AC + 10% 50/60Hz, via Rada Pulse control box.
Temperature range:
• Operating ambient temperature range: 0–40°C.
• Maximum humidity: 80%.
Accessories:
• Rada Pulse control box.
• Rada Pulse hand held programmer.
