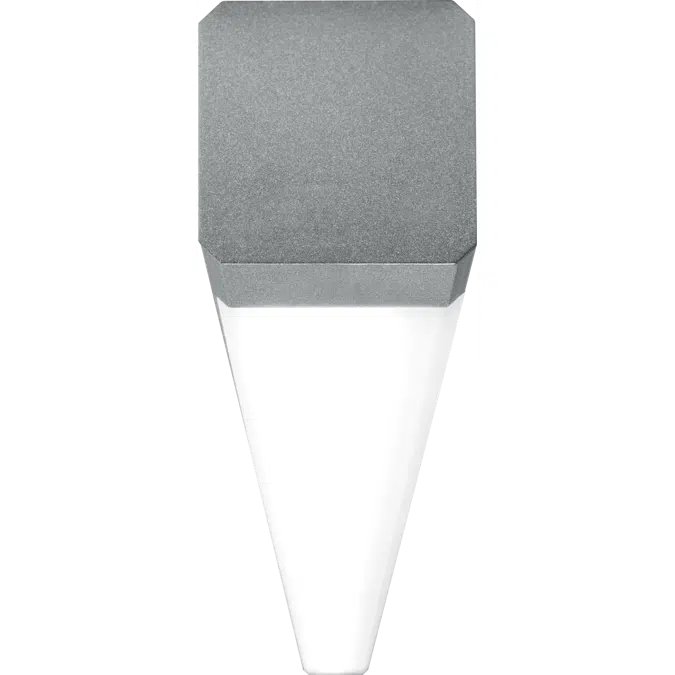

AX2WUD 2″ WALL MOUNT ARCHITECTURAL UP/DOWN
AX2WUD 2″ WALL MOUNT ARCHITECTURAL UP/DOWN

    AX2WUD 2″ WALL MOUNT ARCHITECTURAL UP/DOWN

    FEATURES

    • Sleek, linear, ADA Compliant design incorporates clean lines and slim styling
    • Slightly wrapped lens creates glowing edge and smooth illumination
    • Attractive source of direct lighting for use in offices, hallways, conference rooms and medical facilities
    • Suspended and wall mount styles add design flexibility and continuity
    • 2', 4', and 8' lengths available
    • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
    • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
    • Build America, Buy America and Buy American Act compliant
    • Wireless in-fixture control solutions available
    • Made Right Here® in the USA
      Spesifikasjon
      • Housing

        Extruded aluminum.

        Shielding

        Frosted acrylic lens.

        Finish

        Matte, smooth silver sparkle (ALUM) standard. All other colors default to textured finish. Polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

        Electrical

        High-quality mid-power LED boards. L70 at 60,000 hours per IES TM-21. 50/60 Hz constant current driver. Tunable White products use LEDs of multiple shades of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

        Mounting

        Wall.

        Listings

        • cCSAus certified as luminaire suitable for dry or damp locations.
        • ADA Compliant.
        • Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
        Request certification at hew.com/buy-american.

        Warranty

        5-year limited warranty, see details
      Tekniske spesifikasjoner
      • Unik ref.ax2wud-wallmountarchitecturalupdown
      • ProduktfamilieIndoor Luminaires
      • ProduktgruppeMedical
      • TypeObjekt (enkelt objekt)
      • Utgivelsesdato2025-06-18
      • Utgavenummer1
      Relatert
      • HovedmaterialeMetall
      • Sekundært materialeGlass
      • Designet iUSA
      • Produsert iUSA
      Klassifisering
      • BIMobject kategoriBelysning - Veggmontert
      • IFC-klassifiseringlysarmaturen
      • Uniclass 2015 kodeEF_70_80
      • Uniclass 2015 beskrivelseLighting
      • CSI MasterFormat 2014 kode26 51 13
      • CSI MasterFormat 2014 tittelInterior Lighting Fixtures, Lamps, And Ballasts
      • OmniClass-nummer23-35 47 11
      • OmniClass-tittelLighting Fixtures
