Richter Spielgeräte

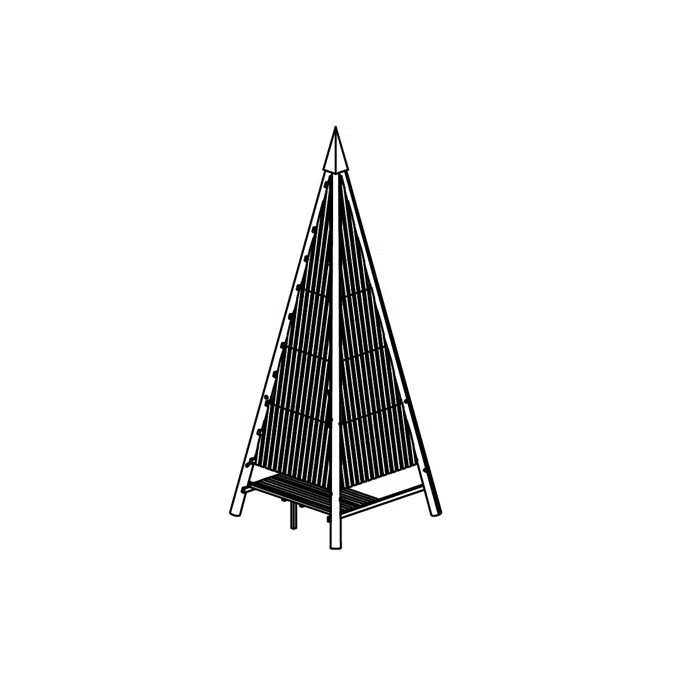

Big Pyramid Tower

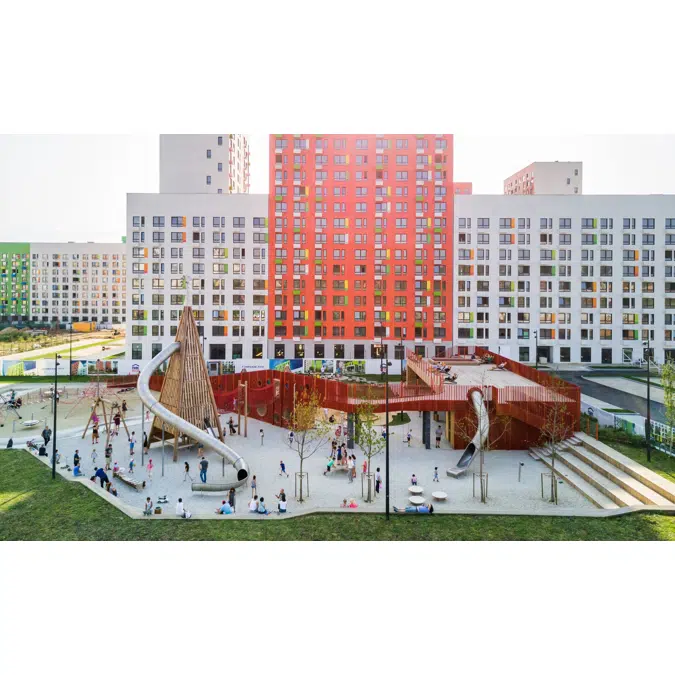

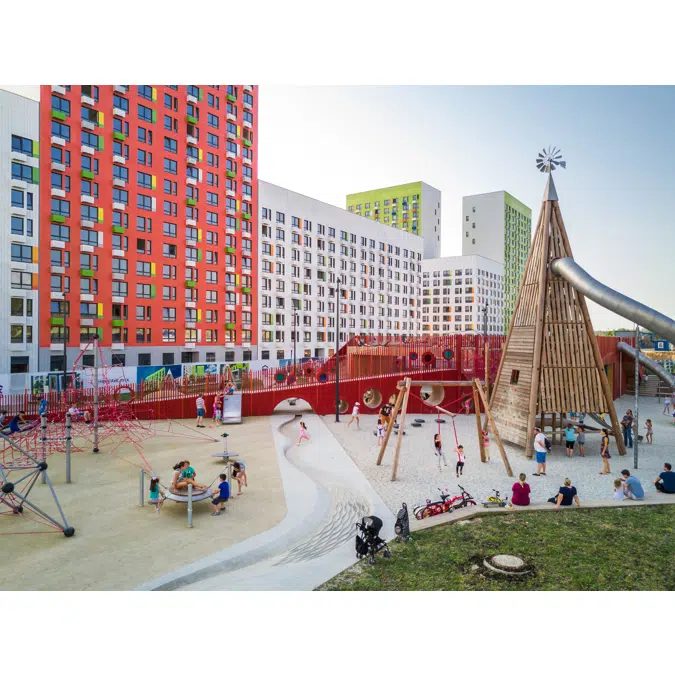

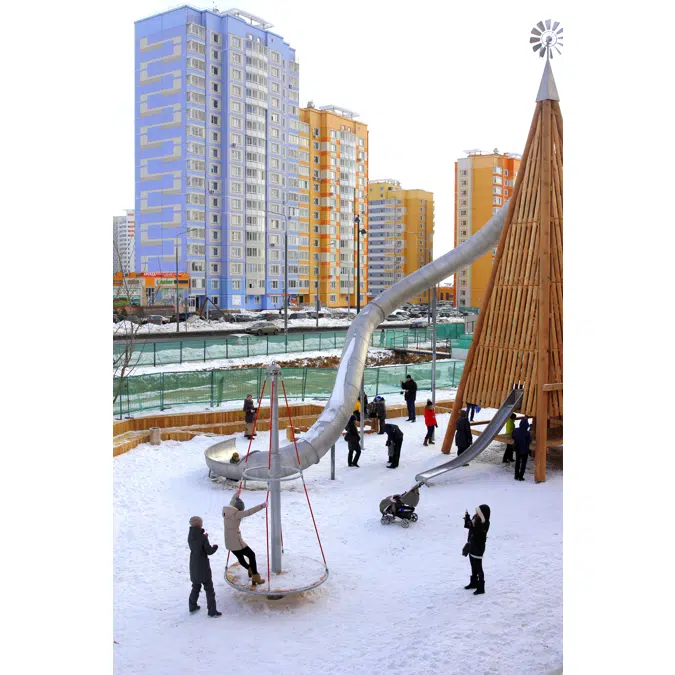

Because of its individual shape, the Big Pyramid Tower catches the eye and is therefore suited as a playground signal and lends the site an unmistakable character. The metal tip shines in the sunlight and the cladding is transparent, letting light pass through, despite its sturdiness. A colour design provides an interesting accentuation. If the towers are grouped, it is possible to create a spectacular slide system with connecting tunnels which will undoubtedly form a big attraction in leisure areas.

Recommended for

Kindergarten children
School children
Supervised play areas such as kindergartens, schools, after-school programmes or similar
Public play areas without supervision such as playgrounds, parks or similar

Spesifikasjon

Technical information
- Core-free: Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape 3 Claddings Claddings made of mountain larch (4 – 5 cm). Peeled white by hand, natural tree surface remains tangible 4 and perceptible Tongue and groove Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling of dust / sand, protection 6 against direct rain Hardwood rungs Climbing rungs made of hardwood (ash) Ø 4.2 cm, milled and mortised, secured against twisting, easy to grip and not cold for children to touch Interlocking Interlocking connection, with milled metal rings or serrated disc dowels, to reinforce the bolt connection under high loads transverse to the grain direction of the wood
- Ground anchor: All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel 41 For more detailed explanation of the quality characteristics see price list. Tip made of stainless steel, glass bead blasted
- Dimensions: (small deviations possible) Order No. L3.41000 Small Pyramid Tower Height 7.00 m Floor heights 1.00 - 3.00 m Ground surface 2.50 x 2.50 m Support posts diameter 22 - 24 cm Weight approx. 1500 kg Order No. L3.42000 Middle Pyramid Tower Height 9.00 m Floor heights 1.00 - 5.00 m Ground surface 3.30 x 3.30 m Support posts diameter 25 - 29 cm Weight approx. 3000 kg Order No. L3.42500 Midsize Pyramid Tower Height 11.00 m Floor heights 1.00 - 7.00 m Ground surface 4.00 x 4.00 m Support posts diameter 25 - 29 cm Weight approx. 4000 kg Order No. L3.43000 Big Pyramid Tower Height 13.00 m Floor heights 1.00 - 9.00 m Ground surface 4.80 x 4.80 m Support posts diameter 26 - 35 cm Weight approx. 6000 kg +49-8052-17980 · FAX 4180 Small Pyramid Tower Middle Pyramid Tower Midsize Pyramid Tower Big Pyramid Tower L3.41000 - L3.43000

Tekniske spesifikasjoner

Unik ref.big-pyramid-tower
ProduktfamilieTowers and Platforms
ProduktgruppeMountain Larch
TypeObjekt (enkelt objekt)
Utgivelsesdato2026-06-29
Utgavenummer1

Lenker

Produktets nettadressehttps://www.richter-spielgeraete.de/en/big-pyramid-tower-13m-p3949/
Produktsertifiseringhttps://www.richter-spielgeraete.de/module/dcshop/webforms/download_file_rs.php?language_code=ENU&item_no=L3.43000&type=ZERTIFIKATE
Teknisk beskrivelsehttps://www.richter-spielgeraete.de/module/dcshop/webforms/download_file_rs.php?language_code=ENU&item_no=L3.43000&type=K

Relatert

Designet iTyskland
Produsert iTyskland

Klassifisering

BIMobject kategoriLandskapsutforming - Lekeplass
OmniClass-nummer23-21 29 17
OmniClass-tittelPlayground Equipment
