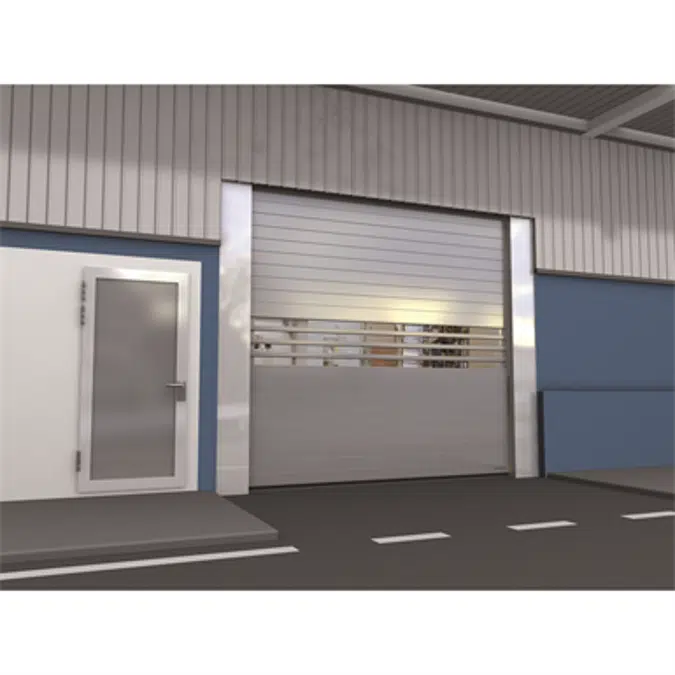

ASSA ABLOY RR3000 Rigid High Speed Door

The ASSA ABLOY RR3000 high speed doors with their nice aluminium curtain are perfect for industrial, commercial and high security applications where speed is important, looks are critical, traffic is frequent, and door safety concerns are paramount. This industrial door’s bold sleek design adds visual appeal to any architectural environment.

The ASSA ABLOY RR3000 metal door construction makes it a security door that is perfect for exterior openings in general manufacturing, automotive dealerships, parking facilities and detention centers - just to name a few applications. It's simple, patented design ensures hundreds of thousands of maintenance-free cycles.

Opis

Description:
Aluminum High-performance door, opening in vertical direction, for interior and exterior use.
Self-supporting side frames of edged galvanized steel profiles. springs for curtain tension and counterbalance in the side frame.
Door curtain of ecru anodized double walled aluminium lamellas, hingeless connected by means of flexible heavy belts, wear-less to wind up without to contact each other, each single lamella can be replaced easily, pre-fitted on the top roll.
Wind resistance (EN12424): class 4, class 3 for doors DW > 3500 mm.
Leckage (EN12426): class 2.
Watertightness (EN12425): class 1.
Noise emission: in db (ISO 140-3): 25 dB (23 ohne MiWo).
Temperature range max.: -20⁰ C bis + 60⁰C.
Drive unit: gear motor.
Protection: IP 55.
Control system:
MCC, with vector control technology and boost function at start-up. Graphic display and foil keypad for easy guided operation. Easy access to all important information for operation and service
Control voltage 24 V DC.
Supply voltage:
3L/(N)PE 380/400/415/440/460/480V; 50/60 Hz
With transformator 220/230/500V; 50 Hz.
Safety devices:
- patented, contact-free pre-running safety photocell
- stationary safety photocell integrated in side frame
- drop down protection by integrated balancing system
Manual activation: by releasing the brake at ground level. Partly opening by means of the pre-stressed tension springs.
Opening / closing speed: up to max. 2,2/0,7 m/s
Size max.:
(DW x DH) min: 600 x 3125 mm
(DW x DH) min: 5000 x 5000 mm
Make: ASSA ABLOY RR3000
Options
Covers:
- Top roll cover made of anodized aluminum
- Top roll cover powder coated
- Motor cover made of anodized aluminum
- Motor cover powder coated
Surface/material:
- Side frames with covers made of anodized aluminum
- Side frames coloured, RAL powder coated
- Aluminum lamellas coloured
Miscellaneous:
- Lamellas with windows
- Insulation
- Extended flexible seal
- Door as Laser Door
- Door as Machine Protection Door
- Contact edge
- Chain drive

Specyfikacja techniczna

Nr referencyjnyaa_a_RR3000_EMEA
Rodzina produktuHigh Speed Doors
Grupa produktuExterior Doors
TypObiekt (jeden obiekt)
Data publikacji2017-08-29
Numer edycji1

Linki

Url produktuhttps://www.assaabloyentrance.com/global/en/solutions/products/high-speed-doors/exterior-doors/rigid/assa-abloy-rr3000-series-rigid-exterior-high-speed-doors

Dodatkowe informacje

Materiał głównyStal
Zaprojektowano wNiemcy
Wyprodukowano wNiemcy

Klasyfikacja

Kategoria BIMobjectDrzwi - Bramy przemysłowe
Klasyfikacja IFCDrzwi
UNSPSC nameDoors
UNSPSC code301715
Uniclass 2015 CodeAc_15_50_25
Uniclass 2015 DescriptionDoors, windows and glazing surveying
CSI MasterFormat 2014 Code08 33 23.13
CSI MasterFormat 2014 TitleOverhead Rapid Coiling Doors
OmniClass Number23-17 11 19 21
OmniClass TitleOverhead Composite Doors
CSI UniFormat II CodeB2030
CSI UniFormat II TitleExterior Doors
