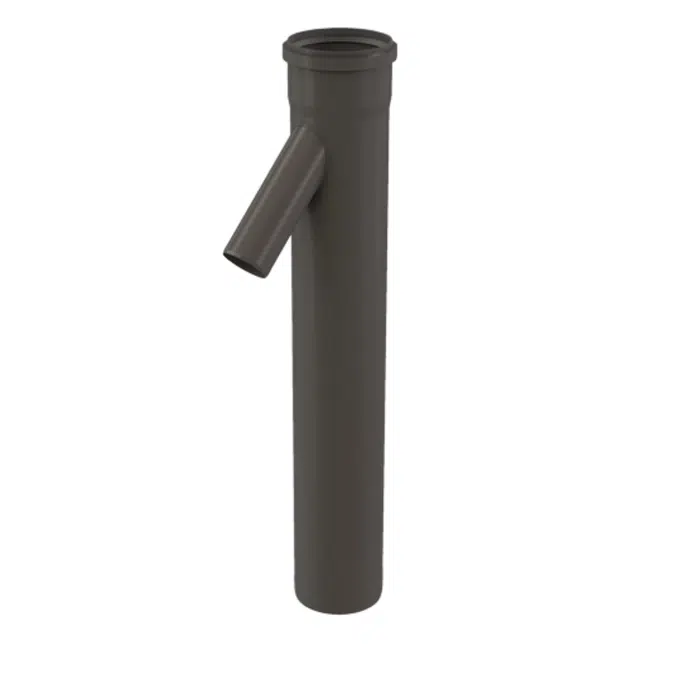

6" x 36" Branch Tee w/3" Feeder

Precisely configure a Cascade of Common Vent system with InnoFlue Branch Tees. Tested and approved by trusted OEM manufacturers, InnoFlue Branch tees effortlessly tether multiple appliances together into a singular manifold system. Available in a variety of diameter combinations, InnoFlue Branch Tees provide a versatile option designed for optimal large diameter venting. Straightforward installations is quick and easy without glues, primers, or solvents.

Approved for Cascade/Common Vent use by trusted appliance manufacturers.
Evaluated to UL1738 and ULCS636 by ICC.
Rated to 230°F (110°C).
Installs quickly & easily without glues, primers, or solvents.
Available in a variety of diameter combinations.

Opis

SpecificationsGeneralProduct Name6" x 36" Branch Tee w/3" FeederTrade nameInnoFlueGTIN0815010016350Part number250409401790TechnicalColorGrayMaterialPPsSystem typeCascadeMaterial flue pipePPsDimensionsLength gross1014 mm / 39.9 inchHeight183 mm / 7.2 inchDiameter flue pipe160 mm / 6 inchWidth332 mm / 13.1 inchNet weight1.583 kg / 3.5 lbsLogisticalIntrastat3917220000Base unit packagingUnpackedPackaging / Trade length1014 mm / 39.9 inchPackaging / Trade height183 mm / 7.2 inchNumber per packaging1Gross weight1.583 kg / 3.5 lbsPackaging / Trade width332 mm / 13.1 inchPerformanceTemperature resistance (max.)120 °CCertificationCertificates (US/CAN)UL 1738 – ICC-ES / ULC S636 – ICC-ES

Specyfikacja techniczna
