Subway Tile Shower Wall Panels Surround

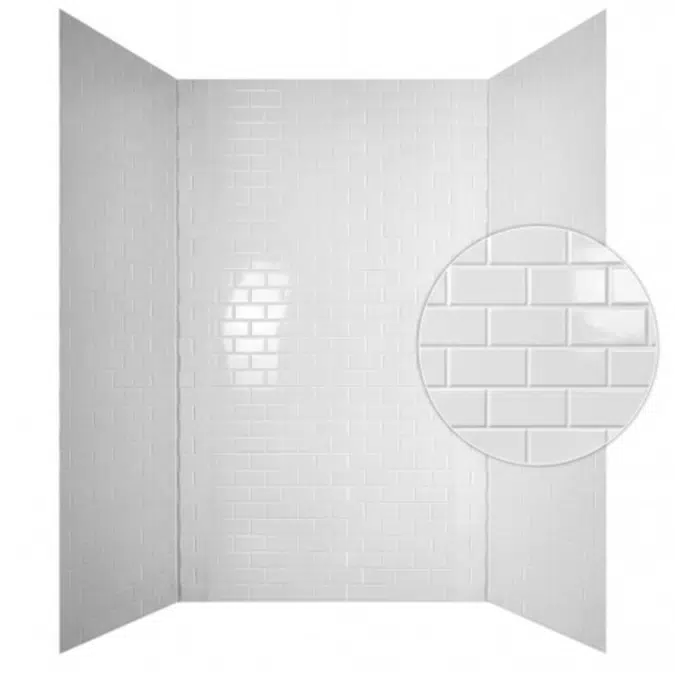

MirroFlex Subway Tile – Tub & Shower Wall Panel System

MirroFlex Subway Tile is a decorative wall panel system designed for wet-area applications where the appearance of traditional subway tile is desired without individual ceramic tiles or grout joints. The non-porous surface creates a continuous, easy-to-maintain wall finish suitable for both residential and commercial interiors.

The system can be used in tub surrounds, shower enclosures, laundry areas and other interior spaces exposed to regular moisture. Its grout-free construction reduces the number of joints within the installation and simplifies routine cleaning compared with conventional tiled surfaces.

Each kit consists of three full-height wall panels: one 48 in. center panel and two side panels. The side panels incorporate a 6 in. folding section that connects to the center panel and allows the system to accommodate a range of common tub depths.

Excluding the folding section, each side panel has a fixed width of 42 in. The adjustable configuration is designed to accommodate tubs approximately 30 to 40 in. wide. All three panels are 96 in. high, providing continuous vertical coverage for the surround.

Two 8 ft. J-channel moldings are included to finish and seal the exposed side edges. The trim can be cut to the required length with scissors during installation.

System Details

Product type: Decorative wet-area wall panel system
Design: Subway tile
Configuration: Three-piece tub and shower surround
Center panel: 48 in. wide
Side panels: 42 in. fixed width plus 6 in. folding section
Panel height: 96 in.
Tub compatibility: Designed to accommodate approximately 30–40 in. tub widths
Surface: Non-porous and grout-free
Applications: Tub surrounds, shower enclosures, laundry walls and other interior wet areas
Suitable for residential and commercial applications
Included trim: Two 8 ft. J-channel moldings
J-channel can be field-trimmed with scissors
Designed for straightforward cleaning and maintenance

Skontaktuj się z Decorative Ceiling Tiles

Opis

Model: 133-SUB-KIT
Product Type: Tub & Shower Wall Panel System
Material: PVC
Material Thickness: 0.030 in.
Overall Height: 96 in.
Overall Width: 60 in.
Overall Depth: 42 in.
System Weight: 29 lb.
Coverage: Approximately 96 sq. ft.
Surface Pattern: Subway Tile
Pattern Size: 3 x 6 in.
Sample Size: 12 x 12 in.
Installation Method: Direct glue-up
Recommended Adhesive: Spray-Lock FRP adhesive
Adhesive Coverage: Approximately one specified adhesive unit per two panels
Applications: Tub surrounds, shower enclosures, laundry walls and other interior wet-area wall surfaces
Surface Characteristics: Non-porous and grout-free
Suitable Environments: Residential and commercial interiors
Kit Components
- Two 48 x 96 in. side panels with folding edges
- One 48 x 96 in. center panel
- Two 8 ft. J-channel moldings
System Configuration:
Each side panel incorporates a 6 in. folding section for connection to the center panel. This adjustable configuration allows the surround to accommodate a range of common tub dimensions while maintaining continuous full-height wall coverage.
Installation Note:
J-channel moldings are provided for finishing the exposed side edges of the installation and can be field-trimmed to the required length.

Specyfikacja techniczna

Nr referencyjnysubway-tile-shower-wall-panels-surround
Rodzina produktuShower Insert
Grupa produktuTransitional Style Wall Panels
TypObiekt (jeden obiekt)
Data publikacji2026-07-29
Numer edycji1

Linki

Url produktuhttps://www.decorativeceilingtiles.net/tub-and-shower-walls/subway-tile-mirroflex-tub-and-shower-walls/
Instrukcja montażuhttps://www.decorativeceilingtiles.net/content/mirroflex_tubs_and_shower_walls_installation_instructions.pdf
Certyfikacja produktuhttps://www.decorativeceilingtiles.net/content/tech_info/astm-cbs-fire-ratings.pdf
Przykładowy adres URL żądaniahttps://www.materialbank.com/search?utm_source=Referral&utm_medium=BIMobjects&utm_campaign=March2026#/filter:manufacturer:Decorative%2520Ceiling%2520Tiles#/page:1
Opis technicznyhttps://www.decorativeceilingtiles.net/content/tech_info/mirroFlex_eccoflex_technical_information.pdf

Dodatkowe informacje

Zaprojektowano wStany Zjednoczone
Wyprodukowano wStany Zjednoczone

Klasyfikacja

Kategoria BIMobjectMateriały budowlane - Panele i akcesoria akustyczne
Uniclass 2015 CodeSL_35_80_80
Uniclass 2015 DescriptionShowers
CSI MasterFormat 2014 Code22 41 23
CSI MasterFormat 2014 TitleResidential Showers
OmniClass Number23-31 17 00
OmniClass TitleShowers
