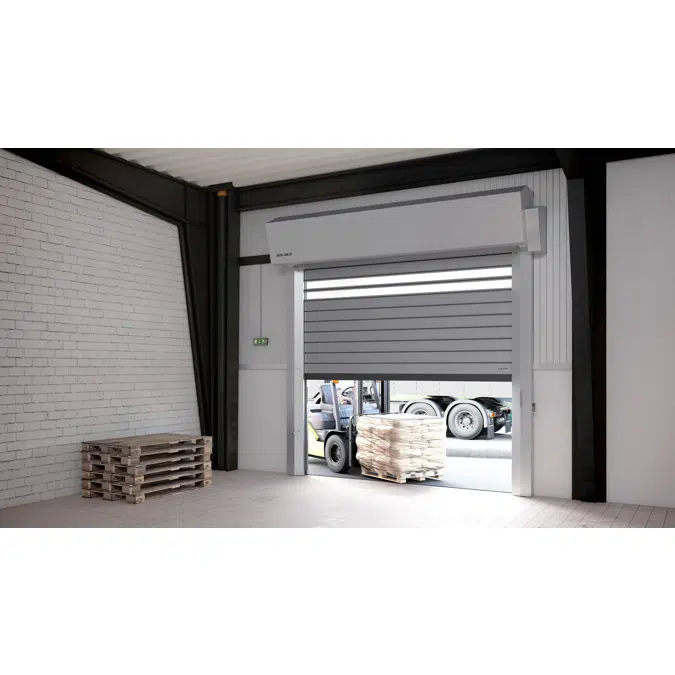

ASSA ABLOY RR5000 Highly Insulated Rigid Exterior Door

Standard equipment

Dimensions:

• Daylight width: 1250-5000mm (10mm steps)
• Daylight height: 2500-4700mm (100mm steps)
• Area: max. 23,5 sqm

Wind Class:

• Class 4 (DW ≤ 3500mm),
• Class 3 (3500mm < DW ≤ 5000mm), according EN 12424

Heat transition coefficient (U-value): Panel door blade: U=0,79 W/m2K, compl. door (5x4,7m; without windows): U=1,28 W/m2K, acc. EN12428

Noise: < 70 dB A (running noises)

Noise reduction: Rw: 25 dB

Operating temperature:

• Standard -10 °C - +40 °C
• Extended -20 °C - +60 °C

Door blade: Foamed sandwich panel with coated steel covers (RAL 9006); Panel height: 200mm, total thickness t=50mm

Side guides: Galvanized sheet metal

Side guide insulation: On side frame between door blade and back of side frames with insulation cover

Top roll: Steel tube, each side two disks with same radius

Top roll sealing: Distance profile (galv. steel) with sealing profile as cable channel over the lintel, additional sealing-lip fixed at top lamella

Balancing: System with tension springs inside frames

Tensioning: No

Bottom Beam: Standard lamella with rubber sealing (without break-away)

Safety device: Light grid inside frame gap up to DH=2450mm

Drive unit: Bonfiglioli gear motor 1,1 kW with front brake, available for right and left side

Opening/ closing speed: max. 2,2m/s / 0,7m/s

Cycles per minute: max. 3

Emergency opening: The door leaf can be raised when the brake release lever is actuated

Control box: MCC Frequency converter control system, Display on side frame drive side

Power supply:

• 3/(N)/PE 380V, 50/60Hz (+-10%)
• 3/(N)/PE 400V, 50/60Hz (+-10%)
• 3/(N)/PE 415V, 50/60Hz (+-10%)
• 3/(N)/PE 440V, 50/60Hz (+-10%)
• 3/(N)/PE 480V, 50/60Hz (-10%/+5%)

Certificates:

• Safe opening, peak forces according EN13241-1
• Resistance to wind load (EN 12424)
• Heat transition coefficient (EN 12428)
• Acoustic insulation value (DIN EN ISO 10140)
