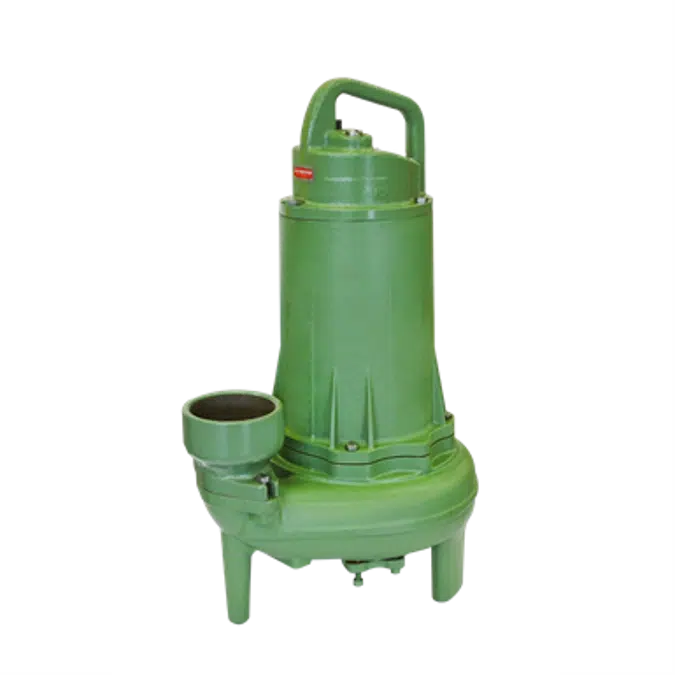

BRAVA 355

General Applications:
Effluent treatment plants
Drainage of waste water and rain water
Pumping of non-fibrous effluents

Technical Product Details:
BSP threaded volutes
Gray casted iron motor pump volute
Semi-open casted iron impeller GG-25
Gray cast iron bottom plate GG-15
Double mechanical seal made of stainless steel AISI-304, buna N, graphite and ceramic
Electric motor IP-68, 4-pole, 60 Hz, cooled with dielectric oil, AISI-420 stainless steel shaft
Cable length: 10 m
Single-phase motor pumps have thermal protection in the motor

Options:
Mechanical seal: buna N silicon carbide
Cable length: 25 m

Important:
The electrical installation must follow the instructions of the NBR 5410.
The use of pumping drinking water is prohibited.
Install the BRAVA 355 electric motor and operate completely submerged. Models that have electric float for automatic operation should not operate in continuous operating mode. For continuous system pumping, total submergence of the product is required.
Maximum pumped liquid temperature: 40 ° C.
For use outside the informed applications, consult the Factory.
Refer to the Instruction Manual for other operational care.
