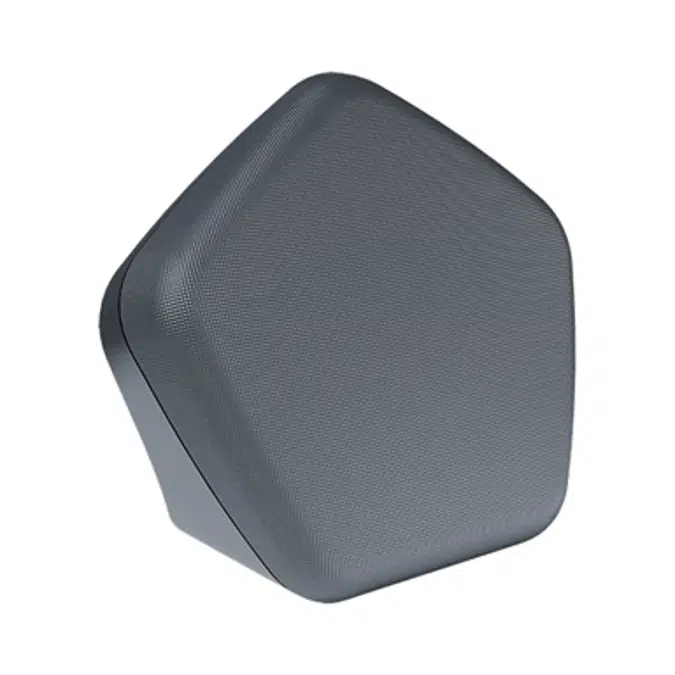

CALEFFI CODE - Remote thermal regulation system for radiators

Caleffi

CALEFFI CODE - Remote thermal regulation system for radiators

Wireless electronic control for thermostatic or convertible radiator valves. Operates through Gateway, Gateway PRO, app CALEFFI CODE® and front buttons. Built-in temperature sensor. Radio communication: RF 868 MHz. Quick-coupling installation with adapter. Battery electric supply: 2 x 1,5 V AA batteries (in package). Compatible with rechargeable batteries. Protection class: IP 30. Ambient temperature range: 0–55 °C. White colour RAL 9003. Visit bim.caleffi.com to stay updated.

Cпецификация

The Caleffi CODE® can control the temperatures in each of the environments separately or in the whole home through the Caleffi CODE® App, guaranteeing the ideal comfort for each user at any time of day. The guided step-by-step procedure and video tutorials within the mobile application ensure that it can be installed quickly and intuitively. The Gateway is the brain of the whole system, which communicates with the controls and sensors, and interacts with the Caleffi CODE® App to control and manage home heating as programmed and to meet the user's requirements. The Gateway PROversion of the gateway with built-in modem is also available. The Comfort Control electronic wireless control measures the room temperature using its built-in sensors and automatically regulates it as desired. The Sensor can measure the ambient temperature where it is not possible to do so with Comfort Control; it is suitable for, generally large, areas where it is necessary to control the temperature of several controls. The Sensor PRO, wireless ambient temperature sensor with boiler contact not only measures the ambient temperature, but can also turn on the boiler in place of the conventional home thermostat

Техническая спецификация

Уникальная ссылка215
Тип продукцииHVAC
Группа продукцииOther
ТипДемонстрация (модель)
Дата публикации2020-05-29
Номер версии1

Ссылки

Ссылка на продукциюhttps://www.caleffi.com/international/en-int/catalogue/comfort-control-caleffi-coder-wireless-electronic-control-thermostatic-or-convertible
Инструкции по монтажуhttps://www.caleffi.com/sites/default/files/file/01366_en.pdf
Техническое описаниеhttps://www.caleffi.com/sites/default/files/file/01366_en.pdf

Связанные

Основной материалПластик
Разработано вИталия
Страна-производительИталия

Классификация

Категория BIMobjectВентиляция и кондиционирование воздуха - Вентиляция и кондиционирование воздуха
Классификация IFCКлапан
Код ETIMEC011295
Название ETIMThermostatic control element
Название по ССКПУ ООНTelecommunications remote access unit
Код ССКПУ ООН43221521
Код Uniclass 2015Pr_70_75_52_96
Описание Uniclass 2015Wireless sensor nodes
Код CSI MasterFormat 201440 66 43
Заголовок CSI MasterFormat 2014Wireless Network Systems
Номер OmniClass23-37 23 21 15
Наименование OmniClassWireless Radio Communication Equipment
