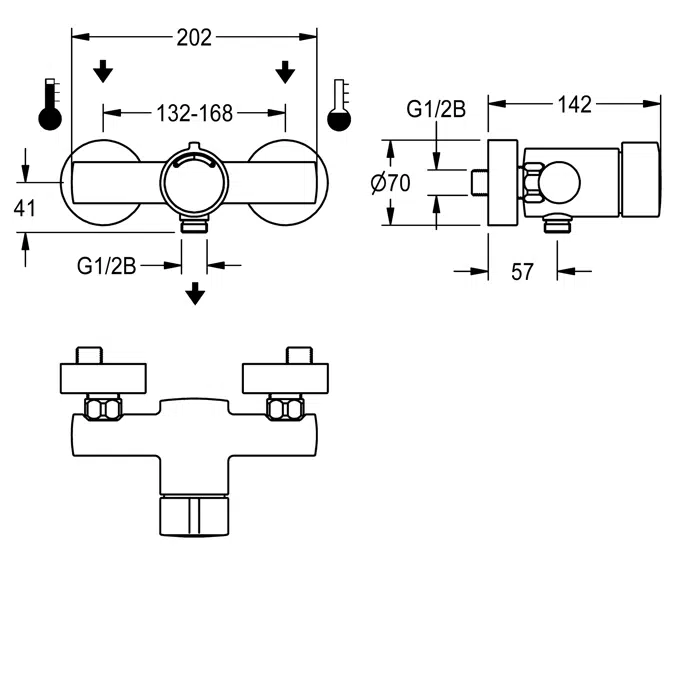

F3S-Mix self-closing wall-mounted mixer F3SM2002

Type of mounting      Wall mounting
Type of operation      Manual operation
Position of water connection      From backside
Diameter nominal      DN 15
Calculation flow rate cold water      0.15 liter per second
Calculation flow rate hot water      0.15 liter per second
Functional principle      Hydraulic self-closing
Minimum flow pressure      1.00 bar
Volume flow rate at 3 bar      0.25 liter per second
Inlet size      G 1/2 B
Type of mixing      With mixing
Adjustable flow time      Yes
Material fitting      Brass
Sound insulation      No
Surface finish fitting      Chromed
Thermal disinfection      No
Protective shutdown      No
Maximum flow time      35.00 seconds
Minimum flow time      5.00 seconds
Circulation      No
Additional connections      No
Connection with pay water dispenser      Not possible
Shower pipe draining      No
Type of shower      Wall fitting
