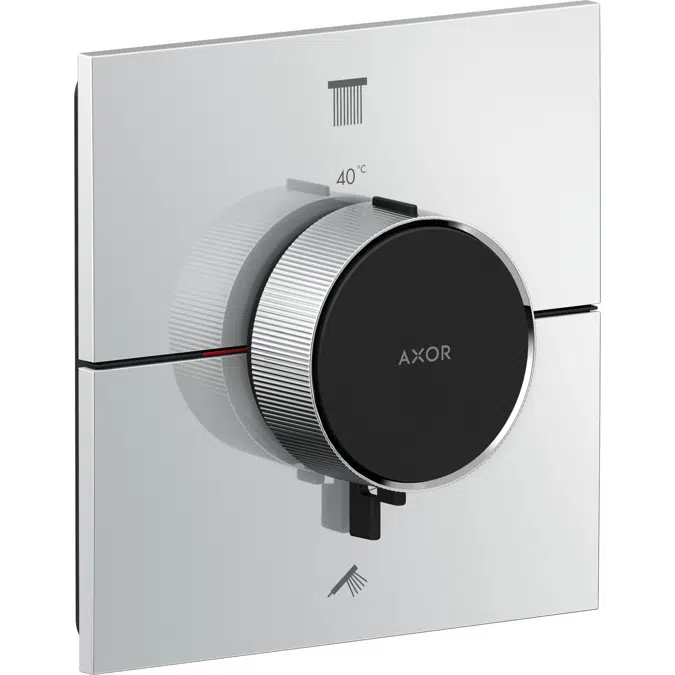

AXOR ShowerSelect ID Thermostat for concealed installation square for 2 functions

Cпецификация

Surfaces: - 36752001 Chrome - 36752141 Brushed Bronze - 36752251 Brushed Gold Optic - 36752301 Polished Red Gold - 36752311 Brushed Red Gold - 36752331 Polished Black Chrome - 36752341 Brushed Black Chrome - 36752671 Matt Black - 36752801 Stainless Steel Optic - 36752821 Brushed Nickel - 36752831 Polished Nickel - 36752951 Brushed Brass - 36752991 Polished Gold Optic Specification: • 2 functions • simultaneous use of several outlets • comfortable turning on / off of outlets with large Select-paddle • precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle • water flow control with stop function • thermostat cartridge, Start/stop valve to operate the functions • min. operating pressure: 1 bar • max. operating pressure: 10 bar • flat escutcheon for more space in the shower • escutcheon can be aligned by +/- 3° • easy installation due to pre-assembled function block • handles always at the same height regardless of the installation depth of the basic set • Safety stop at 40 °C • temperature limitation adjustable • the thermostat offers the possibility for thermal disinfection • material button: metal • material handles: metal • connection type: basic set iBox universal 2 (# 01400180) • Select-paddles are delivered with lasered user symbols (Rain large and hand shower)
