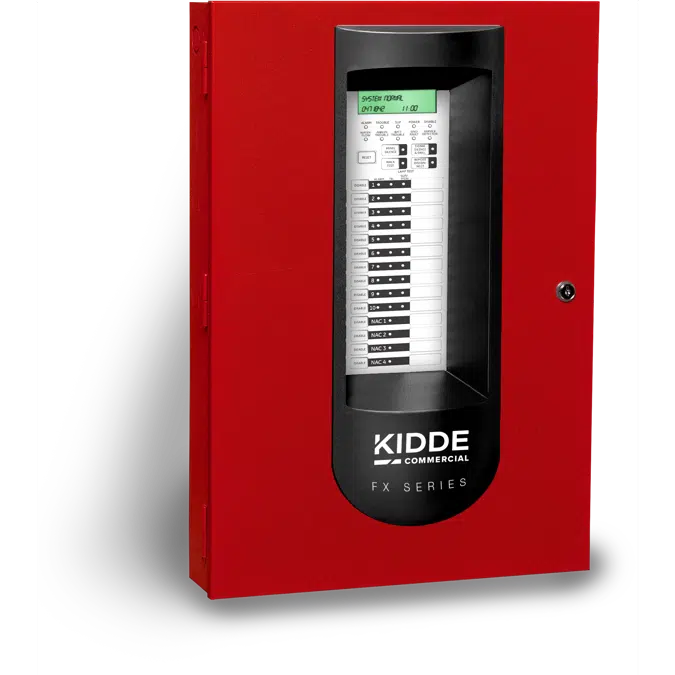

FX-10RD 10-Zone Conventional Fire Alarm Control Panel

OVERVIEW

Kidde brand conventional fire alarm systems consist of 5 and 10 zone fire alarm control panels (FACP), an optional integrated upload/download DACT (dialer), intelligent/analog type detector features, serial annunciator modules, and serial remote relay modules. All FACPs and components are Listed to the 10th edition of the ANSI/UL 864 standard and CSFM/FDNY approved.

These systems incorporate features designed to simplify installation, operation and maintenance, including front panel programming, one person walk testing, and selectable IDC and NAC types.

Kidde systems are powerful enough to meet the demands of today’s life safety installations while leaving plenty of room to grow in the future. They support Class A operation by combining pairs of on-board IDCs or NACs to provide the necessary Class A circuits. For example, the FX-10RD comes factory set to support 10 Class B IDCs and 4 NACs. But it can be field-configured to provide 5 Class A IDCs (no Class B IDCs), and 2 Class A NACs – or any other combination of circuits that falls within the circuit-pairing parameters.

STANDARD FEATURES

• Available in 5 and 10 zone (IDC) models
• Automatic drift compensation with select detectors reduces false alarms and extends dust life
• Listed to ANSI/UL 864 10th Edition
• Models with fully integrated upload/download DACT enables PC programming
• Zone or NAC pairs convertible to single Class A circuits
• Combination Waterflow and Supervisory IDCs
• NACs programmable by zone and individually selectable for notification appliances, continuous, temporal outputs, or coded
• Front panel programmable simplifies installation and servicing
• Precision synchronization with compatible notification appliances and optional audible silence over two wires
• On-board relays for Alarm, Supervisory and Trouble
• Optional serial bus relay modules are programmable for Common, Zone, or Matrix activation
• Optional serial bus remote annunciator family
• One person walk-test (audible or silent)
• Optional City Tie and Reverse Polarity Modules
• Trim ring available for semi-flush mounting
