RADIANCE Vanity Lighting

Construction

• Product Type: Architectural Vanity Light
• Sizes: 18" and 24" vanity bath bar
• Shape: Cylindrical housing and lens with a curved decorative diffuser
• Housing Material: Brushed aluminum

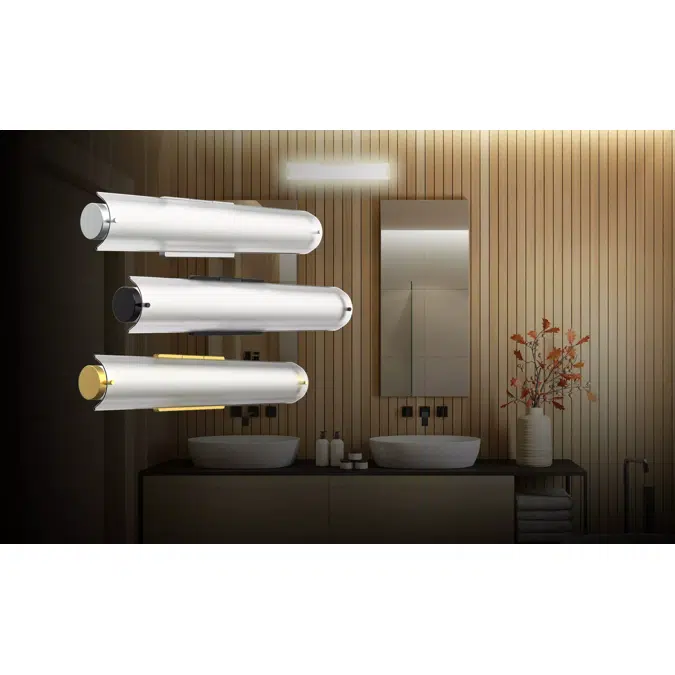

• Finish Options: Brushed Nickel, Black, and Brass
• Lens: Frosted white polycarbonate lens

Installation

• Method: Wall bracket and wire nuts included; attaches to standard junction box
• Orientation: Horizontal or vertical
• Mounting: Wall mounting with included junction box bracket and hardware

Electrical

• Dimmable: Yes, down to 5% on compatible TRIAC/ELV dimming systems
• Input Voltage: 120V (Brushed Nickel & Black) / 120–277V (Brass model only)
• Operating Frequency: 60 Hz
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• THD: <50%
• Power Factor: >0.9
• Flicker: <30%

LED Characteristics

• Wattages: 3 selectable wattages (18": 16W/12W/8W — 24": 20W/15W/10W)
• Color Temperature: Field-adjustable via dip switch — 2700K / 3000K / 3500K / 4000K / 5000K (3000K factory default)
• CRI: >90
• Beam Angle: 120°
• R9 Value: >50 (high color performance)
• Color Consistency: <7-step MacAdam Ellipse binning
• Color Stability: Warranted to shift no more than 200K over 5 years
• Color Uniformity: Follows ANSI C78.377-2017 guidelines
• Lifespan: 50,000 hours

Compliance

• UL Listed: Tested by Intertek; compliant with accepted national standards
• Environment Rating: Damp rated (indoor dry and damp environments)
• California Title 24 JA8: Compliant
• CEC Status: Lawful for sale in California
• LM-79 / LM-80: Independently tested per IESNA standards
• FCC: Complies with Part 15 of FCC Rules
• RoHS: Mercury-free, UV-free, RoHS-compliant components
• ADA Compliant: Yes

Dimensions & Weight

• V1-18 / V1-18B / V1-18BR: 18" length — 2.43 lbs
• V1-24 / V1-24B / V1-24BR: 24" length — 3.09 lbs

Warranty

• 5-year no-compromise warranty covering light output, color stability, driver performance, and fixture finish
