MB-104 Passive SI Door Single inward opening for wall / curtain wall
Aluprof

MB-104 Passive SI Door Single inward opening for wall / curtain wall

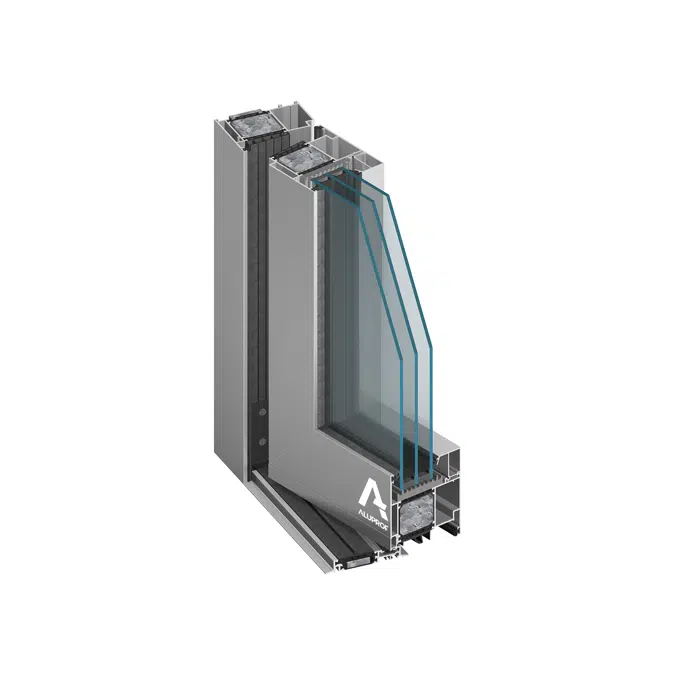

The MB-104 Passive is a thermal break-equipped window & door system that provides the highest thermal insulation performance, and meets all the requirements for passive building components.

The system is used to fabricate exterior architectural development elements, e.g. various types of windows, doors, vestibules, and spatial structures, which are characterized, in addition to the excellent thermal insulation, by a very good sound insulation, water- and  air tightness and high structural strength.

The MB-104 Passive system's profile construction comes in two variants, depending on the requirements for thermal energy savings: SI and AERO

The MB-104 Passive -based door & window parameters exceed the current requirements of the strictest applicable regulations and standards – that’s why the MB-104 Passive system is dedicated to energy-efficient and passive building.

Specifikation
  • Why MB-104 Passive?

    • Passive House Institute Darmstadt-certified windows: MB-104 Passive SI and MB-104 Passive Aero
    • excellent thermal insulation performance for openable window: Uw from 0.53 W//m2K and for door UD from 0,62 W//m2K
    • standard-exceeding tightness and insulation performance
    • large range of glazing, up to 81mm
    • exterior doors are available both glazed and panelled – it’s a perfect entrance door to a modern home

    MB-104 Passive can also be used to fabricate highly aesthetic panel doors that meet the expectations of the most demanding users.

Teknisk specifikation
  • Unik ref.MB-104_Passive_SI_door_single_inward_opening
  • ProduktfamiljWindows & Doors
  • ProduktgruppMB-104 Passive SI
  • TypObjekt (enstaka objekt)
  • Publiceringsdatum2021-05-19
  • Edition nummer1
  • Djup (mm)104
Relaterad
  • HuvudmaterialAluminium
  • Sekundärt materialGlas
  • Designad iPolen
  • Tillverkad iPolen
Klassificering
  • BIMobjektkategoriDörrar - Dörrpaket
  • IFC klassificeringDörr
  • UNSPSC namnDoors and windows and glass
  • UNSPSC kod3017
  • Uniclass 2015 kodEF_25_30
  • Uniclass 2015 beskrivningDoors and windows
  • CSI MasterFormat 2014 Kod08 11 16
  • CSI MasterFormat 2014 TitelAluminum Doors and Frames
  • OmniClass nummer23-17 11 13 13
  • OmniClass TitelAluminum Doors
  • CSI UniFormat II KodB2030
  • CSI UniFormat II TitelExterior Doors
