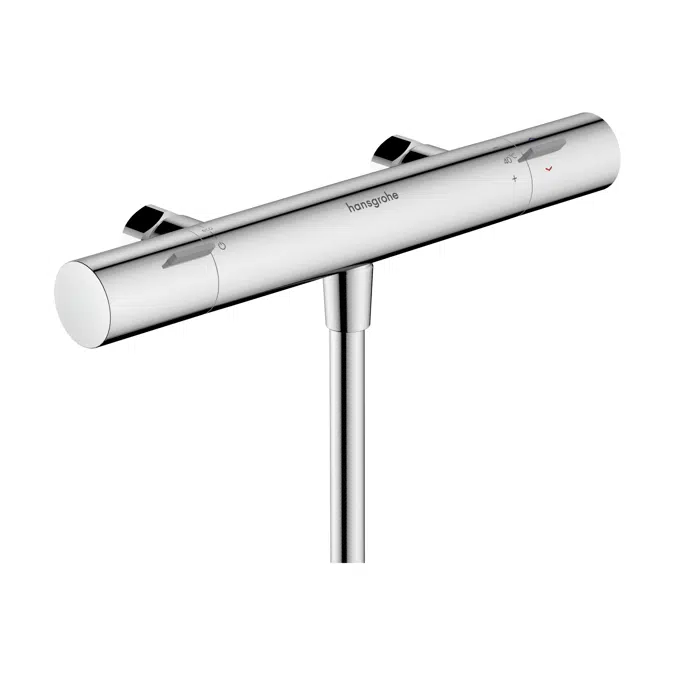

Ecostat Life Shower thermostat for exposed installation

Specifikation

Specifikation

• Surfaces: - 13387000 Chrome Specification: • 1 function • EcoStop+ button limits the water consumption to 6 l/min • thermostat cartridge • min. operating pressure: 1 bar • max. operating pressure: 10 bar • Safety stop at 40 °C • temperature limitation adjustable • non-return valve • with silencer • material handles: metal • centre distance: 150 mm • connection dimension: DN15 • connection type: S-connections, G ½ • dirt filter included

Teknisk specifikation

Teknisk specifikation

• Unik ref.13387NOR
• TypObjekt (enstaka objekt)
• Publiceringsdatum2025-03-20
• Edition nummer1
• Höjd (mm)68
• Bredd (mm)310
• Djup (mm)103

Länkar

Länkar

• Produkt-urlhttps://www.hansgrohe.com/articledetail--13387000
• Installationsinstruktionerhttps://www.hansgrohe.com/articledetail--13387000
• Instruktionsvideohttps://www.hansgrohe.com/articledetail--13387000
• Teknisk beskrivninghttps://www.hansgrohe.com/articledetail--13387000

Relaterad

Relaterad

• Designad iTyskland
• Tillverkad iTyskland
• Vikt netto (kg)1.7

Klassificering

Klassificering

• BIMobjektkategoriSanitet - Duschar
• IFC klassificeringSanitetsterminal
• Uniclass 2015 kodPr_40_20_87_76
• Uniclass 2015 beskrivningShower heads
• CSI MasterFormat 2014 Kod22 41 23
• CSI MasterFormat 2014 TitelResidential Showers
• OmniClass nummer23-31 17 00
• OmniClass TitelShowers
• CSI UniFormat II KodD2010
• CSI UniFormat II TitelPlumbing Fixtures
