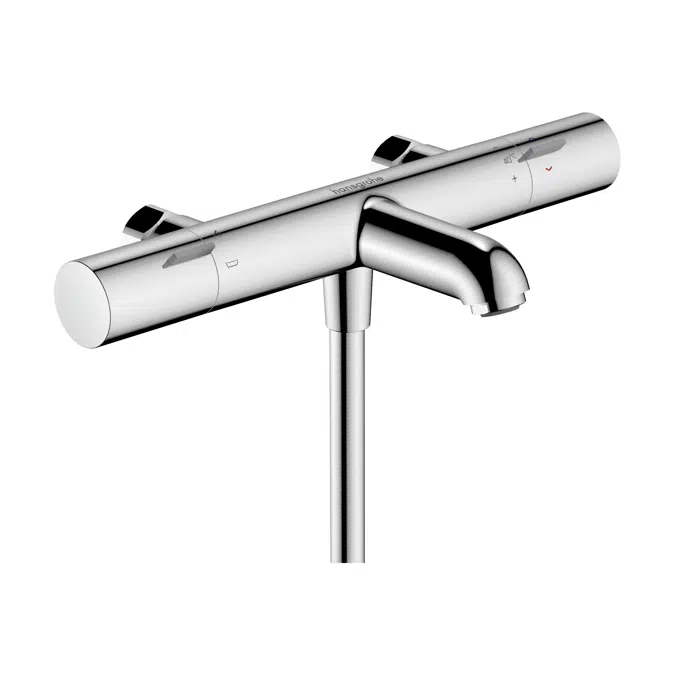

Ecostat Life Bath thermostat for exposed installation

Specifikation

Specifikation

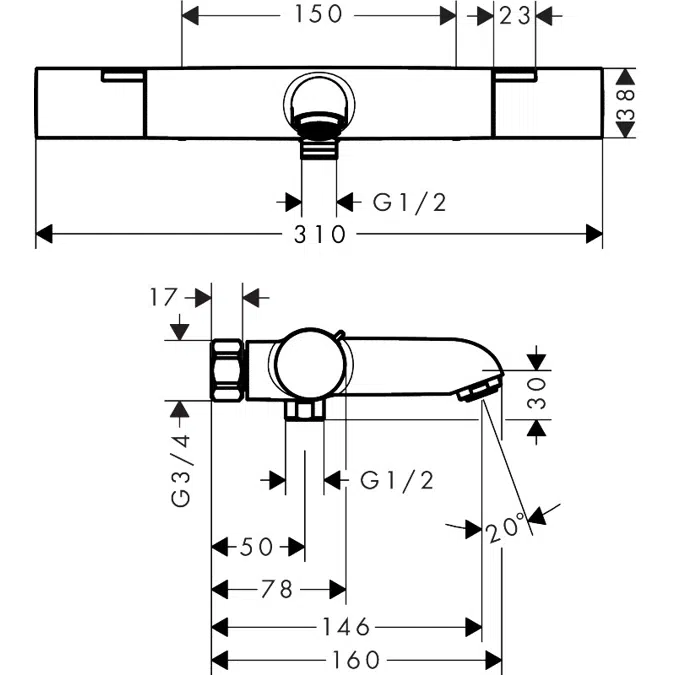

• Surfaces: - 13388000 Chrome Specification: • projection 152 mm • 2 functions • temperature and water flow control • thermostat cartridge • spray type spout: normal spray • min. operating pressure: 1 bar • max. operating pressure: 10 bar • Safety stop at 40 °C • temperature limitation adjustable • non-return valve • protected against backflow, according to DIN EN 1717 • material handles: metal • connection dimension: DN20 • connection type: G ¾ • centre distance: 150 mm • dirt filter included • includes optional accessory to limit total flow to 7,6 l/min where required

Teknisk specifikation

Teknisk specifikation

• Unik ref.13388NOR
• TypObjekt (enstaka objekt)
• Publiceringsdatum2025-03-20
• Edition nummer1
• Höjd (mm)38
• Bredd (mm)310
• Djup (mm)163

Länkar

Länkar

• Produkt-urlhttps://www.hansgrohe.com/articledetail--13388000
• Installationsinstruktionerhttps://www.hansgrohe.com/articledetail--13388000
• Instruktionsvideohttps://www.hansgrohe.com/articledetail--13388000
• Teknisk beskrivninghttps://www.hansgrohe.com/articledetail--13388000

Relaterad

Relaterad

• Designad iTyskland
• Tillverkad iTyskland
• Vikt netto (kg)1.7

Klassificering

Klassificering

• BIMobjektkategoriSanitet - Bad & Spa
• IFC klassificeringSanitetsterminal
• Uniclass 2015 kodPr_40_20_06_08
• Uniclass 2015 beskrivningBaths
• CSI MasterFormat 2014 Kod22 41 19
• CSI MasterFormat 2014 TitelResidential Bathtubs
• OmniClass nummer23-31 15 00
• OmniClass TitelBathtubs
• CSI UniFormat II KodD2010
• CSI UniFormat II TitelPlumbing Fixtures
