TECHNOMIX

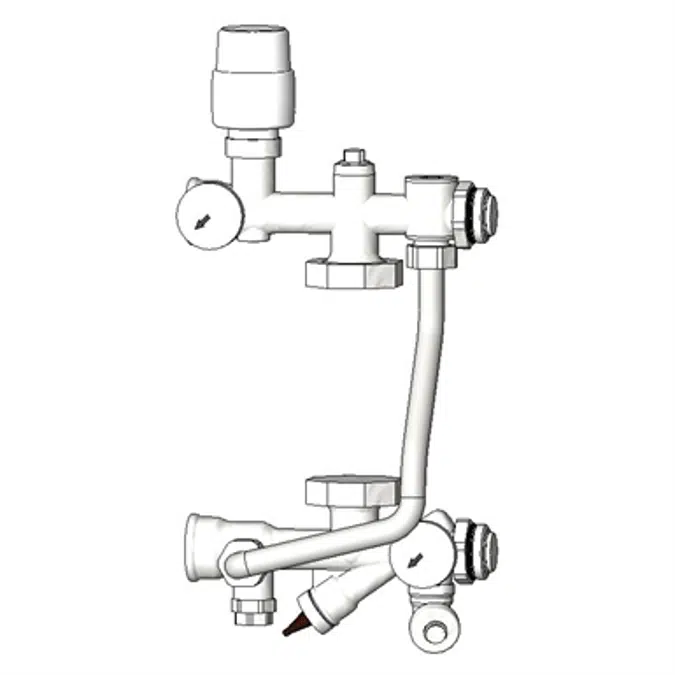

TECHNOMIX is a mixing and boosting unit for radiant installations. Delivery temperature control is carried out by a two-way valve, which regulates the flow of heat transfer fluid to mixing (“injection” system). TECHNOMIX is available with fixed point mixing by thermostatic head. Complete with balancing valve, shut-off valves, manual air vent valve and fill/drain valve, TECHNOMIX brings together all the essential functions in a compact sized, easily accessible and reversible unit (with delivery from the right or from the left). It may be supplemented with IVAR manifold kits for balancing and controlling individual zones and, upstream of mixing, with horizontal or vertical manifold kits for high-temperature delivering to radiators and heated towel rails.

Specifikation

IVAR TECHNO TNB cod. 508100: mixing and boosting unit for radiant installations complete with two-way mixing valve, balancing valve (on the cold way), fill/drain valve, manual air vent valve, two thermometers 0÷80 °C (on delivery of boiler circuit and mixed circuit), temperature sensor pocket (on delivery of mixed circuit), shut off valve (on return of boiler circuit), boiler circuit connections G 1”F (centre distance 200 mm) and mixed circuit connections G 1”M (centre distance 200 mm). Upper and lower parts made of nickel-plated CB753S brass; pipe made of nickel-plated half-hard copper; gaskets and O-rings made of peroxide-cured EPDM; other parts made of CW617N brass. Max operating temperature 100 °C. Max operating pressure 10 bar. Fixed point mixing 20÷60 °C by thermostatic control head with remote sensor T3011 included. Max differential pressure at mixing valve ends 250 mbar. Pump space 130 mm with G 1”1/2F flat seal connections.

Teknisk specifikation

Unik ref.TECHNOMIX
ProduktfamiljRadiant systems
ProduktgruppMixing and relaunch group for radiant systems TECHNOMIX
TypObjekt (enstaka objekt)
Publiceringsdatum2019-01-28
Edition nummer1

Länkar

Produkt-urlhttps://www.ivar-group.com/en/web/international/techno-tnb/p-31795-5054
Installationsinstruktionerhttps://www.ivar-group.com/en/web/international/techno-tnb/p-31795-5054
Produktcertifieringhttps://www.ivar-group.com/en/web/international/techno-tnb/p-31795-5054
Teknisk beskrivninghttps://www.ivar-group.com/en/web/international/techno-tnb/p-31795-5054

Relaterad

HuvudmaterialMässing
Sekundärt materialKoppar
Designad iItalien
Tillverkad iItalien

Klassificering

BIMobjektkategoriRörläggning - Annat
IFC klassificeringVentil
UNSPSC namnValves
UNSPSC kod401416
Uniclass 2015 kodSs_60
Uniclass 2015 beskrivningHeating, cooling and refrigeration systems
CSI MasterFormat 2014 Kod23 00 00
CSI MasterFormat 2014 TitelHeating, Ventilating, and Air Conditioning (HVAC)
OmniClass nummer23-27 31 00
OmniClass TitelValves
CSI UniFormat II KodD30
CSI UniFormat II TitelHVAC
