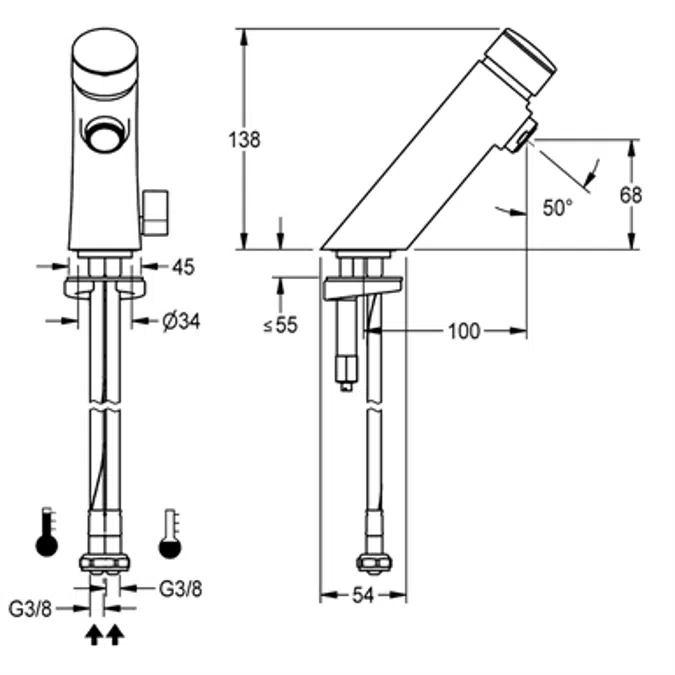

F3S-Mix self-closing pillar mixer F3SM1001

F3S-Mix self-closing pillar mixer DN 15 for sanitary facilities. Self-closing cartridge, hydraulically controlled, piston-free design, self-closing, stepless adjustment of flow duration. For connection to hot water and cold water via hoses with integrated backflow preventer and strainers. Temperature lever with adjustable, turn-proof temperature stop. Casing, high-polished chromium-plated brass. Aerator with an integrated flow regulator 3.0 l/min.

Specifikation

Type of mounting	Tap hole
Type of operation	Manual operation
Diameter nominal	DN 15
Calculation flow rate cold water	0.07 liter per second
Calculation flow rate hot water	0.07 liter per second
Functional principle	Hydraulic self-closing
Minimum flow pressure	1.00 bar
Volume flow rate at 3 bar	0.05 liter per second
Inlet size	G3-8
Type of mixing	With mixing
Adjustable flow time	Yes
Material fitting	Brass
Sound insulation	No
Spout projection	100.00 mm
Surface finish fitting	Chromed
Type of tap	Pillar tap
Depressurised	No
Thermal disinfection	No
Protective shutdown	No
Maximum flow time	20.00 seconds
Minimum flow time	5.00 seconds
Hygiene flushing	No

Teknisk specifikation

Unik ref.2030034411
ProduktfamiljTaps
ProduktgruppSelf closing taps
TypObjekt (enstaka objekt)
Publiceringsdatum2019-07-25
Edition nummer1
Höjd (mm)138
Bredd (mm)45

Länkar

Produkt-urlhttps://kwc.com/en/f3sm1001-self-closing-pillar-mixer_p2030034411
Installationsinstruktionerhttps://stpkwcprodaks01.blob.core.windows.net/public/assets/products/2030034411/mounting-instruction_2030039100.pdf

Relaterad

HuvudmaterialMässing
Designad iTyskland
Tillverkad iTyskland
Vikt netto (kg)1.35

Klassificering

BIMobjektkategoriSanitet - Badrumskranar och Fixturer
IFC klassificeringSanitetsterminal
Uniclass 2015 kodPr_40_20_87_84
Uniclass 2015 beskrivningSink taps
CSI MasterFormat 2014 Kod22 42 39
CSI MasterFormat 2014 TitelCommercial Faucets, Supplies, and Trim
OmniClass nummer23-31 11 00
OmniClass TitelFaucets
