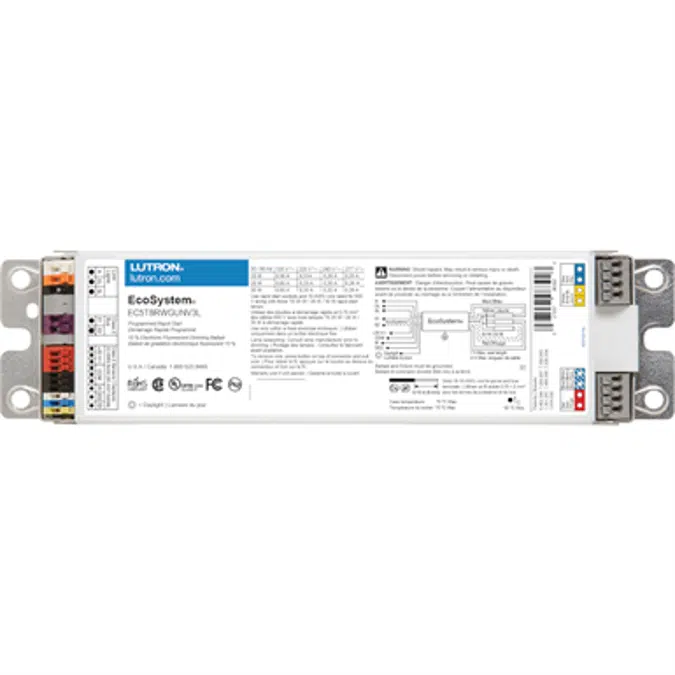

EcoSystem® Ballast, Type G and Type J Case, 10% Dimming, Non-Volatile Memory

Lutron Electronics

EcoSystem® Ballast, Type G and Type J Case, 10% Dimming, Non-Volatile Memory

EcoSystem ballasts are part of a revolutionary lighting control system composed of digitally addressable electronic dimming ballasts, controls and sensors. EcoSystem generates energy savings of 40% to 70%, improves occupant comfort and productivity, and increases space flexibility.

Features:

EcoSystem ballasts communicate via an EcoSystem digital bus and connect directly to sensors and controls
Also compatible with Lutron 3-wire fluorescent controls
Programmed rapid start design ensures full rated lamp life
Lamps turn on to any dimmed level without flashing to full brightness
Low harmonic distortion throughout the entire dimming range
Operating frequency ensures ballast does not interfere with IR devices
End-of-lamp-life protection circuitry ensures safe operation
Ultra-quiet operation
Non-volatile memory restores all ballast settings after power failure
Ballasts maintain consistent light output for differing lamp lengths
100% performance tested at factory

Ta kontakt med Lutron Electronics

Specifikation

Features
• Continuous, flicker-free dimming from 100% to 10%
• Integral sensor connection provides power for and
responds to one occupancy sensor, one photo
sensor, and one personal control input (infrared
receiver or wallstation)
• Communicates status and sensor inputs over the
EcoSystem digital link
• Programmed rapid start design ensures full rated
lamp life while dimming and cycling
• Lamps turn on to any dimmed level without flashing to
full brightness
• Low harmonic distortion throughout the entire
dimming range
• Frequency of operation ensures that ballast does not
interfere with infrared devices
• End-of-lamp-life protection circuitry ensures safe
operation throughout entire lamp life
• Ultra-quiet operation
• Non-volatile memory restores all ballast settings after
power failure
• Ballasts maintain consistent light output for linear lamp
lengths (e.g., 4 ft [1.5 m], 3 ft [1 m], 2 ft [0.5 m] have
same relative output)
• Protected from miswires of any input power to control
lead, or from lamp leads to each other and/or ground
• 100% performance tested at factory
• Custom ballast factors available. Design tool
and specifications can be found at
www.lutron.com/ballasttool
• BAA-compliant (Buy American Act) model numbers
available. Add a "U" prefix to the model number
