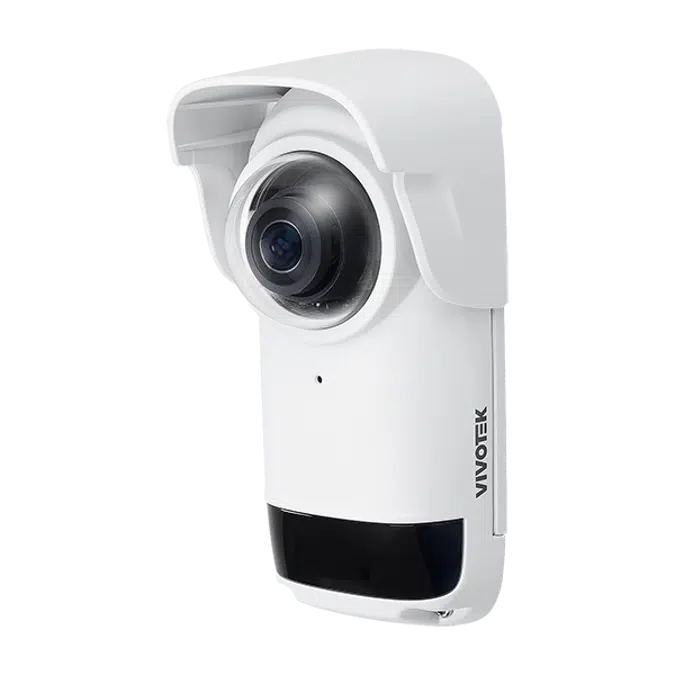

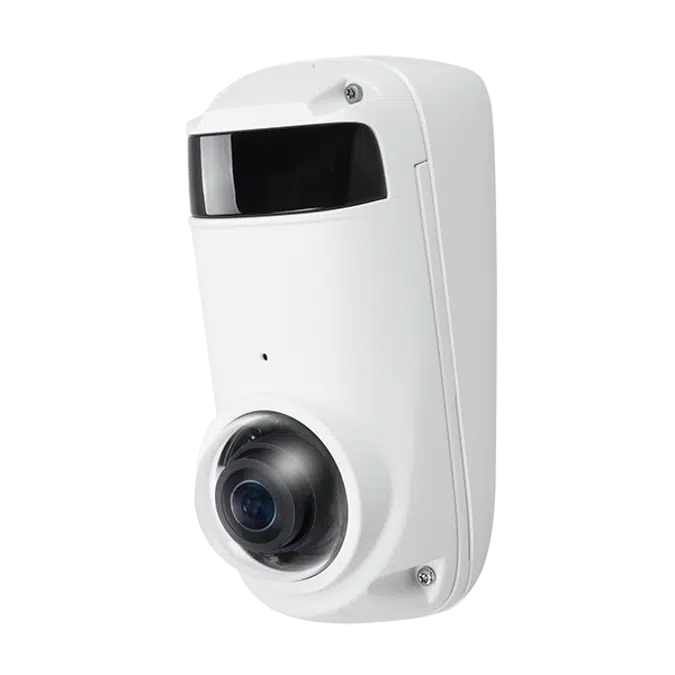

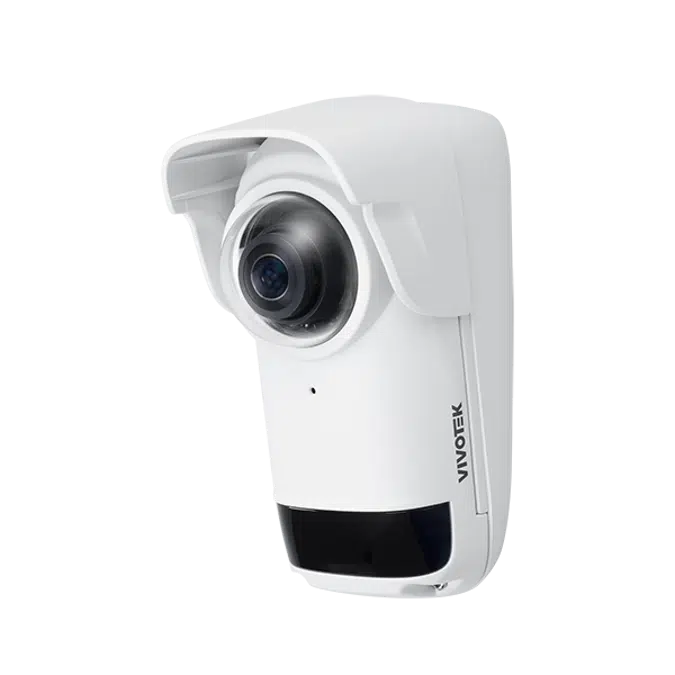

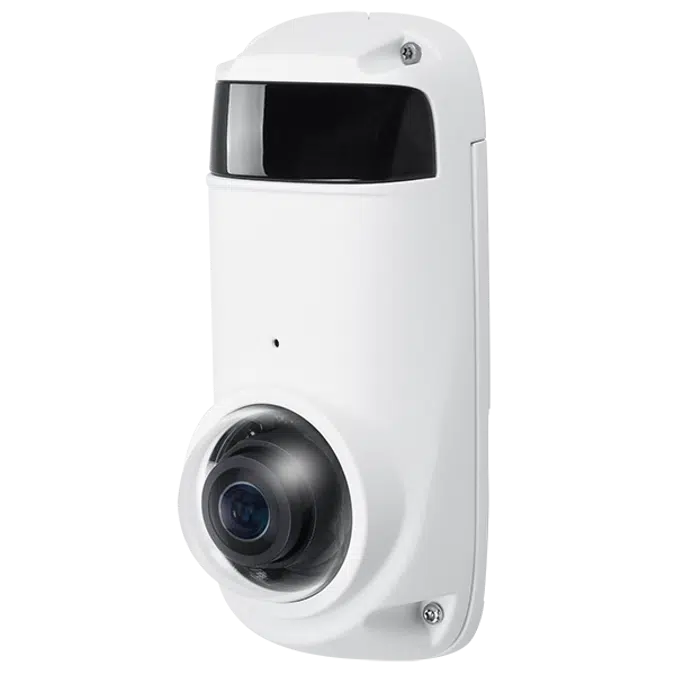

BIM-objekt - Gratis nedladdning! CC9391-HV 8MP IR Compact Panoramic AI Camera

System Information
- CPU: Multimedia SoC (System-on-Chip)
- Flash: 8 GB
- RAM: 2GB
Camera Specifications
- Image Sensor: 1/1.8" Progressive CMOS
- Max. Resolution: 3840x2160 (4K/8MP)
- Lens Type: Fixed-focal
- Focal Length: f = 2.53mm
- Aperture: F2.4
- Iris Type: Fixed Iris
- Field of View: 180° (Horizontal), 103° (Vertical), 180° (Diagonal)
- Shutter Time: 1 sec. to 1/100,000 sec.
- WDR Technology: WDR Pro
- Day/Night: Yes
- Removable IR-cut filter: Yes
- Illuminators: Built-in IR illuminators up to 20 meters with Smart IR , IR LED*4
- Minimum Illumination: 0.08 lux @ F2.4 (Color), 0.005lux @ F2.4 (B/W), 0 lux with IR Illumination on
- Tilt Range: ±20°
- Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
- Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS)
- Built-in Installation Aids: Pixel calculator
Video
- Compression: H.265, H.264, MJPEG
- Maximum Frame Rate: 30 fps @ 3840x2160
- Maximum Streams: 3 video streams (Up to 8 configurable profiles)
- S/N Ratio: 62 dB
- Dynamic Range: 120 dB
- Video Streaming: Adjustable resolution, quality and constrained bit rate control, Smart Stream III
- Image Settings:
  - General settings: video settings, video orientation (flip, mirror, rotation), day/night settings, smart image
  - Overlay settings
  - Illuminators: illuminators, anti-overexposure
  - Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto)
  - Exposure: exposure strategy (measurement window, metering mode), exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR
  - Privacy mask
  - Pixel calculator
  - Scheduled profile settings
Audio
- Audio Capability: One-way Audio
- Compression: G.711, G.726, MPEG-2 AAC-LC
- Interface: Built-in microphone
- Effective Range: 5 meters
Network
- Users: Live viewing for up to 10 clients
- Security: Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
- Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
- Interface: 10Base-T/100 BaseTX Ethernet (RJ-45)
- ONVIF: Profile G, S, T supported, specification available at www.onvif.org
AI Analytics
- Compute Capability: SoC with built-in hardware deep learning accelerator
- Vision Object Analytics:
  - Object Detection: People, Vehicle (4-wheeled, 2-wheeled)
  - Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
  - Re-Search Extraction
  - Path Extraction
- Application:
  - Deep Learning VCA (Smart Motion Detection, Smart VCA)
  - Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter)
  - Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
  - Application available with license: Running detection, Parking Violation Detection, Restricted Zone Detection
  - Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
Solution Integration
- VADP Package: Trend Micro IoT Security (3-year free trial)
Alarm and Event
- Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration
- Event Action: Event notification via audio clip, camera link, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
- Connectors: RJ-45 cable connector for 10/100 Mbps Network/PoE connection
- LED Indicator: System power and status indicator
- Power Input: IEEE 802.3af PoE Class 0
- Power Consumption: Max. 10.83W/7.5W (IR on/off)
- Dimensions: 160 x 72 x 60 mm
- Weight: 492 g
- Certifications:
  - EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
  - Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
  - Environment: IK10 (IEC 60529), IP66 (IEC 60529)
  - IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
- Operating Temperature:
  - Starting Temperature: -10°C ~ 55°C (14°F~131°F)
  - Working Temperature: -30°C ~ 55°C (-22°F~ 131°F)(IR on), -30°C ~ 60°C (-22°F~ 140°F)(IR off)
- Humidity: 98% RH (non-condensing)
System Requirements
- Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
- Web Browser: Chrome 58.0 or above, Internet Explorer 10/11
- Other Players: VLC: 1.1.11 or above
Included Accessories
- Packing Contents: Quick installation guide, mounting bracket, tilt bracket, screw pack, sunshield
DORI (EN 62676-4 Standard)
- Detection (25PPM/ 8PPF): 51.5 m (168.9 ft)
- Observation (63PPM/ 19PPF): 20.6 m (67.5 ft)
- Recognition (125PPM/ 38PPF): 10.3 m (33.7 ft)
- Identification (250PPM/ 76PPF): 5.1 m (16.7 ft)
