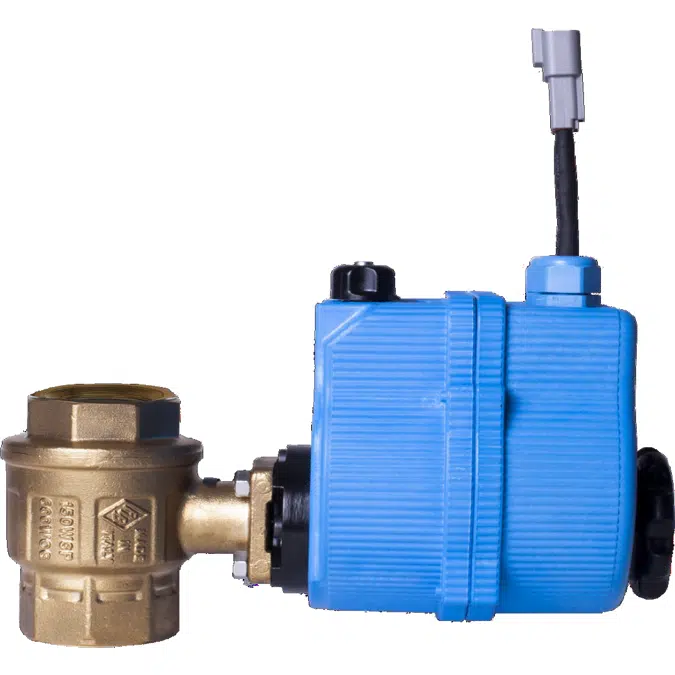

No Flow Monitoring Leak Defense System (LDS) - LDS-3-NFM

Automatic Valve Shutoff from Point of Leak Detectors (POLD)

Features

• Automatic or manual water shutoff valve
• With the No Flow Monitoring system, automatic water shutoff only happens from leaks detected at POLDs
• Custom proprietary control PCB internal to actuator
• Full-port lead-free brass ball valve
• Various alarm and alert types (See Controllers)
• Shut off a single valve or an entire zone with one touch
• Requires LDS-3-WCP or CCM and POLDs to interact with the valve actuator r.f./comm’s board
• Probe Board Enclosure is required for some installations

Specifikation

Feature List

Connections	Input NPT male (0.75" - 4") Output NPT female
Wall Power	NEMA 5-15R 120 VAC (Non-GFI)*
Transformer	NEMA 5-15P IN: 120VAC OUT: 24VAC (10ft cable length)
Non-Continuous Max Power Draw	2.0 amp @120VAC**
Continuous Idle Power Draw	0.1 amp
Optional Pressure Sensor	Contact Sales
Valve Position Confirmation	Yes
Communication	RF: 433 MHz valve to WCP/CCM*** Wired: RS-485 (TIA/EIA-485)
Cable Specification	Belden 2413F (Plenum), 2412 (Riser), 2149A (Outdoor), OSP6F (Underground) or equivalent
Max Water Pressure	600 PSI (@ 176°F)
Max Water Temperature	366°F (@ 96 PSI)
Mid-Range Temp /Pressure	250°F / 400 PSI
Max Ambient Temperature	133°F
Actuator Torque	133 to 1680 in-lbs 15 to 190 NM (size dependent)
Overload Torque Protection	Yes
Auto/Manual Modes	Yes, no tools required
Ball Valve	Lead-free, full port, blowout proof
Open/Close Cycle Time	8-15s (depending on size)
Actuator Enclosure	Self extinguishing techno-polymer RF transmissive (NEMA 4x)
Anti-Condensation Heater	Yes
Orientation (specify H or V)	No restrictions, vertical/horizontal 360°
Input Auto Reset PCB Fuse	Yes
Certifications	UL 1951, CSA C22.2 No. 14, 18, NSF 61 & 372
