Z888-12 Hi-Cap® Slotted Drainage System

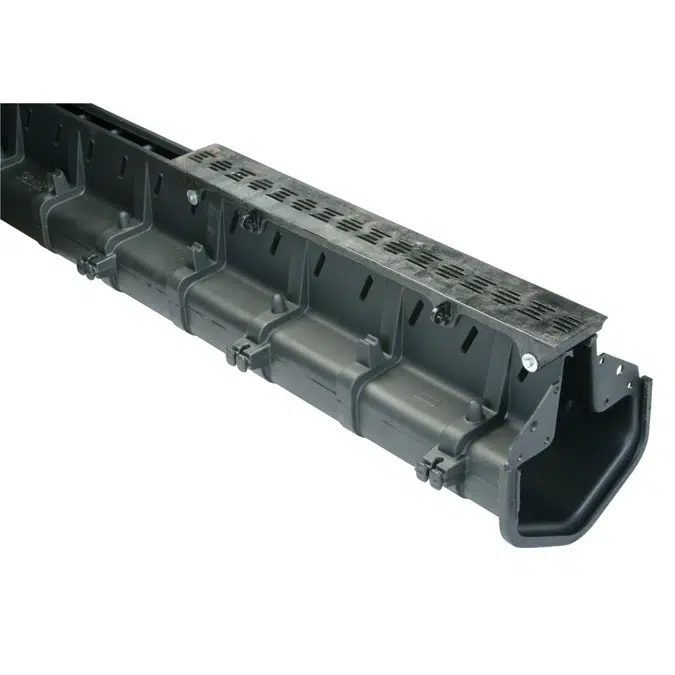

Zurn Z888-12 Slotted Drain channel is 80 [2032] long, 14.25 [362] deep invert, 12.5 [318] wide with a 1.75 [44] throat width, made from LLDPE linear Low Density Polyethylene. Channels have a mechanical tongue and groove and bolted connection, mechanically lock into the concrete surround every 5 [127] along it's length, channels weigh 5.6 lbs. per foot [8.3 kg per meter]. Channel has a smooth 2.5 [64] radiused bottom with a smooth .011 Manning’s coefficient, and neutral non-sloping body. Top reveal is non removable and is the finish at the surface, Zip Strip is standard to keep debris out during the construction process. System is anchored into the concrete with Rebar clips or physical anchors every 5 [127] to 10 [254] along the channel body. Integral Rebar Clips are standard. Minimum 2000 psi concrete encasement shall include longitudinal #4 0.5 [13] rebar along chairs on either side of the trench neck. System is capable of Supporting H-20/H-25 Top Load Classification. Specifying engineer is responsible for concrete encasement and reinforcing based upon application and local codes.

Features:

• Integral rebar clips for elevation set
• Mechanical interlocking connections
• Labor saving lightweight construction
• Smooth radiused interior provides superior hydraulic performance
• USA configurable
