Thomas & Betts: AFM4R Steel City ® Access Floor Modules

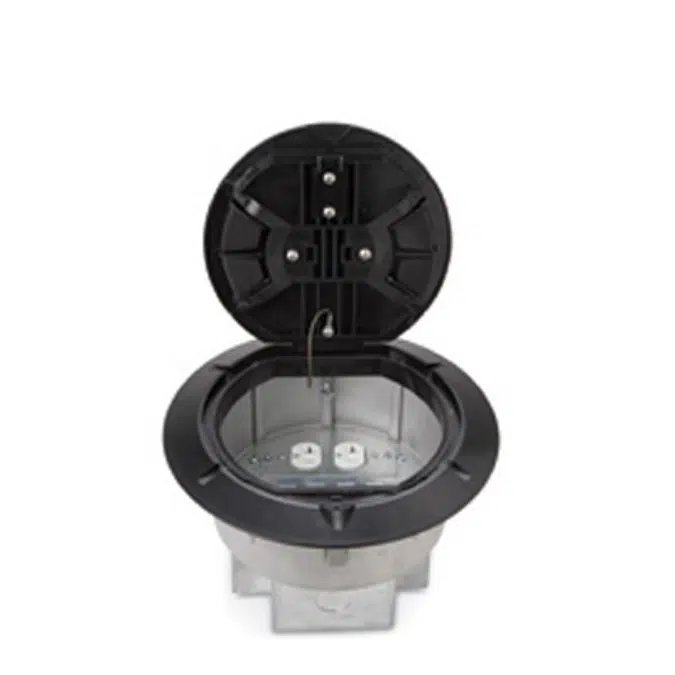

In response to industry demand for a more symmetrical approach to raised-floor power and data access, Thomas & Betts introduces the latest addition to the Steel City® Access Floor Module (AFM) line. The AFM-4R features a round construction that matches the aesthetics of air diffusers commonly used in raised-floor applications.

Round design enables the box to be installed in the same size hole as standard air diffusers — eliminates the need for multiple raised-floor tiles with custom-sized cutouts (and round holes are faster and easier to cut than square/rectangular ones)
Three-compartment stamped-steel box with voltage dividers accommodates both power and data outlets
Durable black polycarbonate cover features two cable-entry lids that lock in the open position to prevent cable damage
Optional power tunnel links outside power compartments to feed both compartments with a single conduit — while still allowing for communications wiring in the center
Two thumbscrews secure AFM-4R firmly in place, but remove easily for reconfiguration
Fits into holes ranging from 81/4" to 8 3/4" in diameter
Outside compartments: 21 cu. in. capacity, 3/4" KO on side, 1/2" KO on each end, 1/2" KO and 3/4" KO on bottom
Center compartment: 40 cu. in. capacity, 11/4" KO on each end, two removable access plates with 3/4" KO on bottom

Teknik özellikler

Benzersiz ref.tnb-afm4r
Ürün ailesiUnderfloor Wireways
Ürün grubuAFM4R
TipObje (Tekil Nesne)
Yayınlanma tarihi2022-03-14
Baskı numarası1

Bağlantılar

Ürün URL’sihttp://www-public.tnb.com/ps/fulltilt/index.cgi?part=AFM4RBLK

Sınıflandırma

BIMobject kategorisiElektrik - Dağıtım
