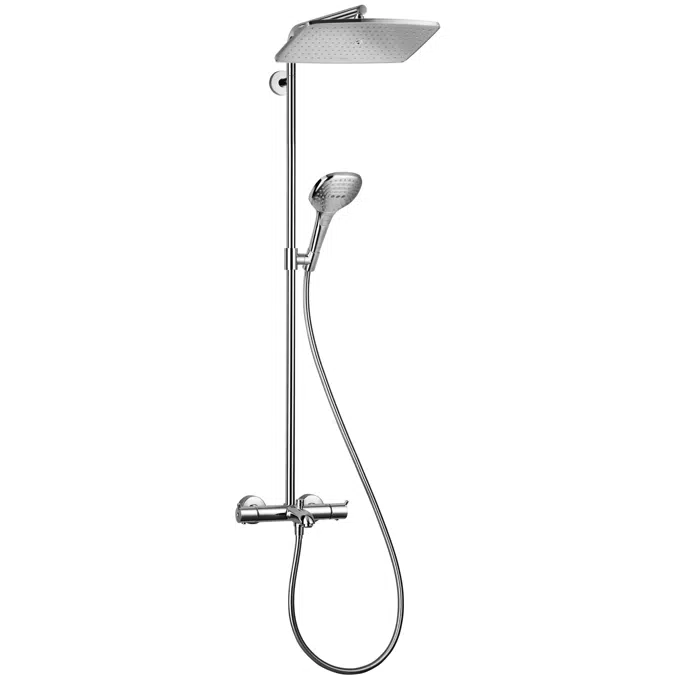

Raindance E Showerpipe 360 1jet EcoSmart 9 l/min with bath thermostat

Özellikler

Özellikler

• Surfaces: - 26162007 Chrome Specification: • consists of: overhead shower, hand shower, bath thermostat, shower hose, slider • overhead shower Raindance E 360 Air • shower head size overhead shower: 360 x 190 mm • spray type overhead shower: RainAir • ball-joint: overhead shower angle adjustable • maximum flow rate at 3 bar: 21,2 l/min • flow rate of hand shower at 3 bar: 10 l/min • min. operating pressure: 1 bar • max. operating pressure: 6 bar • shower arm length overhead shower: 390 mm • thermostat Ecostat Comfort • safety lock at 40°C • adjustable hot water limitation • outlets controlled via turning handle • suitable for continuous flow water heaters • mounting type: exposed installation • connection dimension DN15 • connection thread G ½ • centre distance 150 ± 12 mm • intrinsically safe against backflow • installation: wall-mounted • amount of outlet: 3 functions

Teknik özellikler

Teknik özellikler

• Benzersiz ref.26162007
• Ürün ailesiShowerpipes with thermostat
• Ürün grubuRaindance E
• TipObje (Tekil Nesne)
• Yayınlanma tarihi2022-11-23
• Baskı numarası1

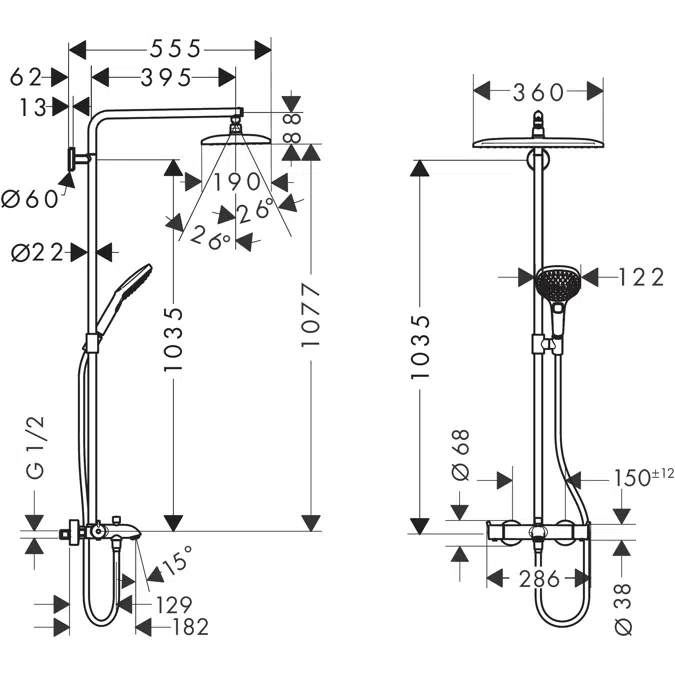

• Yükseklik (mm)1100
• Genişlik (mm)360
• Derinlik (mm)555

Bağlantılar

Bağlantılar

• Ürün URL’sihttps://www.hansgrohe.com.cn/articledetail--26162007

İlgili

İlgili

• Tasarım yeriAlmanya
• Üretim yeriAlmanya
• Ağırlık net (Kg)7

Sınıflandırma

Sınıflandırma

• BIMobject kategorisiHijyenik - Duşlar
• IFC sınıflandırmasıHijyen Terminali
• ETIM KoduEC011613
• ETIM AdıShower column/panel
• UNSPSC adıShowers
• UNSPSC kodu30181503
• Uniclass 2015 koduPr_40_20_87_76
• Uniclass 2015 açıklamasıShower heads
• CSI MasterFormat 2014 kodu22 41 23
• CSI MasterFormat 2014 başlığıResidential Showers
• OmniClass numarası23-31 17 00
• OmniClass başlığıShowers
• CSI UniFormat II koduD2010
• CSI UniFormat II başlığıPlumbing Fixtures
