Essentiel Adjustable Paving Riser Pedestal
Essentiel Adjustable Paving Riser Pedestal
Essentiel Adjustable Paving Riser Pedestal
Essentiel Adjustable Paving Riser Pedestal
Essentiel Adjustable Paving Riser Pedestal
    JOUPLAST

    Essentiel Adjustable Paving Riser Pedestal

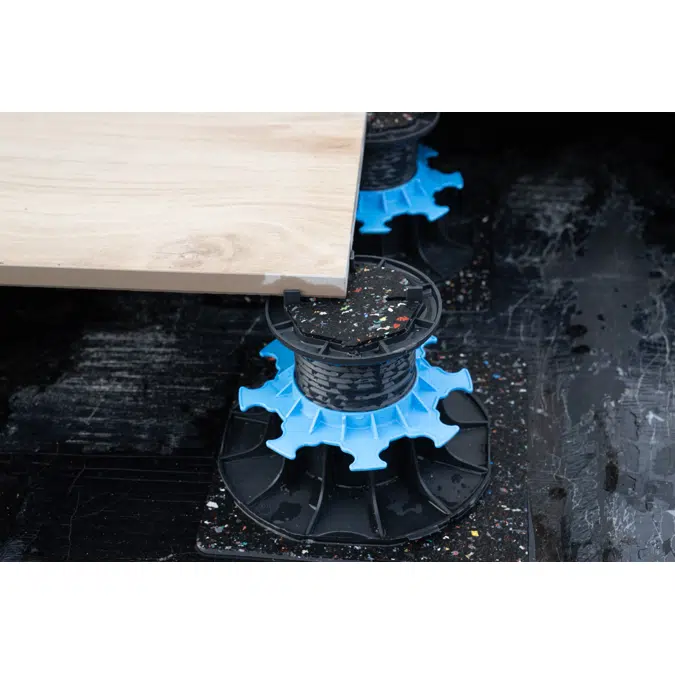

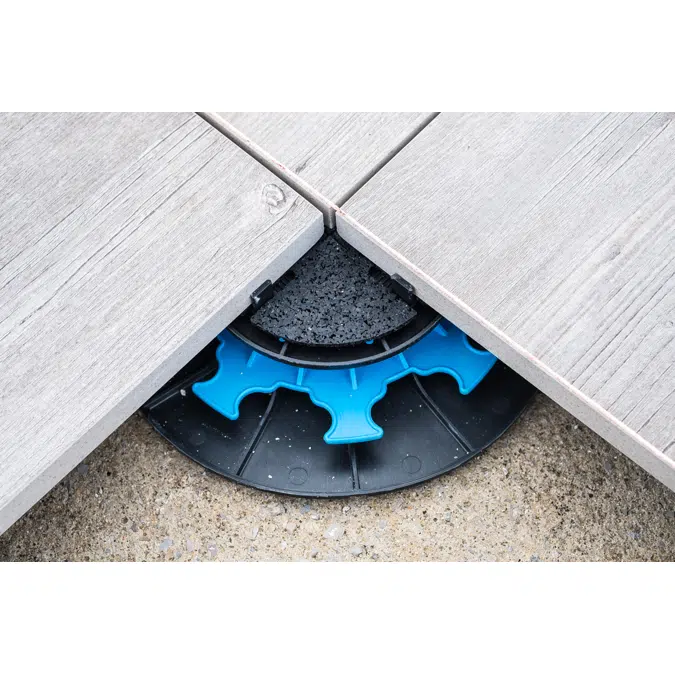

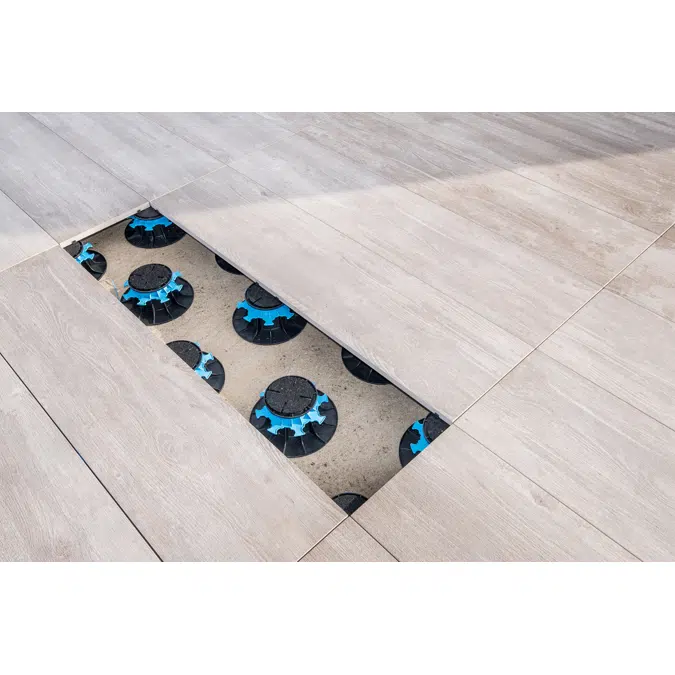

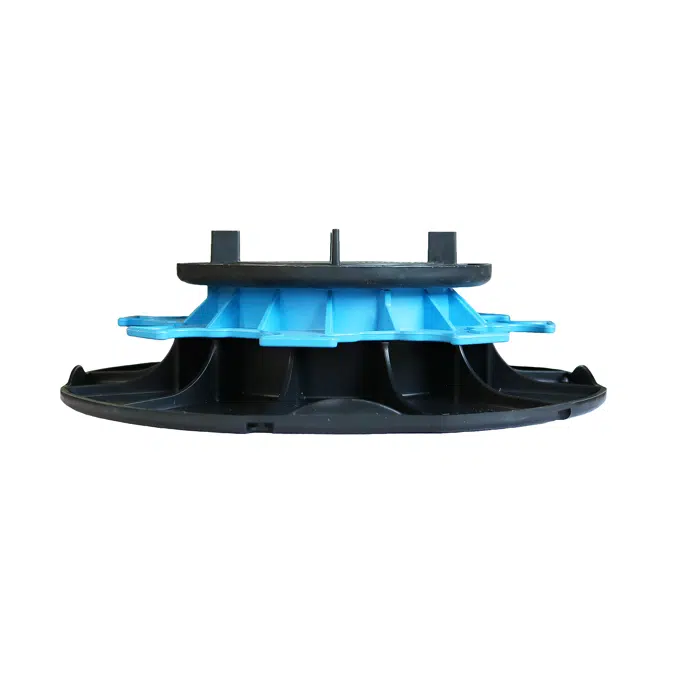

    Height-adjustable riser pedestal designed for tiled, ceramic or slab terraces intended for pedestrian use. Located beneath tile corners at each intersection, it allows air to circulate freely, prevents rising damp and leaves space for cable and pipe runs. By removing the need for arduous earthmoving and joints, it makes the whole process of terrace and patio construction easier. The manual screw adjuster enables precise height adjustment. Hot tubs can also be installed on rise pedestals using the PROFILDECK solution.

    Heights :

    • 8/20 mm
    • 10 mm
    • 20/30 mm
    • 20/40 mm
    • 40/60 mm
    • 50/80 mm
    • 80/140 mm
    • 140/230 mm
    Özellikler
      • Millimetre-accurate manual height adjustment using the screw adjuster: no other tools are required.
      • Complies with French technical standard DTU 43.1.
      • Quick and easy to install.
    Teknik özellikler
    • Benzersiz ref.essentiel-adjustable-paving-riser-pedestal
    • TipObje (Tekil Nesne)
    • Yayınlanma tarihi2026-06-24
    • Baskı numarası1
    İlgili
    • Ana malzemePolipropilen
    • Tasarım yeriFransa
    • Üretim yeriFransa
    Sınıflandırma
    • BIMobject kategorisiZemin Kaplama - Döşeme Sistemleri
    • Uniclass 2015 koduSs_30_42_32_30
    • Uniclass 2015 açıklamasıExternal floor tiling systems
    • OmniClass numarası23-15 17 11
    • OmniClass başlığıFlooring Specialties and Accessories

    Bölge bulunurluk durumu

    Avrupa
    Almanya
    Belçika
    Fransa
    İngiltere
    İspanya
    İsviçre
