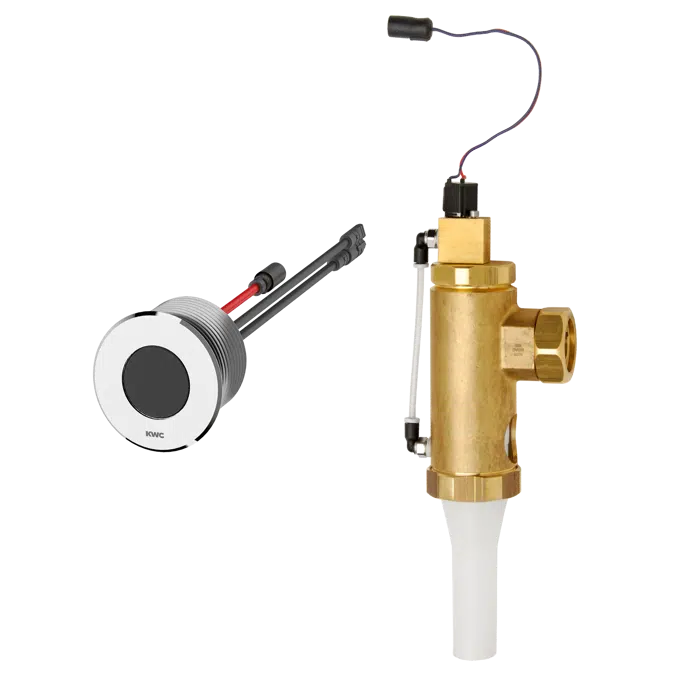

F5E WC flush valve F5EF4002

F5E WC flush valve DN 20 for concealed mounting, opto-electronically controlled. With circular sensor (diameter 55 mm), integrated control electronics and cleaning deactivation. Manufactured from polished chromium-plated brass, designed to be screwed from the rear, with anti-twist protection and solenoid flusher with extension cable for solenoid valve (length 5 m). Activated hygiene flushing 24 hours after last activation and saving of statistical data. With option for parametrisation and communication via optional bidirectional remote control. Options for battery operation with 6 V lithium battery (CR-P2) per fitting or separate power supply via power supply unit 6.75 V/12 V DC or AQUA 3000 open system accessories.

Battery compartment including battery or power supply unit with extension cable must be ordered separately.

Özellikler

calculation flow rate cold water	1 l/s
default automatic hygiene flushing	24h after the last activity
functional principle	electronic self-closing
diameter nominal	DN 20
material casing	brass-look
material fitting	brass-look
maximum flow pressure	4 bar
maximum flushing flow	1.3 l/s
maximum flush water volume	9 Liter
minimum flow pressure	1.2 bar
minimum flushing flow	1 l/s
minimum flush water volume	6 Liter
parameterization	remote control
power supply connection	6,75 / 12 V DC / A3000 open
power consumption	3.5 Voltampere
type of power supply	Transformer
protective shutdown	yes
sound insulation	no
surface finish casing	chromed
with transformer/power supply	no
type of flushing fitting	WC flush valve
type of mounting	concealed
type of operation	sensor operation
type of sensor	opto-electronic sensor

Teknik özellikler

Benzersiz ref.2030062326
Ürün ailesiFlushing systems
Ürün grubuElectronic WC flushing systems
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-10
Baskı numarası1
Yükseklik (mm)55
Genişlik (mm)55

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p2030062326

İlgili

Ana malzemePirinç
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)1.33

Sınıflandırma

BIMobject kategorisiHijyenik - Banyo Kurulum Sistemleri
Uniclass 2015 koduPr_75_50_46_31
Uniclass 2015 açıklamasıFlush control devices
