F5E Electronic urinal flush valve F5EF3010

F5E urinal flush valve DN 15 and installation kit for in-wall installation with basic installation kit, opto-electronically controlled. With self-closing solenoid valve cartridge, holding frame, stainless steel cover plate 120 x 150 mm with covered screw fixing including sensor with control electronics and strainer. Activated water hygiene flushing 24 hours after last activation and saving of statistical data. With option for parametrisation and communication via optional, bidirectional remote control. Option for battery operation with 6 V lithium battery (CR-P2) per fitting or separate power supply via power supply unit 6.75 V/12 V DC or AQUA 3000 open system accessories.

Battery compartment including battery or power supply unit with extension cable must be ordered separately.

Özellikler

built-in fitting model	Finishing section

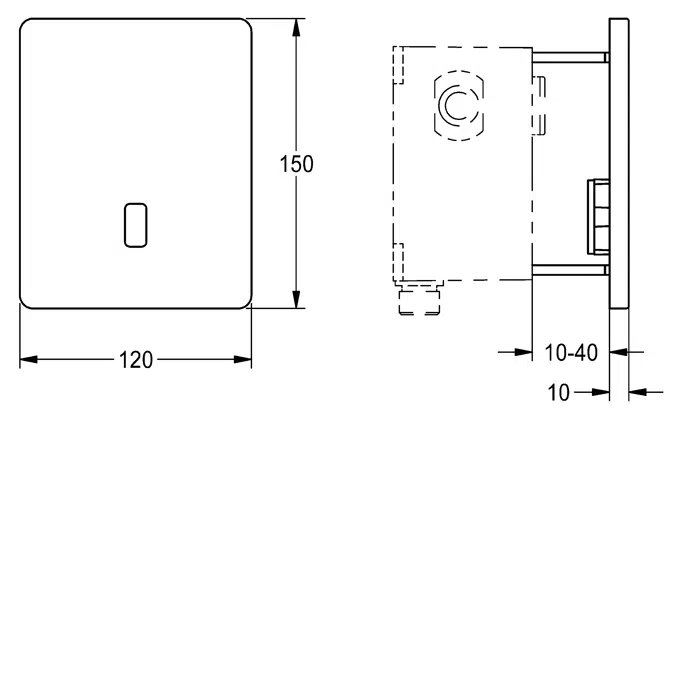

cover plate height	150 mm
cover plate width	120 mm
default automatic hygiene flushing	24h after the last activity
functional principle	electronic self-closing
hygiene flushing	yes
diameter nominal	DN 15
material casing	stainless steel
material fitting	brass-look
minimum flow pressure	1 bar
parameterization	remote control
power supply connection	6,75 / 12 V DC / A3000 open
type of power supply	other
surface finish casing	satin finished
with transformer/power supply	no
type of flushing fitting	urinal flush valve
type of mounting	in-wall installation with box
type of operation	sensor operation
type of sensor	opto-electronic sensor

Teknik özellikler

Benzersiz ref.2030067743
Ürün ailesiFlushing systems
Ürün grubuElectronic urinal flushing systems
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-11
Baskı numarası1
Yükseklik (mm)150
Genişlik (mm)120
Derinlik (mm)10

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p2030067743

İlgili

Ana malzemePaslanmaz Çelik
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)0.44

Sınıflandırma

BIMobject kategorisiHijyenik - Banyo Kurulum Sistemleri
Uniclass 2015 koduPr_75_50_46_31
Uniclass 2015 açıklamasıFlush control devices
