F5E Electronic WC flush F5EF4004

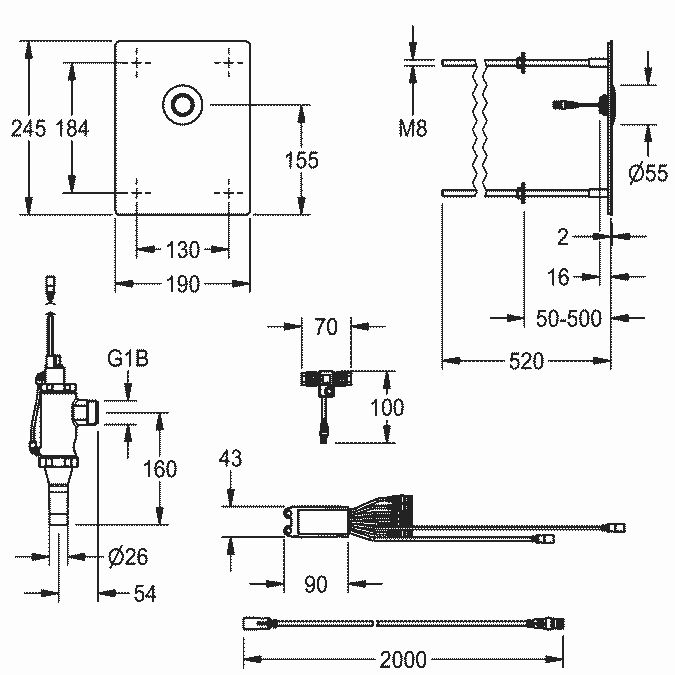

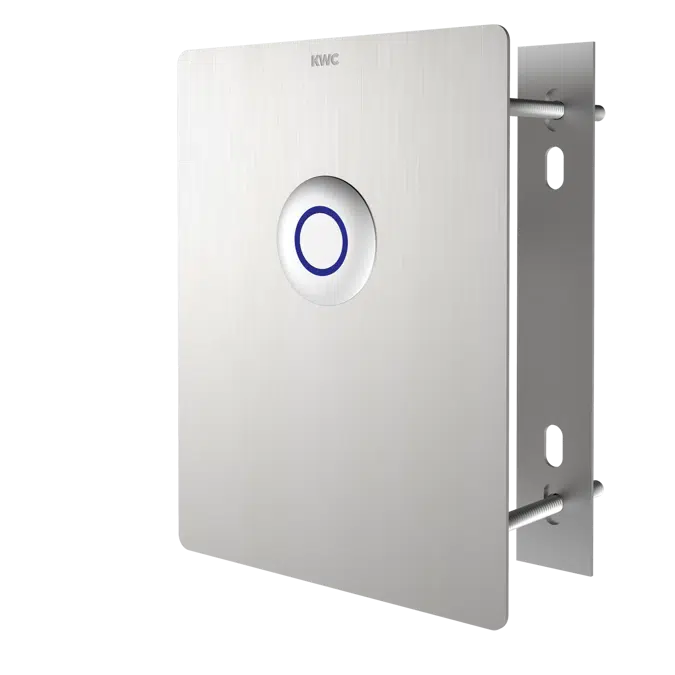

F5E - A3000 open WC flush valve for concealed mounting, electronically controlled. Especially suitable for facilities at risk of vandalism. With waterproof electronic module with additional input for sensors to be provided by the client, maximum distance to the electronic module 5 m, solenoid flush valve including enclosed throttle insert for reducing flush volume, waterproof electrical T-junction for connection to system cable, stainless steel cover plate 190 x 245 x 2 mm for invisible mounting via threaded rods, up to a wall thickness of 50 to 500 mm, including piezo push-button and 2 m extension cable. Activated hygiene flushing 24 hours after the last activity. With facility for parameterization, cleaning deactivation and communication via ECC2 function controller, 24 V DC.

Özellikler

cover plate height	245 mm
cover plate width	190 mm
default automatic hygiene flushing	24h after the last activity
flushing volume adjustable	yes
functional principle	electronic self-closing
hygiene flushing	yes
diameter nominal	DN 20
material casing	stainless steel
material code casing	1.4301 Chrome Nickel steel V2A
material fitting	brass-look
maximum flow pressure	4 bar
maximum flushing flow	1 l/s
maximum flush water volume	9 Liter
minimum flow pressure	1.2 bar
parameterization	network
power supply connection	A3000 open 24 V DC
power consumption	2.5 Voltampere
type of power supply	Transformer
protective system IP	IP59K
protective shutdown	yes
sound insulation	no
surface finish casing	satin finished
with transformer/power supply	no
type of flushing fitting	WC flush valve
type of mounting	concealed
type of operation	sensor operation
type of sensor	piezo-electronic sensor
basic colour	stainless steel-look

Teknik özellikler

Benzersiz ref.2030068198
Ürün ailesiFlushing systems
Ürün grubuElectronic WC flushing systems
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-11
Baskı numarası1
Yükseklik (mm)245
Genişlik (mm)190

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p2030068198

İlgili

Ana malzemePaslanmaz Çelik
İkincil malzemePirinç
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)3.1

Sınıflandırma

BIMobject kategorisiHijyenik - Banyo Kurulum Sistemleri
Uniclass 2015 koduPr_75_50_46_31
Uniclass 2015 açıklamasıFlush control devices
