F5E Shower panel F5EV2008

F5E - A3000 open shower panel made of stainless steel for wall mounting with straight-way valve and connecting nozzles for shower head. Electronically controlled, for connection from the rear to pre-mixed hot or cold water. Connecting nozzles for the required additional DN 15 KWC shower head with pre-fitted flow regulator 9.0 l/min. Housing made of stainless steel, single-piece enclosed, including safety screws. With solenoid valve, piezo push-button with start/stop function, waterproof electronic module, electric T-junction for connection to system cable, connecting hose with lockable water flow regulator and strainer. Activated hygiene flushing 24 hours after the last activity. With facility for parameterization, cleaning deactivation and communication via ECC2 function controller, 24 V DC.

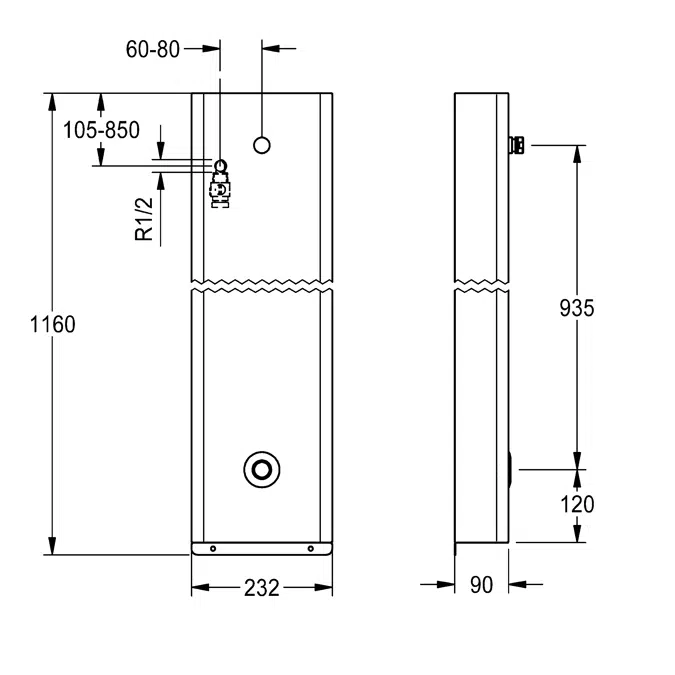

Dimensions of housing 232 x 1160 x 90 mm (W x H x D)

Shower head must be ordered separately.

Özellikler

additional connections	no
with backflow preventer	yes
circulation	no
compatible A3000 open	yes
connection with pay water dispenser	via electronic module
default automatic hygiene flushing	24h after the last activity
default flow time	30 Seconds
with filter	yes
adjustable flow time	yes
functional principle	electronic self-closing
for hand shower	no
hygiene flushing	yes
diameter nominal	DN 15
inlet size	G 1/2 A
locking mechanism	Top section, non-ceramic
material casing	stainless steel
material code casing	1.4301 Chrome Nickel steel V2A
material fitting	brass-look
maximum flow time	6,500 Seconds
minimum flow pressure	1 bar
minimum flow time	1 Seconds
type of mixing	no
overall depth	90 mm
overall height	1,160 mm
overall width	232 mm
parameterization	network
power supply connection	A3000 open 24 V DC
position of power connection	from backside
type of power supply	Transformer
protective system IP	IP59K
with rosettes/cover plate	yes
protective shutdown	yes
shower pipe draining	no
shower head	for separately shower head
with shower set	no
sound insulation	no
surface finish casing	satin finished
surface treatment fitting	none
temperature limit	no
with transformer/power supply	no
type of mounting	wall mounting
type of operation	sensor operation
type of sensor	piezo-electronic sensor
type of shower	shower panel
volume flow rate at 3 bar	0.15 l/s
water connection	hose (gland nut)
position of water connection	from backside
with soap dish	no
accent colour	chrome-look (glossy)
basic colour	stainless steel-look

Teknik özellikler

Benzersiz ref.2030070434
Ürün ailesiShowers
Ürün grubuElectronic self closing showers
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-10
Baskı numarası1
Yükseklik (mm)1160
Genişlik (mm)232
Derinlik (mm)90

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p2030070434

İlgili

Ana malzemePaslanmaz Çelik
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)7.46

Sınıflandırma

BIMobject kategorisiHijyenik - Duşlar
Uniclass 2015 koduPr_40_20_87_75
Uniclass 2015 açıklamasıShower fittings package
