F3S Shower panel F3SV2012

F3S shower panel made of stainless steel for wall mounting with DN 15 self-closing straight-way valve and connecting nozzles for shower head. Especially suitable for facilities at risk of vandalism. Hydraulically controlled, for connection from the rear to pre-mixed hot or cold water. Self-closing functional part, piston-free design, self-closing and stepless adjustment of flow duration. Valve housing including shuttle valve seat, visible parts polished chromium-plated. Connecting nozzles for the required additional DN 15 KWC shower head with pre-fitted flow regulator 9.0 l/min. Housing made of stainless steel, single-piece enclosed, including safety screws. Connecting hose with lockable water flow regulator and strainer.

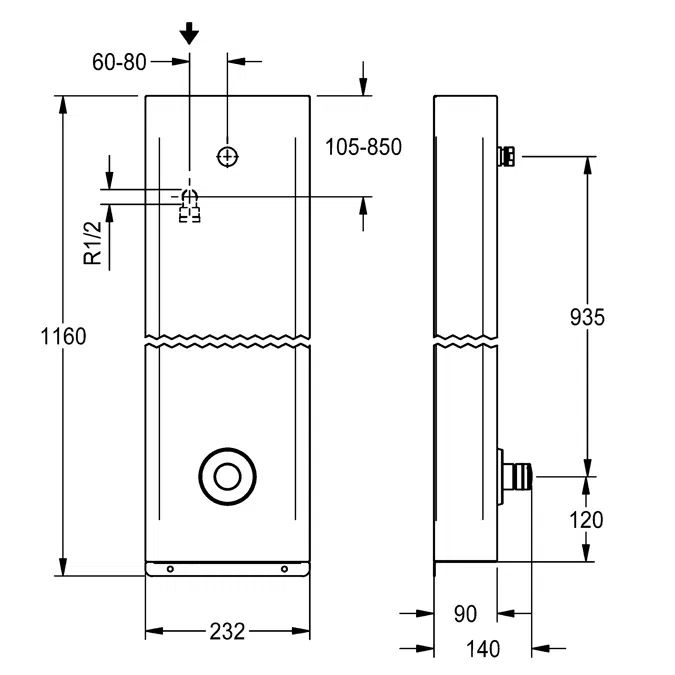

Housing dimensions 232 x 1160 x 90 mm (W x H x D)

Shower head must be ordered separately.

Özellikler

additional connections	no
with backflow preventer	yes
circulation	no
compatible A3000 open	no
connection with pay water dispenser	not possible
with filter	yes
adjustable flow time	yes
functional principle	hydraulic self-closing
for hand shower	no
hygiene flushing	no
diameter nominal	DN 15
inlet size	G 1/2 A
locking mechanism	Top section, ceramic
material casing	stainless steel
material code casing	1.4301 Chrome Nickel steel V2A
material fitting	brass-look
maximum flow time	35 Seconds
minimum flow pressure	1.5 bar
minimum flow time	5 Seconds
type of mixing	no
overall depth	90 mm
overall height	1,160 mm
overall width	235 mm
with rosettes/cover plate	yes
protective shutdown	no
shower pipe draining	no
shower head	for separately shower head
with shower set	no
sound insulation	no
surface finish casing	satin finished
surface finish fitting	chromed
surface treatment fitting	polished
temperature limit	no
thermal disinfection	no
type of mounting	wall mounting
type of operation	manual operation
type of shower	shower panel
volume flow rate at 3 bar	0.15 l/s
water connection	hose (gland nut)
position of water connection	from top / backside
with soap dish	no
accent colour	chrome-look (glossy)
basic colour	stainless steel-look

Teknik özellikler

Benzersiz ref.2030070435
Ürün ailesiShowers
Ürün grubuSelf closing showers
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-10
Baskı numarası1
Yükseklik (mm)1160
Genişlik (mm)232
Derinlik (mm)90

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p2030070435

İlgili

Ana malzemePaslanmaz Çelik
İkincil malzemePirinç
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)7.6

Sınıflandırma

BIMobject kategorisiHijyenik - Duşlar
Uniclass 2015 koduPr_40_20_87_75
Uniclass 2015 açıklamasıShower fittings package
