F5S Self-closing mixer F5SM1012

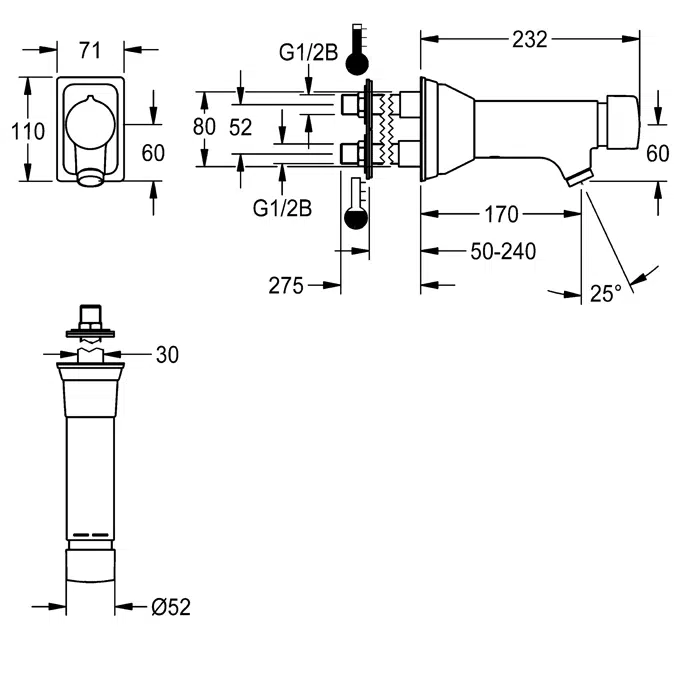

F5S-Mix self-closing wall-mounted mixer DN 15 as single mixer with angled outlet, for sanitary facilities, for concealed mounting. Especially suitable for facilities at risk of vandalism. FRAMIC self-closing mixer cartridge, hydraulically controlled, low-maintenance and stagnation-free, with ceramic disc technology, self-closing, flow pressure-independent due to medium separated design. Stepless adjustment of flow duration. With adjustable and turn-proof temperature stop with backflow preventers and strainers. For connection to hot and cold water. All-metal construction, polished, chromium-plated brass. Anti-theft aerator with integrated flow regulator 6.0 l/min. Connecting flange with overlapping wall bushings for wall thicknesses from 50 to 240 mm.

Other wall thicknesses on request.

Özellikler

with backflow preventer	yes
calculation flow rate cold wat	0.07 l/s
calculation flow rate hot wate	0.07 l/s
depressurised	no
with filter	yes
adjustable flow time	yes
functional principle	hydraulic self-closing
hygiene flushing	no
diameter nominal	DN 15
inlet size	G 1/2 B
Locking mechanism	Top section, ceramic
material fitting	brass-look
maximum flow time	35 Seconds
minimum flow pressure	1 bar
minimum flow time	5 Seconds
type of mixing	yes
with rosettes/cover plate	yes
protective shutdown	no
sound insulation	no
Spout	fixed
spout projection	170 mm
surface finish fitting	chromed
surface treatment fitting	polished
temperature limit	yes
thermal disinfection	no
type of mounting	concealed
type of operation	manual operation
type of tap	bib tap
volume flow rate at 3 bar	0.1 l/s
water connection	threaded connection (external)
Accent colour	none
Basic colour	chrome-look (glossy)

Teknik özellikler

Benzersiz ref.2030071618
Ürün ailesiTaps
Ürün grubuSelf closing taps
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-10
Baskı numarası1
Genişlik (mm)71
Derinlik (mm)232

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p2030071618

İlgili

Ana malzemePirinç
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)4.63

Sınıflandırma

BIMobject kategorisiHijyenik - Musluklar/ Bataryalar
Uniclass 2015 koduPr_40_20_87_98
Uniclass 2015 açıklamasıWashbasin taps
