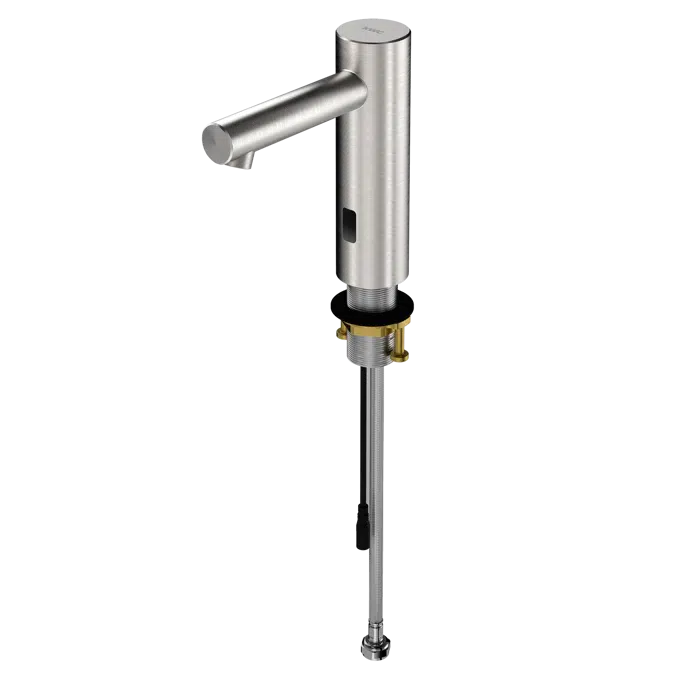

F7E Electronic pillar tap F7EV1001

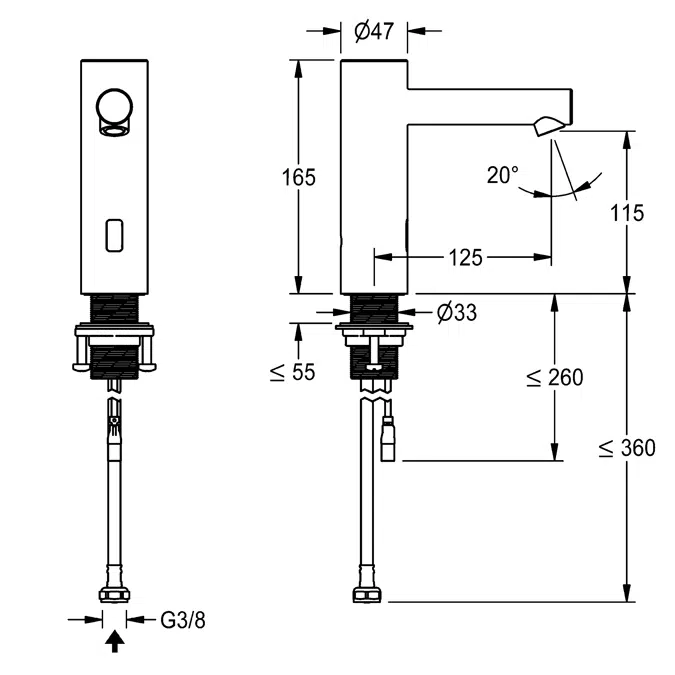

F7E pillar tap DN 15 for sanitary facilities, opto-electronically controlled. For connection to pre-mixed hot or cold water via hose and strainer. Control electronics, solenoid valve and sensor in stainless steel housing, brushed surface, outlet height 115 mm and projection 125 mm. Angle-adjustable and anti-theft aerator with integrated flow regulator 5.7 l/min. Activated water hygiene flushing 24 hours after last activation, safety switch-off with continuous reflection and saving of statistical data. With option for parameterization and communication via optional bidirectional remote control or C module with the necessary app. Optionally for battery operation with battery compartment including 6 V lithium battery (CR-P2) per fitting, for installation below the washbasin, or for separate power supply via power supply unit 6.75 V/12 V DC or AQUA 3000 open system accessories.

Battery compartment including battery or power supply unit with extension cable must be ordered separately.

Özellikler

with backflow preventer	no
compatible A3000 open	yes
default automatic hygiene flushing	24h after the last activity
depressurised	no
with filter	yes
functional principle	electronic self-closing
hygiene flushing	yes
diameter nominal	DN 15
inlet size	G 3/8
locking mechanism	Top section, non-ceramic
material fitting	stainless steel
minimum flow pressure	1 bar
type of mixing	no
parameterization	remote control
pop-up waste set	no
power supply connection	6,75 / 12 V DC / A3000 open
position of power connection	from bottom
type of power supply	other
with rosettes/cover plate	no
protective shutdown	yes
sound insulation	no
spout	fixed
surface finish fitting	brushed
surface treatment fitting	brushed
temperature limit	no
thermal disinfection	no
with transformer/power supply	no
type of mounting	tap hole
type of operation	sensor operation
type of sensor	opto-electronic sensor
type of tap	pillar tap
water connection	hose (gland nut)
accent colour	none
basic colour	stainless steel-look

Teknik özellikler

Benzersiz ref.3600001255
Ürün ailesiTaps
Ürün grubuElectronic taps
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-10
Baskı numarası1
Yükseklik (mm)165

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p3600001255

İlgili

Ana malzemePaslanmaz Çelik
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)1.5

Sınıflandırma

BIMobject kategorisiHijyenik - Musluklar/ Bataryalar
Uniclass 2015 koduPr_40_20_87_98
Uniclass 2015 açıklamasıWashbasin taps
