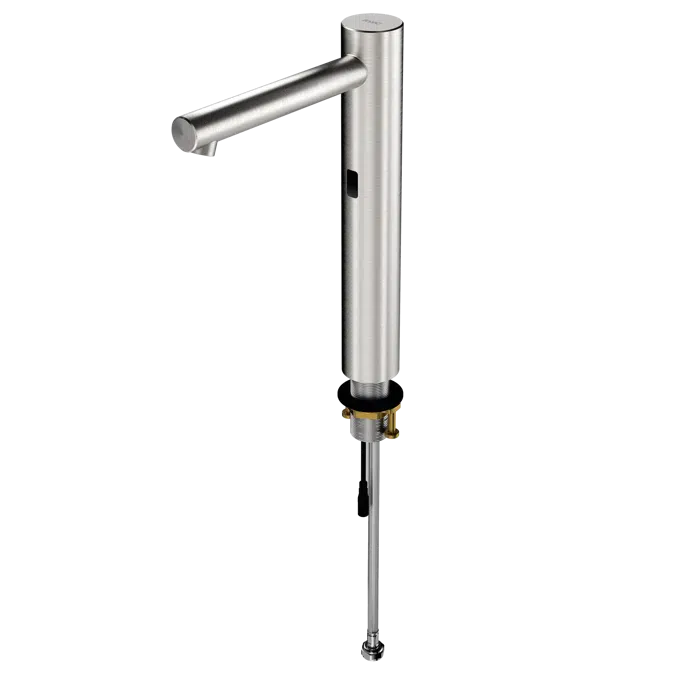

F7E Electronic pillar tap F7EV1002
F7E Electronic pillar tap F7EV1002

    F7E Electronic pillar tap F7EV1002

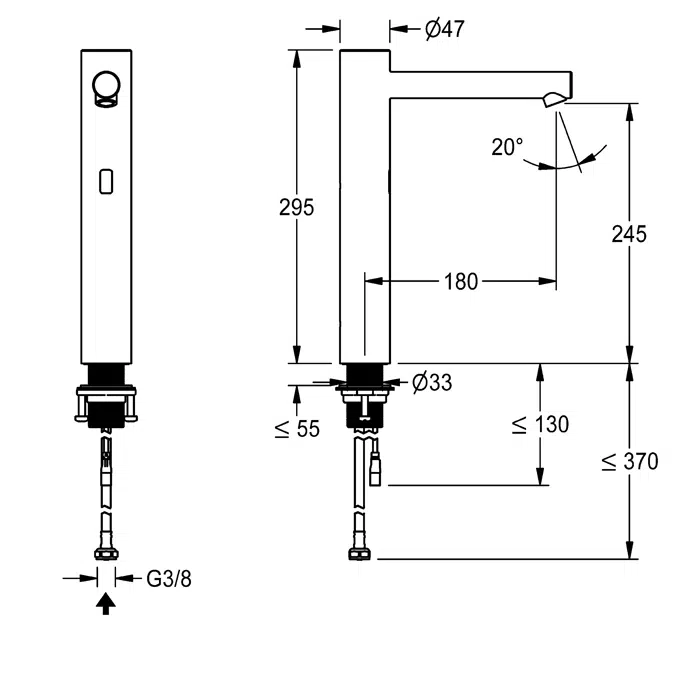

    F7E pillar tap DN 15 for sanitary facilities, opto-electronically controlled. For connection to pre-mixed hot or cold water via hose and strainer. Control electronics, solenoid valve and sensor in stainless steel housing, brushed surface, outlet height 245 mm and projection 180 mm. Angle-adjustable and anti-theft aerator with integrated flow regulator 5.7 l/min. Activated water hygiene flushing 24 hours after last activation, safety switch-off with continuous reflection and saving of statistical data. With option for parameterization and communication via optional bidirectional remote control or C module with the necessary app. Optionally for battery operation with battery compartment including 6 V lithium battery (CR-P2) per fitting, for installation below the washbasin, or for separate power supply via power supply unit 6.75 V/12 V DC or AQUA 3000 open system accessories.

    Battery compartment including battery or power supply unit with extension cable must be ordered separately.

    Özellikler
    • with backflow preventer no
      compatible A3000 open yes
      default automatic hygiene flushing 24h after the last activity
      depressurised no
      with filter yes
      functional principle electronic self-closing
      hygiene flushing yes
      diameter nominal DN 15
      inlet size G 3/8
      locking mechanism Top section, non-ceramic
      material fitting stainless steel
      minimum flow pressure 1 bar
      type of mixing no
      parameterization remote control
      pop-up waste set no
      power supply connection 6,75 / 12 V DC / A3000 open
      position of power connection from bottom
      type of power supply other
      with rosettes/cover plate no
      protective shutdown yes
      sound insulation no
      spout fixed
      surface finish fitting brushed
      surface treatment fitting brushed
      temperature limit no
      thermal disinfection no
      with transformer/power supply no
      type of mounting tap hole
      type of operation sensor operation
      type of sensor opto-electronic sensor
      type of tap pillar tap
      water connection hose (gland nut)
      accent colour none
      basic colour stainless steel-look
    Teknik özellikler
    • Benzersiz ref.3600001258
    • Ürün ailesiTaps
    • Ürün grubuElectronic taps
    • TipObje (Tekil Nesne)
    • Yayınlanma tarihi2025-06-10
    • Baskı numarası1
    • Yükseklik (mm)295
    İlgili
    • Ana malzemePaslanmaz Çelik
    • Tasarım yeriAlmanya
    • Üretim yeriAlmanya
    • Ağırlık net (Kg)2.3
    Sınıflandırma
    • BIMobject kategorisiHijyenik - Musluklar/ Bataryalar
    • Uniclass 2015 koduPr_40_20_87_98
    • Uniclass 2015 açıklamasıWashbasin taps
