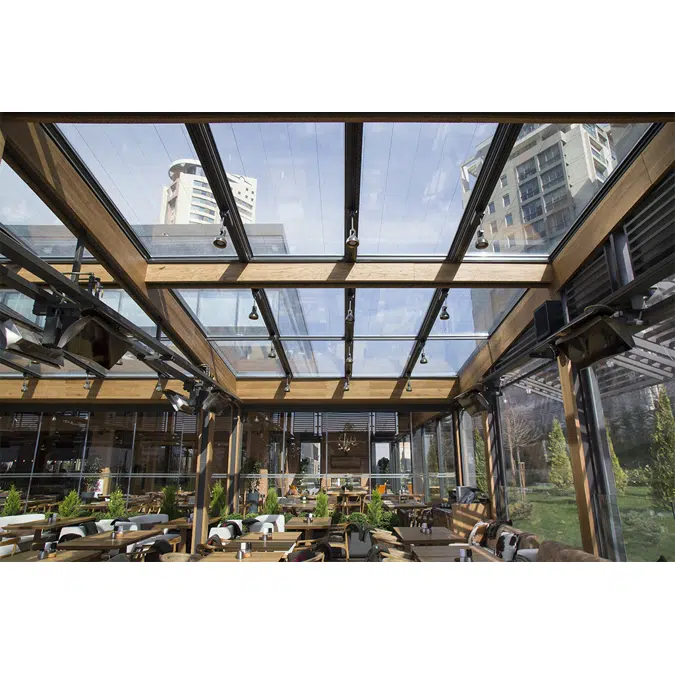

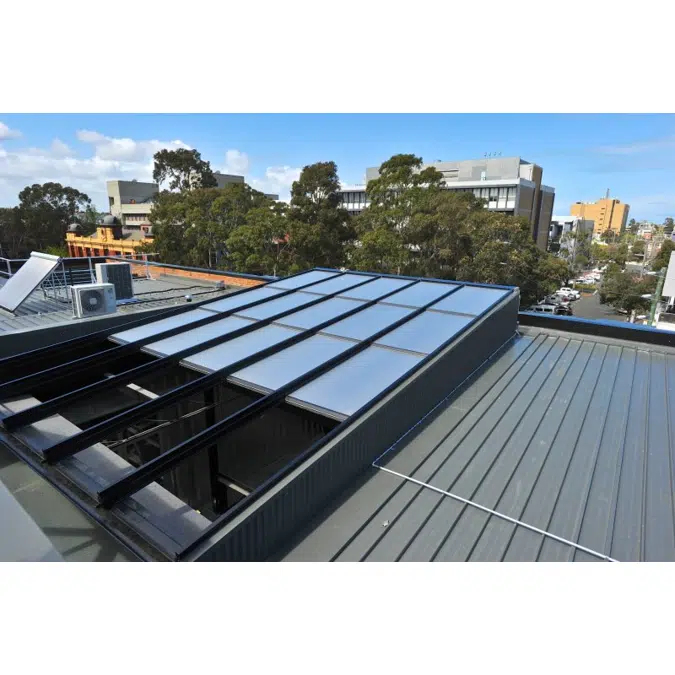

    SolaGlide insulated retractable skylight systems represent a paradigm shift in retractable roofing. This system offers unprecedented versatility, with single-pitched projections up to 11 m and unlimited widths. Smooth motorization offers elegant retraction of the glass panels, neatly stacking them to the ridge or down to the eaves, maximizing the potential for both insulated shelter and airy openness.

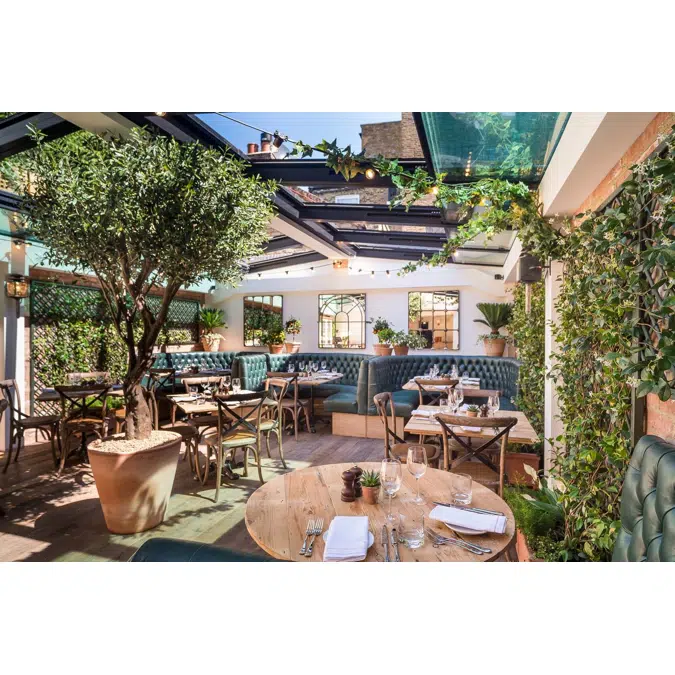

    Restaurant and cafe owners, make sure your clients have the pleasure of natural lights all the time and your outdoor seating is always revenue producing, no matter what the weather throws at you. Don’t leave your customers in the dark with fabric or solid roofing!

    Solaglide system is designed to provide excellent thermal and weather insulation for all climates. Thermally-broken mullions, insulated glass panels and structurally bonded to frames with extensive weather sealant components assure you safety and comfort. Main mullions, frames, gutters are manufactured from electrostatically baked-on power painted aluminum profiles. Guarantee maintenance free operation for many years.

    With motorized operation, solaglide can be combined with Panora Windows and Doors to provide insulated enclosure with flexible options for ventilation and access.


    Özellikler
    • SolaGlide RRG / Insulated Retractable Skylight System

      • Ideal where design flexibility, excellent weather and thermal performance is of importance
      • Manufactured from three base models to meet site specific requirements and the end user’s needs.
        • 75% retraction opening up
        • 66% retraction opening up
        • 66% retraction opening down
      • with single-sloped projections up to 11 m, with double-sloped projections up to 22 m and unlimited widths.
      • The slope can be between 5° and 20°.
      • Hidden Drive System built into the main mullions, provides protection from the environment and eliminates unsightly chains, cables, motor and similar drive components
      • Tubular or industrial motor options
      • Thermally broken mullions eliminate surface sweating and increase energy efficiency.
      • Up to 32mm IG glazing thickness is suitable for insulated glass, enabling 1.1 Ug
      • Wall control, remote control or connection to building automation system.

      Please contact LIBART for the technical detail about Libart SolaGlide Retractable Skylight Systems.

    Teknik özellikler
    • Benzersiz ref.RRG
    • Ürün ailesiSolaGlide Retractable Skylight Systems
    • Ürün grubuRRG 66%
    • Tipİnşaat Malzemesi
    • Yayınlanma tarihi2023-08-16
    • Baskı numarası1
    İlgili
    • Ana malzemeAlüminyum
    • İkincil malzemeCam
    • Tasarım yeriKanada
    • Üretim yeriBirleşik Devletler
    Sınıflandırma
    • BIMobject kategorisiPencereler - Skylights
    • IFC sınıflandırmasıÇatı
    • ETIM KoduEC003112
    • ETIM AdıSkylight
    • Uniclass 2015 koduPr_30_59_72_77
    • Uniclass 2015 açıklamasıSkylights
    • CSI MasterFormat 2014 kodu08 60 00
    • CSI MasterFormat 2014 başlığıRoof Windows and Skylights
    • OmniClass numarası23-17 17 00
    • OmniClass başlığıSkylights
