Lumaris Tapelight

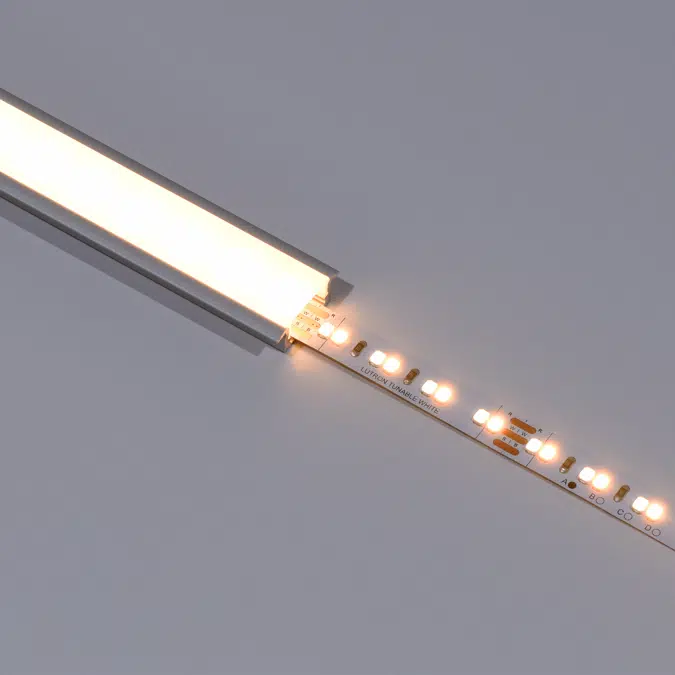

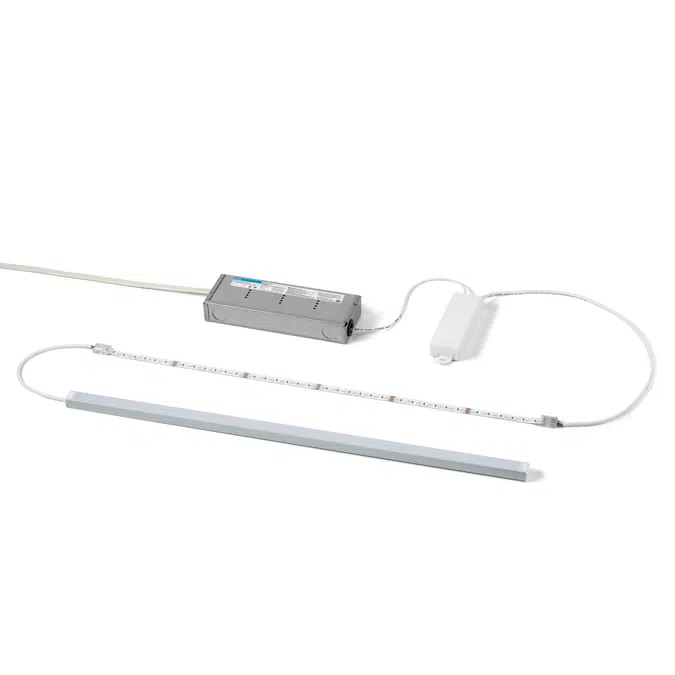

Lumaris tape light is the essential solution for offering a simple and seamless way to add accent lighting to virtually any lowprofile application. A complete tape light solution consists of field-cuttable LED tape, a wireless controller with integrated LED drivers, high-reliability punch connectors, dedicated wiring, and a power supply or interface. For an added level of quality, install the tape light inside Lutron LED tape extrusions. Tape lights are offered in 16.4 ft (5 m) and 98.4 ft (30 m) spools to complete any lighting design project.

FEATURES

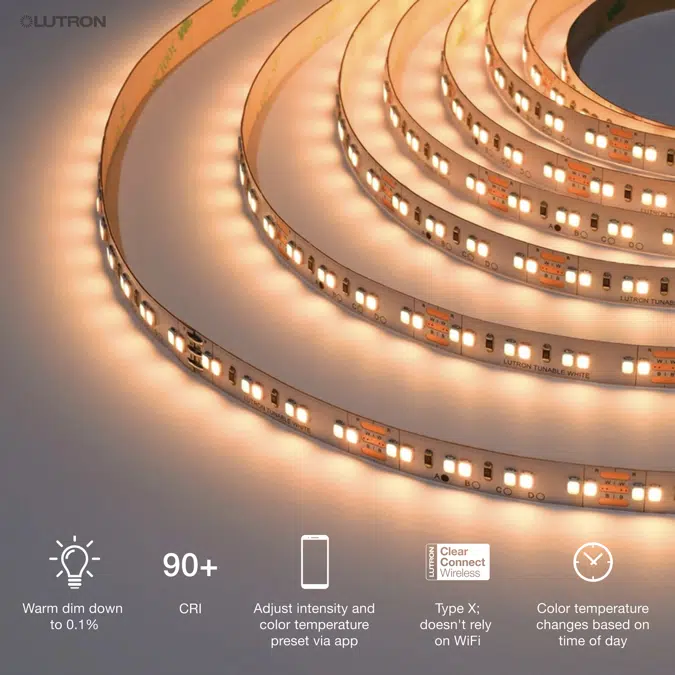

• 1800 K – 4000 K tunable white light

• Continuous, flicker-free dimming from 100% down to 0.1% of measured light output • Seamless integration with HomeWorks QSX, RadioRA 3, Athena, and myRoom XC systems

• User-programmable intensity and color temperature presets, including warm dim to mimic the dimming curve of an incandescent lamp

• Ability to automatically change color temperature based on time of day

Özellikler

Optical Performance
CCT Range 1800 K - 4000 K
CRI R9 >90 from 1800 K to 4000 K (1800 K R9>60, 4000 K R9>90)
Lumen Maintenance 50,000 hours to L70 at 25 °C
Dimming Range 0.1% - 100%
Environmental
Ambient Temperature 32 °F to 104 °F (0 °C to 40 °C)
Humidity 0% to 95% non-condensing
Location UL Indoor damp/dry location Wardrobe closet rated
Certification cULus listed for USA & Canada, RoHS, FCC Class B, ICES-005, Title 24 [JA8], CE, UKCA
Warranty
Limited Warranty www.lutron.com/warranty or call 1.844.LUTRON1 for a printed copy. The warranty will not cover issues caused by use of incompatible devices (including non-Lutron LED tape and/or power supplies).
Mechanical
Mounting Options Strong VHB adhesive backing Lutron LED Tape Extrusions
Dimensions
Tape Length All tapes available in 16.4 ft (5 m) and 98.4 ft (30 m) reels
Cuttable Section Tunable White (TW): 2 in (50.8 mm) RGB + TW: 4 in (101.6 mm)
Tape Width Tunable White: 0.39 in (10 mm) RGB + TW: 0.47 in (12 mm)
Tape Height All: 0.6 in (1.53 mm)
Electrical
Voltage 24 V
Power Consumption Tunable White: 1.9 W/ft (6.3 W/m) RGB + TW: 2.9 W/ft (9.6 W/m)
Maximum Tape Length per 96 W Power Interface Tunable White: 49.2 ft (15 m) RGB + TW: 32.8 ft (10 m)
