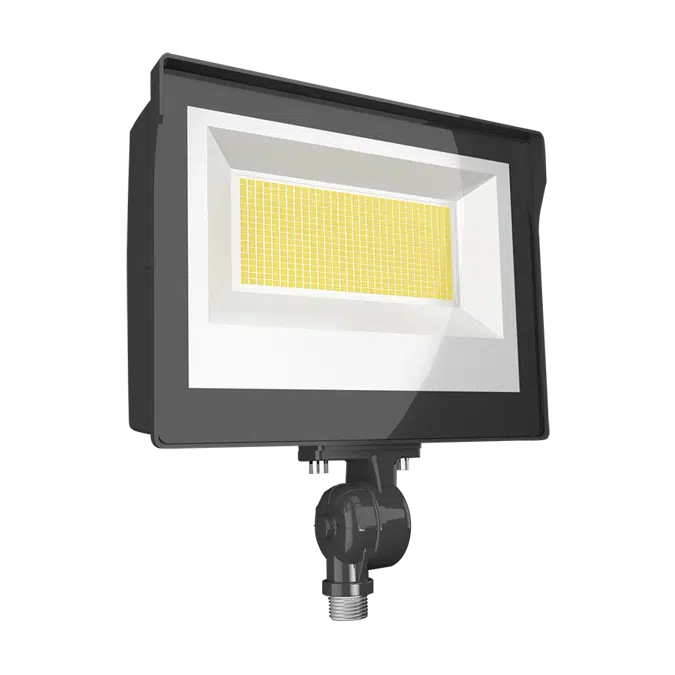

X17 Ultra-Economy Floodlight

KEY FEATURES

X17 Ultra-economy floodlight comes in three different types:
- (A) 3-way adjustable:
  - Selectable CCT: (3000K/4000K/5000K)
  - Selectable wattages: 15W/25W/35W, 30W/50W/60W, 40W/60W/80W
  - 50W/75W/105W, 70W/100W/140W, 100W/150W/205W, 175W/250W/330W
  - Selectable photocell that can be turned on and off
- (B) 2-way adjustable:
  - Selectable CCT: (3000K/4000K/5000K)
  - Available wattages: 15W, 35W, 60W, 80W, 105W & 140W
  - Selectable photocell that can be turned on and off
- (C) Power Adjustable:
  - Selectable wattages: 250W/350W/450W
  - Available CCT: 4000K & 5000K
  - Standard twist-lock photocell
Voltage ratings: 120-277V. 480V only available from 140W-450W.
Suitable for wet locations

Özellikler

- COMPLIANCE
  - UL Listed
  - Suitable for wet locations
  - DLC Listed
    DLC Premium listed
  - IP Rating
    Ingress protection rating of IP65 for dust and water
- PERFORMANCE
  - Lifespan
    100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  - LED CHARACTERISTICS
    LEDs
    Long-life, high-efficacy, surface-mount LEDs
    Color Uniformity
    RAB's range of Correlated Color Temperature follows the guidelines of the American National Standards for Specifications for the Chromaticity of Solid State Lighting (SLL) Products, ANSI C78.377-2017.
- CONSTRUCTION
  - Cold Weather Starting
    Minimum starting temperature is -40°C (-40°F)
  - Maximum Ambient Temperature
    Suitable for use in up to 40°C (104°F)
  - Housing
    Precision die-cast aluminum
  - Mounting
    Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments. (Available only on 15W to 80W models)
    Slipfitter with 180° pivot available for mounting on 2 3/8" tenon.
    Heavy-duty Trunnion mount with stainless steel hardware.
  - Lens
    Tempered glass
  - Reflector
    Polycarbonate
  - Green Technology
    Mercury and UV free. RoHs-compliant components.
  - Finish
    Formulated for high durability and long-lasting color.
  - NEMA Beam
    NEMA Beam Spread of 7H x 7V
- ELECTRICAL
  - Drivers (3-way adjustable)
    Constant Current, Class 2, 120-277V, 50/60 Hz
    35W: 120V: 0.35A, 208V: 0.20A, 240V: 0.16A, 277V: 0.14A
    60W: 120V: 0.60A, 208V: 0.35A, 240V: 0.30A, 277V: 0.25A
    80W: 120V: 0.80A, 208V: 0.50A, 240V: 0.40A, 277V: 0.35A
    105W: 120V: 0.87A, 208V: 0.60A, 240V: 0.50A, 277V: 0.38A
    140W: 120V: 1.17A, 208V: 0.75A, 240V: 0.65A, 277V: 0.54A
    205W: 120V: 1.77A, 208V: 1.10A, 240V: 0.79A, 277V: 0.85A
    330W: 120V: 2.79A, 208V: 1.80A, 240V: 1.60A, 277V: 1.21A
    Constant Current, Class 2, 480V, 50/60Hz
    140W: 480V: 0.32A
    205W: 480V: 0.46A
    330W: 480V: 0.73A
  - Drivers (2-way adjustable)
    Constant Current, Class 2, 120-277V, 50/60 Hz
    15W: 120V: 0.15A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
    35W: 120V: 0.35A, 208V: 0.20A, 240V: 0.16A, 277V: 0.14A
    60W: 120V: 0.60A, 208V: 0.35A, 240V: 0.28A, 277V: 0.24A
    80W: 120V: 0.80A, 208V: 0.45A, 240V: 0.40A, 277V: 0.32A
    105W: 120V: 1.00A, 208V: 0.60A, 240V: 0.50A, 277V: 0.42A
    140W: 120V: 1.40A, 208V: 0.75A, 240V: 0.65A, 277V: 0.55A
    Constant Current, Class 2, 480V, 50/60Hz
    140W: 480V: 0.40A
  - Drivers (Power adjustable)
    Constant Current, Class 2, 120-277V, 50/60 Hz
    450W: 120V: 3.67A, 208V: 2.40A, 240V: 2.10A, 277V: 1.64A
    Constant Current, Class 2, 480V, 50/60Hz
    450W: 480V: 0.96A
    Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
